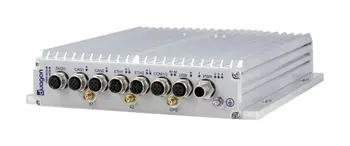

BL51E - Industrial Computer for Transportation with Intel Atom Processor E3900 Series

For IoT or Storage-Intensive Applications

The BL51E is a fanless, maintenance-free box computer for embedded applications in transportation, e.g., in trains, buses or commercial vehicles. Its HDD/SSD shuttle provides the storage capacity necessary for entertainment servers or video surveillance systems. A vast number of I/O functions and options seamlessly link the BL51E to the IoT, making vehicles smart.

A Multi-Talent for Wireless Communication

The BL51E can take over typical on-board wireless functions, whether it is an Internet connection for passengers or locating the vehicle. A GNSS positioning interface is available. Four PCI Express Mini Card slots each with two micro-SIM slots and dual SIM support provide maximum flexibility in implementing mobile service standards up to 4G LTE or WLAN/WLAN IEEE 802.11, and derivates.

Solid Processing Performance

The BL51E is powered by an Intel Atom E3950 running at 1.6 GHz. Other dual/quad core processors of the Intel Atom E3900 series can be used, giving high scalability in CPU performance. The box PC features 8 GB DDR3 SDRAM and offers an SD card and a SATA HDD/SSD shuttle both accessible at the rear, plus in-system eMMC memory.

Fanless Operation for Mobile Applications

The system is designed for fanless operation at temperatures from -40 °C to +70 °C (+85 °C for up to 10 minutes). Its rugged aluminum housing with cooling fins serves as a heat sink for the internal electronics and provides conduction cooling.

A Multitude of I/O

The BL51E supports two DisplayPort interfaces with maximum 4K resolution, four Gigabit Ethernet, two with PoE+ capability, two USB 2.0, legacy serial I/O (RS232) and CAN bus, general purpose inputs and relay outputs.

Railway-Compliant PSU with Ignition Function

The BL51E has a class S2 wide range power supply in compliance with EN 50155 and prepared for ISO 7637-2 (E-mark for automotive). Standard versions support 30 W with 24 V DC nom. (10 V to 50.4 V), 110 V DC nom. is available as an option. Power can be switched on and off using an ignition signal on the power connector, and a run-down time after switching off the ignition signal can be adjusted by software.

Long-Term Available and Future-Safe

Long-term availability until 2027 ensures an extended product life and future-safety.

Features

  • Intel Atom E3900 series
  • Up to 8 GB DDR3 DRAM soldered, ECC
  • 1 HDD/SSD shuttle
  • 4 Gb Ethernet ports
  • 4 PCI Express Mini Card slots with micro-SIM slots
  • WLAN, 4G LTE, GPS or GLONASS
  • 2 USB 2.0, 2 DisplayPort, 1 CAN, 4 UARTs
  • 24 and 36 VDC nom. class S2 PSU, with ignition
  • -40 °C to +70 °C (+85 °C), fanless
  • Conformal coating of internal components
  • EN 50155 compliant (railways)
  • Prepared for ISO 7637-2 (E-mark for automotive)

Specifications

CPU
The following CPU types are supported:
  • Intel Atom x5-E3930, 2 cores, 2 threads, 1.3 GHz, 1.8 GHz Turbo Boost, 6.5 W, 2 MB cache
  • Intel Atom x5-E3940, 4 cores, 4 threads, 1.6 GHz, 1.8 GHz Turbo Boost, 9.5 W, 2 MB cache
  • Intel Atom x7-E3950, 4 cores, 4 threads, 1.6 GHz, 2.0 GHz Turbo Boost, 12 W, 2 MB cache
Memory
System RAM
  • Soldered DDR3, ECC
  • 8 GB max.
Security
Trusted Platform Module 2.0
Mass Storage
  • eMMC (soldered); 32 GB
  • The following mass storage devices can be assembled:
    • SSD/HDD 2.5" (SATA)
    • SD card
Graphics
  • Processor graphics
  • Maximum resolution: 4096 × 2160 pixels @ 60 Hz, 24 bpp (DisplayPort 1.2a)
Wireless Functionality
Possible functions:
  • GNSS
  • LTE
  • WLAN
Power Over Ethernet
  • PSE (Power Sourcing Equipment)
  • Supply classes 0, 1, 2, 3, 4
  • Number of ports: 2
  • Total power available: 30.8 W
Interfaces
  • This product includes interface options
    • Different wireless functions depending on assembled wireless interface cards
    • Variable I/O in cutouts
  • SSD/HDD slot
    • 1 × SATA 2.5"; SATA Revision 2.x; externally accessible
  • SD/microSD card slot
    • 1 × SD card; UHS-I (104 MB/s (SDR104)); externally accessible
  • Video
    • 2 × DisplayPort 1.2
  • Audio
    • 1 × D-Sub, 9-pin, plug
    • S/PDIF output
    • Stereo line input, single-ended
    • Stereo line output, differential
  • USB
    • 2 × USB 2.0, Type A
  • Ethernet
    • 4 × 10/100/1000BASE-T, M12, X-coded, receptacle
  • Wireless
    • GNSS antenna connector: 1 × SMA receptacle
  • PCI Express Mini Card
    • 4 × PCI Express Mini Card slot
    • Slot 1: PCIe Full-Mini; PCIe x1, USB 2.0
    • Slot 2: PCIe Full-Mini; PCIe x1, USB 2.0
    • Slot 3: PCIe Full-Mini; USB 2.0
    • Slot 4: PCIe Full-Mini; USB 2.0
  • SIM card
    • 8 × micro-SIM, internally accessible
  • Digital I/O
    • 2 × relay output, isolated, PCB plug, 6-pin
    • 2 × photocoupler output, isolated, PCB plug, 6-pin
    • 7 × digital input, isolated, PCB plug, 6-pin
    • 1 × odometer input, isolated, PCB plug, 6-pin
  • Serial
    • 1 × RS232, non-isolated, D-Sub, 9-pin, plug
    • 1 × RS422/RS485, isolated, D-Sub, 9-pin, receptacle
  • IBIS
    • 1 × IBIS Slave, isolated, PCB plug, 6-pin
  • CAN bus
    • 1 × CAN non-isolated, D-Sub, 9-pin, plug
  • LED
    • Status: board status (BMC), power status
    • Ethernet: activity, link
    • User configurable: 4 ×
  • Cutout
    • D-Sub options: audio, RS232, RS422, RS485, digital I/O, IBIS Master
    • Antenna connector options: RP-SMA plug, RP-SMA receptacle, QMA plug, QMA receptacle, FME receptacle, FME plug
  • Power
    • 1 × power in, COMBICON, 3-pin, plug
    • Ignition input
  • Earthing connection
    • M4 stud
Supervision and Control
  • Board management controller
  • Watchdog timer
  • Temperature measurement
  • Real-time clock, buffered by supercapacitor (3 days)
Electrical Specifications
  • Supply voltage
    • 24 V DC to 36 V DC nom. (EN 50155)
    • 110 V DC nom. (EN 50155)
    • 24 V DC nom. (ISO 7637-2)
  • Power consumption: 25 W without modems
  • Isolation voltage: 1500 V AC
Mechanical Specifications
  • Dimensions: (W) 390 mm, (D) 215 mm, (H) 66 mm
  • Weight: 4.25 kg approx., 5.5 kg approx. (box PC in 19" insertion frame)
  • Mounting
    • Wall/flat surface
    • Rack in 19" cabinet
  • Cooling: Air cooling, natural convection, airflow 0.4 m/s
  • Protection rating
    • IP20
    • Other IP protection classes possible on request
Product Compliance: Rail - Rolling Stock
  • Operating temperature: -40 °C to +70 °C, +85 °C for 10 min (EN 50155:2017, class OT4, ST1)
  • Storage temperature: -40 °C (EN 50155:2017) to +85 °C (EN 60068-2-2, Bb)
  • Altitude: +3000 m max. (EN 50125-1:2014, class AX)
  • Humidity: +55 °C and +25 °C, 100 % RH max. (EN 50155:2017)
  • Shock: 30 ms @ 50 m/s² (EN 61373:2010/AC:2017-09, vehicle body, cat. 1, class B)
  • Vibration: 10 min @ 2.02 m/s² (functional) and 5 h @ 11.44 m/s² (long-life) (EN 61373:2010/AC:2017-09, vehicle body, cat. 1, class B x 2)
  • Power supply
    • General compliance with power supply requirements of EN 50155:2017
    • Interruption of voltage supply: 10 ms (EN 50155:2017, class S2)
  • Electrical safety
    • EN 50155:2017
    • EN 50153:2014 + A1:2017
    • EN ISO 13732-1:2008
  • Fire protection: EN 45545-2:2013 + A1:2015, HL1
  • EMC emission: EN 50121-3-2:2016
  • EMC immunity: EN 50121-3-2:2016
  • Protective coatings: EN 50155:2017, class PCX (As agreed between user and supplier)
Product Compliance: Road Vehicle
  • Fire protection: ECE R118 Rev.2 + Amend.1
  • EMC emission: ECE R10 Rev.5
  • EMC immunity: ECE R10 Rev.5
Product Compliance: Radio Equipment
EMC basic compliance: The product is prepared to comply with the Radio Equipment Directive 2014/53/EU (RED). Standards compliance depends on the assembled radio (wireless) device.
Reliability
186 024 h predicted @ 40 °C according to IEC/TR 62380 (RDF 2000)
BIOS/Boot Loader
AMI Aptio UEFI Firmware
