SA3 - RS232 Interface Adapter

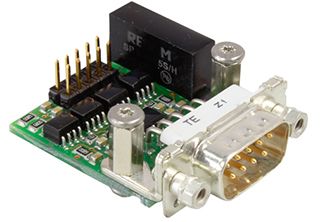

The SA3 is a 1-channel RS232 interface adapter with optical isolation.

SA-Adapters are small universal boards providing the physics for legacy serial I/O, fieldbus interfaces and other small I/O functions. One serial line is provided per adapter, which can be plugged directly to the CPU board as a mezzanine. Alternatively, the adapter can be connected to the front panel via ribbon cable. The SA concept allows to add additional I/O interfaces to many of MEN's CPU boards, enhancing flexibility with regardto the line transceivers and isolation requirements. Whether a specific SA-Adapter (or a mix of different SA-Adapters) fits on a specific CPU board is determined by a combination of mechanical, performance, FPGA and operating system criteria and needs tobe verified for every board configuration requested.

Features

  • 1 RS232 channel
  • Optically isolated
  • Shielded 9-pin D-Sub connector

Specifications

Universal Concept
  • 2 data lines
  • Up to 2 handshake signals
  • 2 power supply lines
Interface Type
RS232, optically isolated
Interface Compliance
  • DIN 66020/66022
  • CCITT V.24
Peripheral Connections
Via front panel on a shielded 9-pin D-Sub plug connector
Installation
  • As a piggy-back board directly on a CPU board
  • Via ribbon cable
Electrical Specifications
  • Isolation voltage:
    • 500V DC
    • Voltage between the connector shield and isolated ground is limited to 180V using a varistor; AC coupling between connector shield and isolated ground through 47nF capacitor
  • Supply voltage/power consumption: +5V (4.85V..5.25V), 50mA typ.
  • MTBF: 860,000h @ 50°C (derived from MIL-HDBK-217F)
Mechanical Specifications
  • Dimensions: 32mm x 42mm
  • Weight: 16g
Environmental Specifications
  • Temperature range (operation):
    • 0..+60°C up to -40..+85°C
    • Airflow: min. 10m³/h
  • Temperature range (storage): -40..+85°C
  • Relative humidity (operation): max. 95% non-condensing
  • Relative humidity (storage): max. 95% non-condensing
  • Altitude: -300m to + 3,000m
  • Shock: 15g/11ms
  • Bump: 10g/16ms
  • Vibration (sinusoidal): 2g/10..150Hz
  • Conformal coating on request
Safety
PCB manufactured with a flammability rating of 94V-0 by UL recognized manufacturers
EMC
Tested according to EN 55022 (radio disturbance), IEC 61000-4-2 (ESD) and IEC 61000-4-4 (burst)
