Features
- 4 current or voltage outputs
- 16 bits resolution
- 8.5 µs max. acquisition/conversion time
- +/-0.1% accuracy
- Simultaneous channel update
- Synchronization with external trigger
- Electrical isolation
- -40 °C to +85 °C

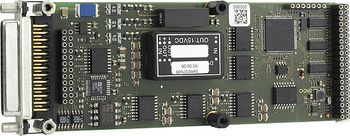

M37N - Mezzanine Card with 4 Analog Outputs, 16 Bits
The mezzanine card M37N is a high-precision M-Module with four analog voltage, or alternatively current output channels for very fast signals. The output voltage range for each channel is -10 to +10 V. The current outputs are separately available and canbe used as 0 to 20 mA outputs. The M-Module comes with 16 bits resolution at an ultra-high voltage accuracy of +/-0.1% which is valid for the complete temperature range from -40 to +85°C. Beyond that it is optionally possible to even extend these values by additional calibration.
The M37N supports a load resistance of 600 Ohms and more. The isolated supply voltages can be generated on the board by two low-noise DC/DC converters. The output load is driven to ground.
The M37N is designed for a large range of applications, for example in an automated test environment, in process control systems or for sensor measurements.
The M37N is based on the M-Module ANSI mezzanine standard. It can be used as an I/O extension in any type of bus system, i.e. CPCI, VME or on any type of stand-alone SBC. Appropriate M-Module carrier cards in 3U, 6U and other formats are available from MEN or other manufacturers.
Specifications
- D/A Conversion
- 4 channels current or voltage output
- 16 bits
- Conversion time of D/A converter: <10.5µs
- Time between trigger activation and new valid output voltage: <20µs
- Output linearity: ±1LSB
- Simultaneous updating of all channels
- Synchronization with external trigger
- Electrically isolated (500V DC isolation)
- Voltage Output
- Output current: ±6mA max.
- Accuracy: ±0.1% (for whole temperature range)
- Voltage range: -10V..+10V
- Current Output
- Accuracy: ±0.5% (for whole temperature range)
- Current range: 0..20mA
- Max. load resistance: 600 Ohm (or higher with external power supply)
- Peripheral Connections
- Via front panel on a shielded 25-pin D-Sub receptacle connector
- Via carrier board (rear I/O)
- M-Module Characteristics
- A08, D16, INTA, IDENT
- Electrical Specifications
- Isolation voltage: 500V DC
- Supply voltage/power consumption:
- Through M-Module-carrier with onboard DC/DC converter: +5V (4.85V..5.25V), 270mA typ., 620mA max.
- Optional supply current for current transmitters 100 mA typ.
- MTBF: 1,012,625h @ 40°C according to IEC/TR 62380 (RDF 2000)
- Mechanical Specifications
- Dimensions: conforming to M-Module Standard
- Weight: 90g
- Environmental Specifications
- Temperature range (operation):
- -40..+85°C
- Airflow: min. 10m³/h
- Temperature range (storage): -40..+85°C
- Relative humidity range (operation): max. 95% non-condensing
- Relative humidity range (storage): max. 95% non-condensing
- Altitude: -300m to + 3,000m
- Shock: 15g/11ms (according to EN60068-2-27)
- Bump: 10g/16ms (according to EN60068-2-29)
- Vibration (sinusoidal): 2g/10..150Hz (according to EN60068-2-6)
- Conformal coating on request
- Temperature range (operation):
- Safety
- PCB manufactured with a flammability rating of 94V-0 by UL recognized manufacturers
- EMC
- Tested according to EN55022 Class A (radio disturbance), EN61000-4-2 (ESD) and EN61000-4-4 (burst)
- Software Support
- MEN Driver Interface System (MDIS for Windows, Linux, VxWorks, QNX)
- For more information on supported operating system versions and drivers see Software.
