GP3 - 4-Port Gigabit Copper Ethernet Line Card with PoE

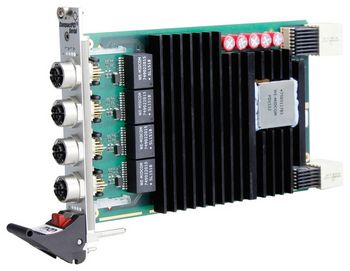

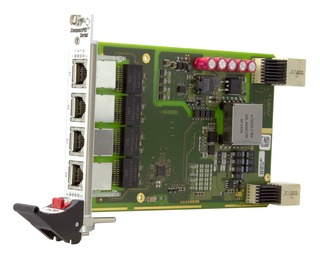

The GP3 is a 3U Gigabit Ethernet PHY line card, with optional PoE support, implemented as a CompactPCI Serial board. It occupies one peripheral slot using a 4 HP front panel with four Gigabit Ethernet ports on M12 X-coded connectors. Alternatively, the GP3 can be supplied with four RJ45 connectors on the front panel.

The GP3 is designed to work in combination with the G101 CompactPCI Serial managed industrial Ethernet switch.

The GP3 features four connectors on the front panel, which can be used to create 4 ports of copper Gigabit Ethernet. In addition, the card can act as Power over Ethernet (PoE) Power Sourcing Equipment (PSE), supplying other devices on all ports with power. Each interface supports a data transfer rate of 1 Gbit/s, and provides two LEDs to indicate the link and activity status.

The GP3 operates with a primary voltage supply of +12 V, which is provided via the rear CompactPCI serial connector. All additional required voltages are generated onboard. It is fully compliant with the EN 50155 railway standard, qualified for a -40 to +85°C operation temperature and ready for coating.

Features

  • 4 Gigabit Ethernet on M12 X-coded connectors
  • Power over Ethernet (PoE+) PSE (all ports)
  • LEDs for link and activity status
  • -40 to +85°C (screened)
  • EN 50155 classTx (railways)
  • PICMG CPCI-S.0 CompactPCI Serial peripheral card (limited mechanical compliance)
  • IEEE 1588v2 support (optional)

Specifications

Key Features
  • Four 10/100/1000BASE-T ports at front panel
    • One common isolation group when PoE PSE is installed
  • Optional PoE(+) Power sourcing support
Supported Protocols and Standards
  • IEEE 1588v2 optional
  • IEEE 802.3 Standard
  • Power over Ethernet support (IEEE 802.3 Section 2, Type 1 and 2 - classes 0, 1, 2, 3, 4)
  • EEE (Energy Efficient Ethernet)
Power Over Ethernet Features
Power over Ethernet functions on all ports
  • PSE (Power Sourcing Equipment) function
  • Supports supply classes 0 to 4
  • Supplies up to four powered devices (up to 60 W total)
Front Interfaces
  • Ethernet
    • Four M12 X-coded connectors, 1000BASE-TX (1 Gbit/s)
    • Power over Ethernet PSE
  • Status LEDs
    • Two LEDs per channel
    • Signal link status
    • Signal link activity
Rear Interfaces
  • Serial GPIO (SGPIO)
  • Quad Serial Gigabit Interface (QSGMII)
Backplane Standard
CompactPCI Specification PICMG CPCI-S.0
  • Peripheral slot with extensions (QSGMII)
Supervision and Control
  • BITE Voltage Supervision
  • PoE Voltage monitoring
Electrical Specifications
  • Supply voltages
    • +12 V (±3%)
  • Power consumption
    • 5 W without PoE support, 85 W max. with 60 W PoE
Mechanical Specifications
  • Dimensions: 3U, 4 HP
  • Weight: 152 g
Environmental Specifications
  • Temperature range (operation):
    • -40°C to +85°C
    • Airflow 1.5m/s
  • Temperature range (storage): -40°C to +85°C
  • Relative humidity (operation): max. 95% non-condensing
  • Relative humidity (storage): max. 95% non-condensing
  • Altitude: -300 m to +2000 m
  • Shock: 50 m/s², 30 ms
  • Vibration (Function): 1 m/s², 5 Hz to 150 Hz (EN 61373)
  • Vibration (Lifetime): 7.9 m/s², 5 Hz to 150 Hz (EN 61373)
  • Conformal coating on request
Reliability
MTBF: tbd h @ 40°C according to IEC/TR 62380 (RDF2000)
Safety
  • Flammability (PCBs)
    • UL 94 V-0
  • Electrical Safety
    • EN 50155 (Insulation)
    • EN 50155 (Voltage)
EMC
  • EN 55022 (radio disturbance)
  • EN 61000-4-2 (ESD Immunity)
  • EN 61000-4-4 (burst)
