13MD05-90 - MDIS5 System Package (duagon) for Linux

The 13MD05-90 MDIS5 system package includes most standard device drivers for Linux available from duagon.

• Übersicht
• Spezifikationen
• Software
• Dokumentationen
• ...

• Spezifikationen
• Software
• Dokumentationen

Übersicht

13MD05-90

MDIS5 System (and Device Driver) Package (duagon) for Linux. This software package includes most standard device drivers available from duagon.

Dateiname: 13md05-90.zip| Veröffentlicht: 26. April, 2021

ZIP| 14 MB

Sha1-Checksumme: 2ca97e994170196729efec8858b63652b77df600

Lizenz-Informationen

Verschiedene Lizenzen (können Open-Source-Software enthalten)

Kosten

Dieser Artikel ist kostenlos

Unterstützte Produkte

04M199-FPGA-based USM Main M-Module

19M199-M-Module USM FPGA Development Kit

04M037NMezzanine Card with 4 Analog Outputs, 16 Bits

02F210-GSM/GPS/UART Interface

19MH70SRugged Data Storage & NAS Computer with Intel Core i3/i5/i7

09BC51MRugged Industrial Box PC with Intel Atom Processor E3900 Series

01A017-Embedded Single Board Computer with PowerPC MPC8548

01A302-128-Channel Binary I/O Card

02F018-Intel Core 2 Duo CPU Board

02F021PEmbedded Single Board Computer with Intel Core i3 / i5 / i7

02G020-Intel Core i7 CPU Board

04M058-Mezzanine Card with 32-bit TTL I/O Interface

04M062NMezzanine Card with 16 Analog Outputs, 15/16 Bits

04M066-Mezzanine Card with 32 Digital Inputs/Outputs

15XM01LESMexpress COM with Intel Atom XL Series

15MM50-ESMini COM with PowerPC MPC512x

04M081-Mezzanine Card with 16 Digital Opto-Relay Outputs

04M082-Mezzanine Card with 16 Digital 20 kHz Inputs

08SC21-Intel Atom SBC for Control of Multiple 10.4" to 21" Displays

08SC24-AMD G-Series SBC for Control of Multiple 12" to 60" Displays

09BC50IRugged Box PC for Industrial Automation with AMD G-Series

09BC50MRugged Box PC for Transportation with AMD G-Series

09BL50SRugged Box PC for Transportation with AMD G-Series

09DC01-Rugged 15" Panel PC

09DC02-Rugged 10.4" Touch Panel PC

15CC10CRugged COM Express Module with ARM i.MX6

15MM02-ESMini COM with Intel Atom E600 Series

04M072-Mezzanine Card with Motion Counter

09BL50WRugged Box PC for Transportation with AMD G-Series

02G215-UART, CAN Bus & Digital I/O Interface Board

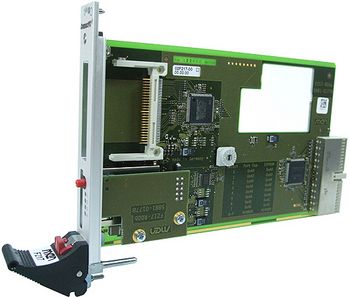

02F217-Memory Card Carrier

08AF02-Shelf Controller for CompactPCI Systems

04M043-8 Relay Outputs

09DC19-Rugged 10.4" Panel PC with Touch Screen

09DC20-Rugged 12.1" Panel PC with Touch Screen

04M051-Mezzanine Card with 4 CAN Bus Interfaces

02F050CPowerPC MPC8548 Conduction Cooled SBC

15EM09AESM COM with PowerPC MPC8548

02F403-Railway I/O Board for Digital I/O

02G403-Railway I/O Board for Digital I/O

04M054-DC Motor Controller

02F019PIntel Core 2 Duo CPU Board

02F206-Octal UART Interface Board

02G229-USB 3.2, UART & M.2 SSD Interface Board

09DC13-Rugged 8.4" Panel PC with Front Keys

02F014-Intel Pentium M CPU Board

15EM09-Embedded System Module COM with MPC8548

15XM02-ESMexpress COM with Intel Core 2 Duo

02F012NPowerPC MPC5200B CPU Board

08EK06NESM Starter Kit with EM1N / MPC5200B COM

09DC17-Rugged 12.1" Panel PC with Touch Screen

15EM01NEmbedded System Module COM with MPC5200B

02G023-Embedded Single Board Computer with Intel Core i3 / i5 / i7

02F075PVital Embedded Single Board Computer, 3 Intel Atom E6xx

17PU05-Power Supply Unit, 110 VDC, 100 W

17PU06-Power Supply Unit, 24 VDC, 100 W

17PU08-Power Supply Unit, 36 VDC, 100 W

09BC50FRugged Box PC for Industrial Automation with AMD G-Series

09BC50RRugged IP65 Box PC for Transportation with AMD G-Series

19MH50Cduagon SAFE CONTROL Vital System Controller

19MH70RMain Server with Intel Xeon D for Railway Data Center

04M043NMezzanine Card with 8 Relay Outputs

02F405-Railway I/O Board - Data Acquisition & Control

04M077NMezzanine Card with 4 UARTs

01A025-Embedded Single Board Computer with Intel Xeon D

17PU04-Power Supply Unit, 72 to 110 VDC, 35 W

17PU03-Power Supply Unit, 36 to 48 VDC, 35 W

02F215-UART, CAN Bus & Digital I/O Interface Board

02F218-Embedded Slave CPU Board with PowerPC MPC8314

02F223-Wireless Network Board for 2 PCIe and 2+16 SIM Cards

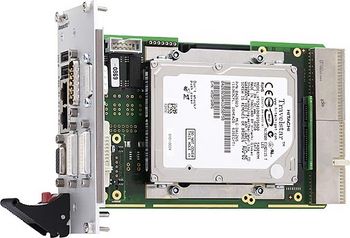

02F600-Side Card for SATA/Legacy I/O

02F601-Side Card for Multimedia

04M036NMezzanine Card with 8/16 Analog Inputs, 16 Bits

08SC27-Intel Atom SBC for Control of 7" to 15" Displays

15MM01-ESMini COM with Intel Atom

15P598-Conduction-Cooled FPGA-based USM Main PMC

15P599-FPGA-based USM Main PMC

15PP04-PCI-104 COM Module with MVB Interface

02F011SIntel Atom CPU Board

02F023PEmbedded Single Board Computer with Intel Core i3 / i5 / i7

01A020-2eSST Intel Core 2 Duo CPU Board

01A021BEmbedded Single Board Computer, QorIQ P1xxx, M-Modules

01A021CEmbedded Single Board Computer, QorIQ P1xxx, PMC/XMC

02F216-High-Speed Octal UART Interface Board

02G022-Embedded Single Board Computer with Intel Core i3 / i5 / i7

04M011-Mezzanine Card with 16-bit TTL I/O Interface

04M027-Mezzanine Card with 16 Digital Outputs, Low-Side Switching

04M028-Mezzanine Card with 16 Digital Outputs, High-Side Switching

04M031-Mezzanine Card with 16 Digital Inputs, High-Side Switching

04M032-Mezzanine Card with 16 Digital Inputs, Low-Side Switching

04M033-Mezzanine Card with 8 Analog Outputs, 12 Bits

01A014CMPC8540 CPU Board

19MH70IRugged Industrial PC with Intel Core i3 / i5 / i7

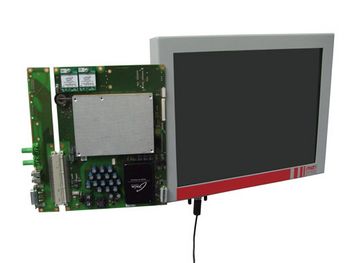

08XC02-ESMexpress COM Carrier Board for Intelligent Displays

09BL70SRugged Box PC for Transportation with Intel Core i3 / i5 / i7

09BL70WRugged Box PC for Transportation with Intel Core i3 / i5 / i7

15CB70CRugged COM Express Module with Intel Core i3 / i5 / i7

15P506-Quad CAN Bus Interface PMC

15P511-Dual Fast Ethernet PMC

17PU02-Power Supply Unit, 24 VDC, 35 W

02F206NNios II Slave Board

15CC10SARM i.MX 6 SBC for Control of Multiple 7" to 15" Displays

09DC15-Rugged 10.4" Panel PC with Front Keys or Touch Screen

09BL51EIndustrial Computer for Transportation with Intel Atom Processor E3900 Series

04M035NMezzanine Card with 8/16 Analog Inputs, 14 Bits

Spezifikationen

Supported Operating System

• Ubuntu
• CentOS
• Debian

Supported Kernel Versions

• 3.16
• 4.4
• 4.9
• 4.14
• 4.19
• 5.4
• 5.10

Supported Hardware Architectures

• Development host
  • x86 (32-bit)
  • x64 (64-bit)
• Target system
  • x86 (32-bit)
  • x64 (64-bit)

Tested Linux Versions

• Functional Tests
  • Ubuntu 18.04.03 LTS 5.0.0-23 x64
  • Ubuntu 18.04.03 LTS 4.15.0-60 x86
  • Ubuntu 20.04 LTS 5.4.0-26 x64
  • Cent OS 7.8 3.10.0-1127 x64
  • Cent OS 8.2 4.18.0-193 x64
  • Debian 10.5 4.19.0-10 x64
  • Debian 10.5 4.19.0-10 x86
  • Debian 10.6 4.19.0-13 x64
  • Debian 10.6 4.19.0-13 x86
  • Yocto (sumo) 4.15.18 x64
• Compilation Tests
  • Ubuntu 20.04 LTS 3.16.85 x64
  • Ubuntu 20.04 LTS 4.4.252 x64
  • Ubuntu 20.04 LTS 4.9.252 x64
  • Ubuntu 20.04 LTS 4.14.216 x64
  • Ubuntu 20.04 LTS 4.19.168 x64
  • Ubuntu 20.04 LTS 5.4.90 x64
  • Ubuntu 20.04 LTS 5.10.8 x64
  • Ubuntu 20.04 5.6.19 x64
  • Debian 10.5 3.16.85 x86
  • Debian 10.5 4.4.252 x86
  • Debian 10.5 4.9.252 x86
  • Debian 10.5 4.14.216 x86
  • Debian 10.5 4.19.168 x86
  • Debian 10.5 5.4.90 x86
  • Debian 10.5 5.6.19 x86
  • Debian 10.5 5.10.8 x86

Content

• Linux binaries:
  • mdiswiz: MDIS Wizard, a graphical tool for the creation of the MDIS configuration for target systems
  • fpga_load: command line tool to update duagon FPGAs
• Linux specific C sources of:
  • MDIS core components (kernel modules, user libraries)
  • VME4L kernel driver, for VMEbus support (for duagon A12, A15, A17, A19, A20, B11)
  • SMB2BB kernel driver, for SMBus support
  • Kernel drivers which use MDIS internal interfaces (e.g. network, display and UART)
• OS independent C sources of:
  • BBIS (Base Board Handler) drivers (e.g. for M-Module carriers, Chameleon FPGAs)
  • Low-level drivers

Documentation

PDF user manual available as a separate download

Haupt-Software

13MD05-90

MDIS5 System (and Device Driver) Package (duagon) for Linux. This software package includes most standard device drivers available from duagon.

Dateiname: 13md05-90.zip| Veröffentlicht: 26. April, 2021

ZIP| 14 MB

Sha1-Checksumme: 2ca97e994170196729efec8858b63652b77df600

Zugehörige Software

13p7c9-06

MDIS5 low-level driver sources (MEN) for F223

Dateiname: 13p7c9-06.zip| Veröffentlicht: 13. August, 2013

ZIP| 63 KB

Sha1-Checksumme: 560d6b75eaf2fe7649ae76e247eb16961773bc9c Details

13pp04-06

MDIS5 low-level driver sources (MEN) for PP4

Dateiname: 13pp04-06.zip| Veröffentlicht: 24. Juli, 2015

ZIP| 107 KB

Sha1-Checksumme: 06775acab63df6a78e34560934c2417c469935f0 Details

13z050-06

MDIS5 low-level driver sources (MEN) for 16Z050_BIO

Dateiname: 13z050-06.zip| Veröffentlicht: 28. April, 2017

ZIP| 75 KB

Sha1-Checksumme: db93e0ccd3879c246203fa8e1ee5898697d40b70 Details

13z061-06

MDIS5 low-level driver sources (MEN) for 16Z061_PWM

Dateiname: 13z061-06.zip| Veröffentlicht: 10. Juli, 2009

ZIP| 64 KB

Sha1-Checksumme: 5cad2786e675b4f7668ce4fefdf5a07b10bd0177 Details

13z073-06

MDIS5 low-level driver sources (MEN) for 16Z073_QDEC

Dateiname: 13z073-06.zip| Veröffentlicht: 21. April, 2010

ZIP| 100 KB

Sha1-Checksumme: c524b5b4c7c8813027a01bf1e1985ea90e2e8d60 Details

13z075-06

MDIS5 low-level driver sources (MEN) for 16Z075_SPEED

Dateiname: 13z075-06.zip| Veröffentlicht: 22. April, 2010

ZIP| 97 KB

Sha1-Checksumme: 5fe0ef3fb9c62ba0426f73b9fe98eabb42f02546 Details

Dokumentation

MDIS Overview
(PDF, 460 KB) MDIS5 under Linux User Manual
(PDF, 2 MB) MDIS5 Developer Guide
(PDF, 511 KB)
