DC17
Rugged 12.1" Panel PC with Touch Screen
Hauptmerkmale
- 12.1" display with LED backlight
- 1024 × 768 pixels resolution
- AMD Embedded G-Series
- Wireless communication 2G, 3G, 4G, WLAN, GNSS
- MVB interface (optional)
- All external interfaces on M12 connectors
- -40 °C to +70 °C (+85 °C), fanless
- Maintenance-free design
- Compliant to IP65 (front) and EN 50155 (railway)
- Windows and Linux support
Robust Panel PC for Interactive Rail Applications

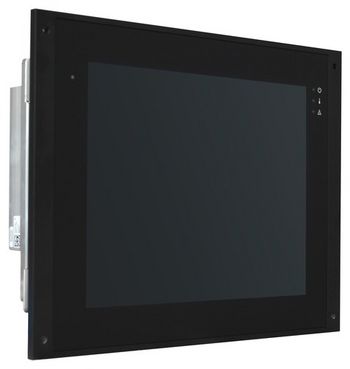

The DC17 panel PC is a rugged, fanless and maintenance-free human-machine interface (HMI) for railway applications. It features a 12.1" display and a projected capacitive touch screen.
Its small, ultra-flat mechanical design and configuration options save space in the driver cabin and allow the panel to be tailored for all types of applications in different train models. In addition, its full software compatibility with the 10.4" DC15 panel PC both increases flexibility and lowers costs, e.g., if an upgrade to a larger panel is necessary.
High-Quality, High-Resolution Display
The DC17 houses a robust impact-resistant XGA TFT LCD display with LED backlight, and features high illumination intensity. This ensures good readability, even when exposed to sunlight. It also features a buzzer for alarm purposes, as well as LEDs and a light sensor at the front.
Due to its high resolution and optimized usability, it is a perfect choice for applications like CCTV.
Powerful & Energy-Efficient Computing

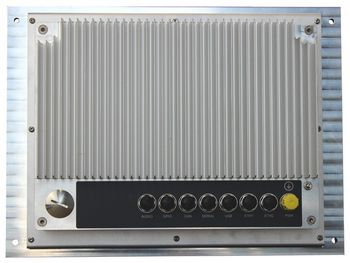

Built around a T40E AMD Dual Core processor with 1.0 GHz, the DC17 is equipped with 2 GB RAM and a 16 GB mSATA disk. Standard interfaces include two Fast Ethernet, one USB, one CAN, one audio, one GPIO, and one serial - all available on M12 connectors at the back of the panel PC.
An M.2 slot and PCI Express Mini Card interface can control wireless communication functions like 2G, 3G, 4G and GPS. Two micro-SIM card slots with dual-SIM functionality are accessible at the back of the panel.
Flexible Rail Network Connection Options
The DC17 can provide Multifunction Vehicle Bus (MVB) master or slave support where necessary, by adding an MVB PCI Express Mini Card from duagon. This makes the display scalable for different applications.
Extremely Rugged, Perfectly Rail-Ready
The DC17 comes with an extremely rugged housing with an IP65 compliant front. It supports a railway-compliant power supply of 24 or 110 VDC, its internal PSU complying with EN 50155 class S2. Also in compliance with the standard, the DC17 operates in a -40 °C to +70 °C environment (+85 °C for 10 minutes), achieved through fanless conduction-cooling technology.
All electronic components are soldered to withstand shock and vibration, backed up by its solid M12 connectors, and are protected by conformal coating.
The panel PC meets all important requirements for railway equipment for fast, competitive time-to-market even in mission-critical environments. At the same time its long availability and life-time of seven years reduces overall system costs.
- Screen size: 12.1"
- Resolution: 1024 x 768 pixels
- Luminance: 350 cd/m²
- Colors: 16.2 M
- Viewing angle: +/-80° min. horizontal/vertical
- Anti-glare safety glass
- Ambient light measurement
- Software controlled display brightness
- System RAM
- Soldered DDR3
- 2 GB
- mSATA
- 16 GB (aMLC)
- 2 GB, 4 GB or 8 GB (optional)
- One PCI Express Mini Card, Full-Mini
- One M.2 card, Type 3042
- Two micro-SIM cards
- Touch panel
- Projected Capacitive Touch (PCT)
- Two finger multi-touch
- Status LEDs
- Light sensor
- mSATA
- One mSATA slot
- PCI Express Mini Card
- One PCI Express Mini Card slot
- PCIe, USB 2.0
- M.2
- One M.2 slot
- USB 2.0
- Ethernet
- Two 4-pin M12 connectors, D-coded, 100BASE-T
- USB
- One 5-pin M12 connector, A-coded, USB 2.0
- Antenna connections (optional)
- Two antenna connector cutouts
- For wireless interface cards
- One RP-SMA connector for 2G, 3G or 4G (optional)
- One SMA connector for GPS (optional)
- SIM card
- Two micro-SIM card slots, dual SIM
- UART
- One 5-pin M12 connector, A-coded
- Software-configurable as RS232/RS422/RS485
- CAN
- One 5-pin M12 connector, A-coded
- GPIO
- One 5-pin M12 connector, B-coded
- Multifunctional Vehicle Bus (MVB) (optional)
- EMD or ESD+ according to IEC 61375
- Process Data (PD), Message Data (MD) and Bus Administrator (BA)
- Available via Duagon PCI Express Mini Card (not included)
- Audio
- One 8-pin M12 connector, A-coded
- Adjustable volume level
- Single ended stereo line in
- Differential stereo line out
- Power Supply
- One 4-pin M12 connector, A-coded
- Watchdog
- Operating hour counter
- Power cycle counter
- CPU temperature measurement
- Buzzer for signaling alarm
- Display temperature measurement (display off at extreme temperatures)
- Power Supply
- 24 V or 110 V DC nominal; 14.4 V to 33.6 V DC or 66 V to 154 V DC max. (EN 50155)
- Power interruption class S2 (10 ms) (EN 50155)
- Reverse polarity protection
- Power consumption
- 30 W approx.
- Dimensions
- Device: (W) 350 mm, (D) 260 mm, (H) 90 mm
- Cut-out: (W) 305 mm, (H) 243 mm
- Weight
- approx. 4500 g
- Temperature range (operation):
- -30°C to +70°C for the display panel
- -40°C to +70°C, with up to +85°C for 10 minutes according to class TX (EN 50155) for the computer
- Temperature range (storage): -40°C to +85°C
- Cooling concept
- Fanless operation, natural convection
- Humidity: EN 60068-2-30, EN 50155
- Altitude: -300 m to +3000 m
- Shock: EN 61373, EN 50155
- Vibration: EN 61373, EN 50155
- Protection rating
- IP65 (Front)
- IP20 (Back and sides)
- 48 032 h @ 40°C according to IEC/TR 62380 (RDF 2000) (model 09DC17-00)
- 48 195 h @ 40°C according to IEC/TR 62380 (RDF 2000) (model 09DC17-01)
- Electrical Safety
- EN 50153
- EN 50155
- Fire Protection
- EN 45545-2, hazard level HL3
- Linux
- Windows
- Windows 7 Embedded
- See also Application Note Recommendations for a Robust Software Setup
Accessories - PCI Express Mini Cards
Accessories - Miscellaneous
- 1x power supply cable to power 4-pin M12
- 2x 4-pin M12 to RJ45 for Ethernet cable
- 1x 5-pin M12 to USB type A recept. cable
- 1x 5-pin M12 to CAN 9-pin D-Sub recept. cable
- 1x 5-pin M12 to RS232 9-pin D-Sub plug cable
- 1x 8-pin M12 to audio 9-pin D-Sub plug cable
- 1x 5-pin M12 to GPIO 9-pin D-Sub plug cable
