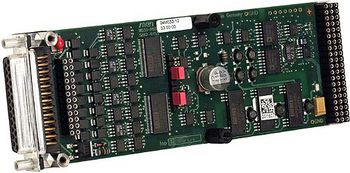

M33
Mezzanine Card with 8 Analog Outputs, 12 Bits
M-Module
Eingestelltes Produkt

Hauptmerkmale
- 8 current or voltage outputs
- 12 bits resolution
- 10 µs acquisition/conversion time
- Simultaneous channel update
- Optical isolation
- -40 °C to +85 °C versions
Beschreibung
The mezzanine card M33 is a highly flexible M-Module for analog output signals. The isolated supply voltages can be generated by an on-board DC/DC converter. The output voltage range can be set to 0 V to 10 V, -5 V to +5 V or -10 V to +10 V for each channel by software. In addition, the current outputs can be used with 0 mA to 20 mA or 4 mA to 20 mA. The output load is driven to ground.
Attention: An external supply is needed with 8 current outputs!
The M33 is based on the M-Module ANSI mezzanine standard. It can be used as an I/O extension in any type of bus system, i.e. CPCI, VME or on any type of stand-alone SBC. Appropriate M-Module carrier cards in 3U, 6U and other formats are available from duagon or other manufacturers.
D/A Conversion
- 8 channels
- 12 bits
- DAC conversion time 10 µs
- ±5 LSB gain
- Simultaneous update of all channels possible
Voltage Output
- Output current: 5 mA max.
- Output linearity: ±1 LSB
- Accuracy: ±0.2%, ±1 LSB differential
- Voltage ranges: 0 V to 10 V; -5 V to +5 V; -10 V to +10 V
- Voltage output stable up to 1 µF capacitive load
Current Output
- Accuracy: ± 0.5%
- Current range: 0 mA to 20 mA; 4 mA to 20 mA
- Max. output voltage 10 V
- Load resistance range: 0 Ohm to 500 Ohm
Slew Rates for Voltage Output
- 0 V to +10 V mode: switch from 0 V to +10 V; slew rate (SR) = 4 V/µs
- -5 V to +5 V mode: switch from -5 V to +5 V; slew rate (SR) = 4 V/µs
- -10 V to +10 V mode: switch from -10 V to +10 V; slew rate (SR) = 4 V/µs
Peripheral Connections
- 4/8 × analog output, isolated, D-Sub, 25-pin, receptacle
- Via carrier board (rear I/O)
M-Module Characteristics
A08, D16, IDENT
Product Standard
M-Module: ANSI/VITA 12-1997 (S2012)
Electrical Specifications
- Isolation voltage: 500V DC
- Supply voltage/power consumption:
- +5 V (4.85 V to 5.25 V), 480 mA quiescent current, 600 mA with 8 channels voltage output, 650 mA with 4 channels current output
- External supply voltage +24 V: 15.6 V to 30 V
- MTBF: 200 000 h @ 50 °C (derived from MIL-HDBK-217F)
Mechanical Specifications
- Dimensions: conforming to M-Module Standard
- Weight: 80 g
Environmental Specifications
- Temperature range (operation):
- 0 °C to +60 °C or -40 °C to +85 °C
- Airflow: min. 10 m³/h
- Temperature range (storage): -40 °C to +85 °C
- Relative humidity range (operation): max. 95% non-condensing
- Relative humidity range (storage): max. 95% non-condensing
- Altitude: -300 m to +3000 m
- Shock: 15g/11ms
- Bump: 10g/16ms
- Vibration (sinusoidal): 2 g / 10 Hz to 150 Hz
Safety
Flammability (PCBs): UL 94 V-0
EMC
Tested according to EN 55022 (radio disturbance), IEC 61000-4-2 (ESD) and IEC 61000-4-4 (burst)
Software Support
- Modular Driver Interface System (MDIS for Windows, Linux, VxWorks, QNX)
- For more information on supported operating system versions and drivers see Software.
Accessories - Miscellaneous
05M000-00
M-Module cable, 2 m, with 25-pin D-Sub plug/housing to pig tail
05M000-17
25 mounting screw sets to fix M-Modules on carrier boards (3 different screw types, 50 pieces each)
