NM30 - Fully Managed 8-Port Railway Ethernet Switch

Maintenance Free and Extremely Rugged

The NM30 family is a range of 8-port fanless and maintenance-free managed Ethernet switches, developed specifically for rough environmental conditions in rolling stock applications.

High Speed, High Efficiency and Extensive Protocols

The 29 Gbit/s, TCAM based, store-and-forward switching matrix of the NM30 allows high-performance layer 2 switching over all connected interfaces. For easy remote management and access, layer 3 protocols, e.g., IPv4/IPv6 and DHCP, are integrated. The switch provides extended security features like SNMPv3, SSH and HTTPS. Traffic isolation (VLAN) and switching redundancy protocols (e.g., STP, RSTP, MSTP) provide safe running of the network using redundant data paths in the event of a fault. The ITU-T G.8031/G.8032 ring and linear protection switching feature set makes NM30 able to create network ring scenarios with recovery time under 50 ms. Monitoring and diagnosis functions, e.g., sFlow or SNMPv1, v2c, v3 are provided.

Versatile Application Possibilities

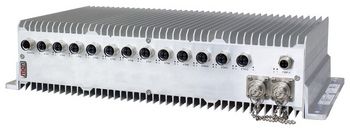

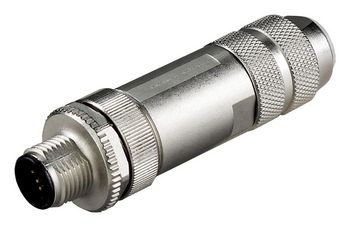

The NM30 range provide eight channels at the front panel, accessible through M12 connectors and cover different application requirements, and either 100 Mb or 1 Gb Ethernet interfaces.

Compliant to Railway Standards

The voltage supply for the NM30 Managed Ethernet Switch is designed for maximum flexibility and supports wide range input supply voltages from 14.4 V DC to 154 V DC, and meets all EN 50155 class S2 requirements for voltages ranging from 24 V DC to 110 V DC.

Conduction Cooled

The NM30 is designed for fanless operation at temperatures ranging from -40 °C to +70 °C (10 min @ +85 °C). The NM30 features IP40 protection when mounted as specified and cooling fins which serve as a heatsink for the internal electronics, and in this way provides conduction cooling.

Familiar Family Concept

As a member of MEN's family of extremely rugged industrial box PCs, the NM30 provides the same flexibility and scalability, as well as a look and feel which is common to the family.

Features

  • Fully managed 8-port rugged Ethernet switch
  • 10/100 (Fast) or 10/100/1000 Mbit/s variants
  • M12 A-, D- or X-coded
  • 29 Gbit/s carrier grade switching matrix
  • ITU-T G.8031/G.8032 Ethernet linear and ring protection switching
  • Ultra-wide range rail power supply: 24 V DC to 110 V DC
  • -40 °C to +70 °C (+85 °C), fanless
  • Maintenance-free design
  • EN 50155 compliant (railways)

Specifications

Switch Key Features
  • Switching matrix
    • Total switching capacity of chipset: 29 Gbit/s
    • MAC address table size: 8192
    • Switching algorithm: Store-and-forward, TCAM high-speed (Ternary Content-Addressable Memory)
  • General network support
    • IPv4
    • IPv6
    • IPv6 Ready Logo approved
  • Protocols and functionality
    • DHCP ARP inspection
    • DHCP Option 82
    • DHCP Server/Client
    • DHCP snooping
    • DNS Client (RFC 2136)
    • DNS Proxy (RFC 5625)
    • IEEE 1588v2 PtP
    • One-step and two-step clocks
    • Transparent clock
  • Ports and port control
    • Energy Efficient Ethernet (IEEE 802.3az)
    • ETH Signal Equalization and Power Control
    • Inband management (VRAP)
    • Port frame size (Jumbo Frames: 9216 bytes/packet max.)
    • Port state (admin), speed, duplex mode and flow control
    • Port status (link monitoring) and statistics (MIB counters)
    • Port VeriPHY (cable diagnostics), ActiPHY and PerfectReach
  • User configuration interfaces
    • Command line interface (CLI) via console, SSHv2, Telnet
    • Web interface (HTTP/HTTPS) via IPv4, IPv6
  • See the firmware product page for more information on the switch firmware features.
Interfaces
  • Ethernet
    • 8 × 10/100/1000BASE-T, M12, A-coded, receptacle
    • 8 × 10/100BASE-T, M12, D-coded, receptacle
    • 8 × 10/100/1000BASE-T, M12, X-coded, receptacle
  • Serial
    • 1 × RS232, non-isolated, M12, A-coded, receptacle (console port)
  • LED
    • Status: power status
    • Ethernet: activity, link
  • Power
    • 1 × power in, M12, A-coded, plug
  • Earthing connection
    • M4 stud
Electrical Specifications
  • Supply voltage: 24 V DC to 110 V DC nom. (EN 50155)
  • Power consumption: 10 W max.
Mechanical Specifications
  • Dimensions: (W) 220 mm, (D) 164 mm, (H) 44.1 mm
  • Weight: 1.5 kg max.
  • Mounting: Wall-mount
  • Cooling: Air cooling, natural convection, airflow 0.4 m/s
  • Protection rating: IP40 (when mounted as specified)
Product Compliance: Rail - Rolling Stock
  • Operating temperature: -40 °C to +70 °C; 10 min @ +85 °C (EN 50155:2007, class TX, control cabinet)
  • Storage temperature: -40 °C (EN 60068-2-1:2007, Ab) to +85 °C (EN 60068-2-2:2007, Bb)
  • Altitude: 0 m to +3000 m
  • Humidity: +55 °C and +25 °C, 90 % to 100 % RH (EN 50155:2007)
  • Shock: 50 m/s² / 30 ms (EN 61373:2010, vehicle body, cat. 1, class B)
  • Vibration: 10 min @ 1.01 m/s² and 5 h @ 5.72 m/s² (EN 61373:2010, vehicle body, cat. 1, class B)
  • Power supply: Interruption of voltage supply: 10 ms (EN 50155:2007, class S2)
  • Electrical safety
    • EN 50124-1:2001 + A1:2003 + A2:2005
    • EN 50153:2014
    • EN 50155:2007
  • Fire protection: EN 45545-2:2013 + A1:2015, HL3
  • EMC emission: EN 50121-3-2:2015
  • EMC immunity: EN 50121-3-2:2015
Reliability
1 000 000 h predicted @ 40 °C according to IEC/TR 62380 (RDF 2000)
