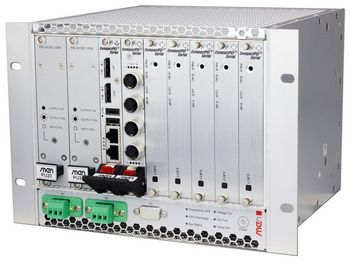

MH70S
Rugged Data Storage & NAS Computer with Intel Core i3/i5/i7
Main Features
- Compact 40 HP turn-key system
- Rack-mounted or wall-mounted
- Fanless operation or forced-air cooling
- Intel Core i7 or Celeron, TPM optional
- Up to 16 GB DDR3 DRAM soldered, ECC
- Up to 20 TB storage capacity (depending on RAID level and HDD sizes)
- Up to 5 hot-swappable HDD/SSD carriers in different RAID configurations
- Single or redundant power supply (AC or DC)
- Optional WLAN, LTE, GPS or GLONASS
- Optional PoE PSE capable 4-port switch
- Compliant to EN 50155 (railways)
Modular, Built-to-Order Configuration
The MH70S is a modular turn-key storage PC which meets the requirements of storage intensive applications such as digital video recorders, content servers or NAS. It is designed for use in trains, trams or industrial environments.
The system consists of a modular 40 HP CompactPCI Serial system which can be wall or rack-mounted. The system can be cooled by using an additional fan tray at the bottom of the system. Cooling is independent of the mounting position.
The PC offers a multitude of configuration possibilities which are built to order resulting in a fast time-to-market.
Storage, Ethernet Switch and Wireless Functionality
Thanks to its up to five HDD/SSD carriers (2 HDDs each), the MH70S forms a high performance and high capacity storage system. Up to eight PoE PSE ports supplying eight devices with a maximum of 100 Watts in total can be implemented. For robust and safe operation, the HDD carriers can be configured in RAID 0, 1 or 5 while the carriers themselves have their own internal RAID 0, 1 and JBOD hardware configuration possibility.
The system offers up to 2 Gigabit Ethernet interfaces at the front of the CPU board. PCI Express Mini cards for wireless functions such as WLAN and UMTS can also be provided.
High-Performance Processor and System Control
The system is based on a high-performance Intel Core i7 processor supporting Intel AMT functionality. Data security can be assured using a TPM module. A system management controller complements the self-control and self-monitoring capabilities. It manages life-time information about, e.g., the fans, power supplies and can be used for manual shutdown.
Redundant Power Supply
The pre-configured system offers two PSU slots to ensure reliability and redundancy. Normal operation is guaranteed if at least one external voltage is present. AC or DC power supplies can be implemented. Each power supply has its own power source. This allows the system to be fed from independent power distribution networks assuring fail-over functionality and power-cut bridging.
Related Products
- CPCI Serial 3U Board
- Configurable: yes
- Possible Configurations:
- Mass Storage
- SSD mSATA, 8 GB, -40°C to +85°C or
- SSD mSATA 3.x, 64 GB, MLC, -40°C to +85°C
- PSU 3U
- Configurable: yes
- Possible Configurations:
- Two separate power inlet connectors
- Normal operation if at least one external voltage is present
- CPCI Serial 3U Board
- Configurable: yes
- Possible in CompactPCI Serial peripheral slot: 1, 2
- 3 PCI Express Mini Card slots (USB and PCIe), -40°C to +85°C
- CPCI Serial 3U Board
- Configurable: yes
- Possible in CompactPCI Serial peripheral slot: 1
- Possible Configurations
- CPCI Serial 3U Board
- Configurable: yes
- Possible in CompactPCI Serial peripheral slot: 1, 2
- Possible Configurations
- CPCI Serial 3U Board
- Configurable: yes
- Possible in CompactPCI Serial peripheral slot: 2, 3, 4, 5, 6
- Possible Configurations
- Dimensions:
- (W) 210 mm, (D) 225 mm, (H) 175 mm max. without brackets
- 4U, 40 HP
- Mounting Possibilities
- Wall/flat surface
- Rack in 19" cabinet
- Two systems side-by-side to build a single 19" chassis
- Temperature range (operation): EN 50155 class TX depending on configuration
- 0 °C to +50 °C for high performance passenger information / video distribution systems with PoE and fans
- Temperature range (storage): -40 °C to +85 °C
- Cooling concept
- Air-cooled, forced convection with fan tray at system bottom
- Relative humidity (operation): according to EN 60068-2-30, non-condensing
- Relative humidity (storage): according to EN 60068-2-30
- Altitude: -300 m to +3000 m
- Shock: according to EN 61373 category 1 class B
- Vibration: according to EN 61373 category 1 class B
- International Protection Rating (IEC 60529): IP20
- Electrical Safety
- EN 60950-1: Class I equipment
- Flammability (PCBs)
- UL 94 V-0
- EN 55022 class B (radiated and conducted emissions)
- EN 55024 (immunity)
- Linux
- OpenMediaVault for Network Attached Storage
- Windows Embedded Standard 7 (on request)
