MH70S - Rugged Data Storage & NAS Computer with Intel Core i3/i5/i7

Modular, Built-to-Order Configuration

The MH70S is a modular turn-key storage PC which meets the requirements of storage intensive applications such as digital video recorders, content servers or NAS. It is designed for use in trains, trams or industrial environments.

The system consists of a modular 40 HP CompactPCI Serial system which can be wall or rack-mounted. The system can be cooled by using an additional fan tray at the bottom of the system. Cooling is independent of the mounting position.

The PC offers a multitude of configuration possibilities which are built to order resulting in a fast time-to-market.

Storage, Ethernet Switch and Wireless Functionality

Thanks to its up to five HDD/SSD carriers (2 HDDs each), the MH70S forms a high performance and high capacity storage system. Up to eight PoE PSE ports supplying eight devices with a maximum of 100 Watts in total can be implemented. For robust and safe operation, the HDD carriers can be configured in RAID 0, 1 or 5 while the carriers themselves have their own internal RAID 0, 1 and JBOD hardware configuration possibility.

The system offers up to 2 Gigabit Ethernet interfaces at the front of the CPU board. PCI Express Mini cards for wireless functions such as WLAN and UMTS can also be provided.

High-Performance Processor and System Control

The system is based on a high-performance Intel Core i7 processor supporting Intel AMT functionality. Data security can be assured using a TPM module. A system management controller complements the self-control and self-monitoring capabilities. It manages life-time information about, e.g., the fans, power supplies and can be used for manual shutdown.

Redundant Power Supply

The pre-configured system offers two PSU slots to ensure reliability and redundancy. Normal operation is guaranteed if at least one external voltage is present. AC or DC power supplies can be implemented. Each power supply has its own power source. This allows the system to be fed from independent power distribution networks assuring fail-over functionality and power-cut bridging.


  • Compact 40 HP turn-key system
  • Rack-mounted or wall-mounted
  • Fanless operation or forced-air cooling
  • Intel Core i7 or Celeron, TPM optional
  • Up to 16 GB DDR3 DRAM soldered, ECC
  • Up to 20 TB storage capacity (depending on RAID level and HDD sizes)
  • Up to 5 hot-swappable HDD/SSD carriers in different RAID configurations
  • Single or redundant power supply (AC or DC)
  • Optional WLAN, LTE, GPS or GLONASS
  • Optional PoE PSE capable 4-port switch
  • Compliant to EN 50155 (railways)


CPU Board
Supervision and Control
Dedicated shelf controller monitors power, CPU status, temperature; controls fan; provides status LEDs and power button
Power Supply

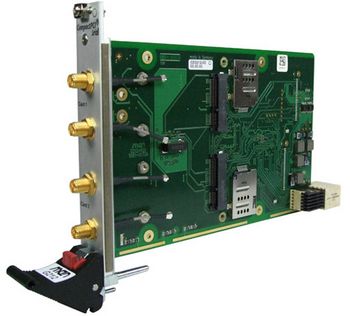

Wireless Functionality via PCI Express Mini Cards
Ethernet Interface Functionality
Ethernet Switch Functionality
Mass Storage
Mechanical Specifications
  • Dimensions:
    • (W) 210 mm, (D) 225 mm, (H) 175 mm max. without brackets
    • 4U, 40 HP
  • Mounting Possibilities
    • Wall/flat surface
    • Rack in 19" cabinet
    • Two systems side-by-side to build a single 19" chassis
Environmental Specifications
  • Temperature range (operation): EN 50155 class TX depending on configuration
    • 0°C to +50°C for high performance passenger information / video distribution systems with PoE and fans
  • Temperature range (storage): -40°C to +85°C
  • Cooling concept
    • Air-cooled, forced convection with fan tray at system bottom
  • Relative humidity (operation): according to EN 60068-2-30, non-condensing
  • Relative humidity (storage): according to EN 60068-2-30
  • Altitude: -300 m to +3000 m
  • Shock: according to EN 61373 category 1 class B
  • Vibration: according to EN 61373 category 1 class B
  • International Protection Rating (IEC 60529): IP20
Product Compliance: Radio Equipment
EMC basic compliance: The product is prepared to comply with the Radio Equipment Directive 2014/53/EU (RED). Standards compliance depends on the assembled radio (wireless) device.
  • Electrical Safety
    • EN 60950-1: Class I equipment
  • Flammability (PCBs)
    • UL 94 V-0
EMC Conformity
  • EN 55022 class B (radiated and conducted emissions)
  • EN 55024 (immunity)
Software Support
  • Linux
  • OpenMediaVault for Network Attached Storage
  • Windows Embedded Standard 7 (on request)


Short-form Data Sheet
User Manuals
Technical Drawings
Windows Embedded Standard 7 BSP
(ZIP, 1 GB, Windows)
Linux driver (MEN) for RX-8581/RX-8571 real-time clock (RTC)
(ZIP, 5 KB, Linux)
Windows chipset driver (Intel) for F14, F15, F17, F18, F18E, F19P, F21P, F22P, G20, G22, XM2, CB70C, D6, D7, D9, A19, A20 and D601
(ZIP, 3 MB, Windows)
Windows Intel Management Engine Driver (Intel) for G23 and F23P
(ZIP, 62 MB, Windows)
Windows chipset driver (Intel) for F23P and G23
(ZIP, 3 MB, Windows)
Windows 64-bit graphics driver (Intel) for F23P and G23
(ZIP, 119 MB, Windows)
Windows USB 3.0 driver (Intel) for G23, G25A and A25
(ZIP, 5 MB, Windows)
MDIS5 System Package (MEN) for Windows
(ZIP, 80 MB, Windows)
MDIS5 System Package (MEN) for Linux
(ZIP, 12 MB, Linux)
Linux network driver (Intel) for G211, G211F, GM1, GM2 and GM3
(ZIP, 220 KB, Linux)
Windows 32-bit network driver (Intel)
(ZIP, 47 MB, Windows)
Windows 64-bit network driver (Intel)
(ZIP, 39 MB, Windows)
Windows Intel Management Engine Driver (Intel) for G22, F22P and CB70C
(ZIP, 45 MB, Windows)
Windows XP 32-bit graphics driver (Intel) for F21P and G22
(ZIP, 23 MB, Windows)
Windows 7/8 32-bit graphics driver (Intel) for F22P, G22, CB70C, SC25, BL70W and BL70S
(ZIP, 103 MB, Windows)
Windows 7/8 64-bit graphics driver (Intel) for F22P, G22, CB70C, SC25, BL70W and BL70S
(ZIP, 135 MB, Windows)
Windows 32-bit graphics driver (Intel) for F23P and G23
(ZIP, 64 MB, Windows)
Windows ERTC/SMB support package (MEN)
(ZIP, 13 MB, Windows)
MEN Firmware Update Package (Intel Management Engine) for A22, BC70M, BL70E, BL70S, BL70W, CB70, CB70C, F22P, F22C, G22, G22C, MH70I
(ZIP, 5 MB, Firmware/BIOS)
MEN Firmware Update Package (Intel Management Engine) for F23P, F23C, G23, MH70S
(ZIP, 5 MB, Firmware/BIOS)
