CompactPCI Serial系统特别适用于哪些应用场景？
CompactPCI Serial系统是处理和传输海量数据的现代化资源密集型应用的理想解决方案，可实现灵活且安全的数据处理。在铁路技术领域，该系统可作为列车中央服务器、5G路由器硬件，或作为高性能计算机处理乘客信息系统、视频监控及主动网络安全功能（如入侵检测）等应用。
Components and systems based on CompactPCI Serial
Combine performance, connectivity, and AI technologies for future-proof systems in railway technology
Train manufacturers, railway operators, and subsystem manufacturers worldwide rely on CompactPCI Serial systems (cPCI Serial) from duagon: flexibly configurable, expandable, robust, extremely powerful, future-proof, and specially tailored to the requirements of railway technology. With this expertise and specialization, we provide you with the essential components for reliable, modern, and safe rail transport. Our components and systems withstand harsh environmental conditions such as vibration, shock, dust, moisture, and extreme temperatures. In addition, our products offer cybersecure functions such as “Secure Boot” and “Secure Updates” to achieve defined security levels. The systems are therefore not only suitable for railway technology, but also ideal for other industrial applications with demanding environmental conditions, as well as functional safety and cybersecurity requirements.
To ensure that your system precisely meets your requirements, we configure it together with you and ensure that the various modules integrate perfectly. To do this, we combine existing, certified duagon individual components or develop customer-specific solutions based on your exact specifications. This results in highly available (and, if required, high-performance) computing systems made up of individual boards, which are available to you as hardware for a wide variety of applications on the track or in the train—for example, for the functionally safe control of signal boxes, as a central (possibly safety-critical) train server, as a 5G router, or as a high-performance computer for passenger information systems, video surveillance, and AI applications.
Get in touch with our specialists now and let our expertise, long-term availability of products, and accompanying services convince you.
Advantages
We configure your system precisely to your requirements by combining CPU boards with peripheral boards for data storage, AI modules, and various interfaces.
CompactPCI Serial is a global industry standard for modular computer systems, managed by the PCI Industrial Computer Manufacturers Group (PICMG). CompactPCI Serial systems have a modular design and can therefore be configured to fit your exact requirements.
This allows you to combine particularly powerful CPU boards with a variety of additional components, such as fast memory and high-speed data interfaces, to create multifunctional systems.
In addition to their high-performance and comprehensive connectivity options, modular CompactPCI systems are also highly future-proofed: they are relatively easy to maintain and can be expanded with modern components even after many years of use.
配置 CompactPCI Serial 系统
组合组件与扩展系统

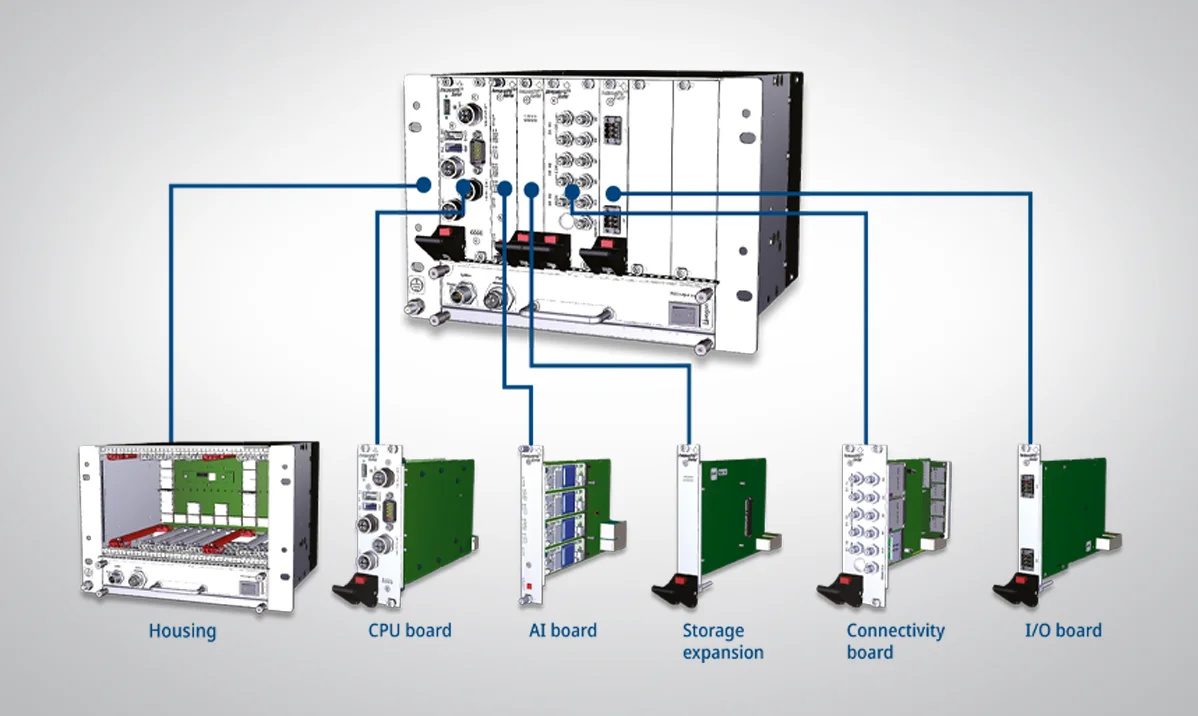

CompactPCI Serial系统（cPCI Serial 或CPCI-S.0）由机箱（含电源及必要风扇）构成，可灵活插入各类板卡。机箱内的背板连接各组件，其中CPU板为核心部件——根据需求配置，单系统亦可安装多块CPU板。另提供可选外围板卡实现扩展功能。 在 duagon，我们为您提供所有这些组件的一站式服务，并与您共同配置满足您需求的完美系统。
Housing, backplane, power supply, fan, shelf controller
We typically build CompactPCI Serial systems in enclosures that can be integrated into standardized 19" racks or ½-19" racks, depending on the space available. If desired, we can also implement your system in custom designs.
The housing includes the power supply (which can also be redundant on request), which we usually install behind the backplane or at the front as a plug-in module. Depending on the requirements profile, we integrate active or passive cooling solutions.
If necessary, we equip our systems with a shelf controller for basic control and monitoring functions (e.g., fan control, ignition for delayed start-up and shutdown of the CPU).
CPU boards for CompactPCI Serial
CPU boards from duagon are the heart of your CompactPCI Serial systems. They are designed as single-board computers and, in addition to the CPU, also feature data storage, RAM, and interfaces (e.g., Ethernet, USB). Scale your system by selecting from different CPU performance classes and installing multiple CPU boards per system.
To easily modernize existing duagon systems and equip them with new CPU generations, our CPU boards are compatible with each other across multiple generations. This allows you to continue working with the surrounding infrastructure even after replacement.
Our CPU boards
Storage expansion
Storage expansion for CompactPCI Serial. We offer additional storage space with peripheral boards for various interfaces (e.g., SATA, NVMe) and form factors. This gives you access to data storage devices with different speeds. Depending on the peripheral board you choose, you can even replace the data storage devices installed in it during operation (hot swap).
More info
AI boards
AI boards for CompactPCI Serial. For demanding AI applications that require more computing power than CPU boards can provide, we offer dedicated expansion boards with NPU modules (e.g., AIPU modules from Axelera).
These are particularly suitable for data analysis and object recognition.
More info
Connectivity
Connectivity for CompactPCI Serial. Turn your system into a multimedia system and equip it with 5G, Wi-Fi, and GNSS—or, specifically for railway technology, with GSM-R and FRMCS. We offer assemblies that integrate the appropriate modules into your system. Our portfolio also includes boards with wired communication interfaces such as Ethernet up to 10 Gbit/s or with serial interfaces (RS232, RS485, CAN, MVB, etc.).
More info
Central train server with CompactPCI Serial
Hardware for highly available, functionally safe, and cyber-secure applications in trains
Many train manufacturers equip their vehicles with central train servers. They supply the computing hardware, for example, to take over essential (including functionally safe) train control systems, provide information for comfort systems, or orchestrate the flow of information between decentralized subsystems installed in the train. This also includes (protected) update services, which the train server downloads over the air (OTA) and distributes to the decentralized systems in the train.
To ensure that your train server meets the desired task profile, you can choose from different processors (G28M or G029M), storage sizes (e.g., G504 or G506), and communication interfaces (e.g., G240 for 10 Gigabit Ethernet). On request, we can also equip your train server with several 5G modules for fast train-to-ground communication and GNSS for satellite-based positioning services (G239).
Multimedia server and passenger information
Hardware for comfort applications and smart passenger information systems
CompactPCI Serial systems have been used for many years as computing hardware for established comfort systems, passenger information systems and multimedia applications in current train generations. Future train generations will also increasingly offer smart passenger information applications based on a wide range of real-time data. These include, for example, light animations and display messages that show waiting passengers on the platform, which areas of the train are already full, and which are still empty. Such multimedia and information services require enormous computing power (G029M), large data storage (e.g., G504 or G506), and fast communication interfaces (e.g., G240 for 10 Gigabit Ethernet). With a CompactPCI Serial system, you can configure your multimedia server to fit your exact needs and flexibly upgrade existing systems.
5G routers and Wi-Fi on trains
Stable train-to-ground communication with duagon
Nowadays, passengers expect stable Wi-Fi with high and fast data rates, both in above-ground and underground local trains and in high-speed long-distance trains. Various (sometimes safety-critical) train systems also require stable data connections. CompactPCI serial systems are particularly suitable for high-availability hardware at stations and on trains. With 5G modules, you can establish stable train-to-ground communication and provide it on the train via WLAN modules (G239) as well as via wired 2.5 Gigabit or 10 Gigabit Ethernet (G240) – with multiple redundancy if required, of course.
Video processing and AI on trains
Hardware for large video data and AI analytics
Modern assistance systems such as video surveillance and AI-based object recognition will play an important role in new generations of trains (e.g., automatic detection of passengers and luggage in parked trains). Configure your CompactPCI Serial system so that it can quickly process and analyze high image data rates: To do this, combine powerful processors (G029M and G029I) with NPU or AIPU modules (G506A) for AI-supported object recognition and assemblies for high-speed storage media (e.g., G504 or G506 for NVMe SSDs).
If you want to analyze video material in trackside data centers, you can use a powerful CompactPCI Serial system on the train to compress the video data according to the available bandwidth and send it via 5G modules.
Monitoring and predictive maintenance
Hardware for efficient maintenance intervals and higher vehicle availability
Most digital train systems and subsystems continuously generate data on their current status during operation. On the one hand, this data provides information on whether systems and services are functioning properly. On the other hand, AI systems can already detect conspicuous patterns in a lot of data when component failure is imminent.
If you want to collect the large amount of different operating data in the train and send it to a land-based data center for real-time analysis, your CompactPCI Serial system should have large storage capacities (e.g., G504 or G506 for NVMe SSDs) and several 5G modules (G239) for stable train-to-ground communication. In many cases, however, it makes sense to process and analyze the data on the train itself.
Configure your system so that it can collect data from decentralized train systems via various interfaces and analyze it using high-performance processors for embedded applications (G029M). With the appropriate NPU modules or AIPU modules from Axelera (G506A), you can use AI solutions for data analysis. You can send the significantly reduced but already processed and filtered data to land-based systems via 5G modules, thereby optimizing the planning and quality of maintenance intervals.
Functionally safe signal box computers (interlocking systems)
2oo3 and 2oo4 architectures for functionally safe applications
Digital signal boxes (interlocking systems) are essential for the safety and smooth operation of rail transport. The hardware on which the various control and safety systems run must therefore meet the strict requirements of functional safety.
With our CompactPCI Serial components, you can configure your powerful and highly available system for safety-critical applications from a wide range of individual components according to your requirements. For example, you can build your fault-tolerant control system as a 2oo3 or 2oo4 controller, in which several processors (G029M or G029I) perform calculations in parallel and compare whether the results are identical. Or you can build redundant systems that support virtualization and in which one system immediately takes over if the other fails.
Our CompactPCI Serial components are typically not pre-certified according to current functional safety standards but are used by our customers in many functionally safe systems. You can simply certify your CompactPCI Serial system as part of the overall certification for your functionally safe application.
FAQs about CompactPCI Serial
CompactPCI Serial系统的替代方案有哪些？
为何 duagon 的 CompactPCI Serial 系统特别适用于轨道交通？
我们的 CompactPCI Serial 组件专为轨道交通的严苛要求和恶劣环境设计。它们符合严格的网络安全标准，并能抵御振动、冲击、粉尘、潮湿及极端温度。为此我们采用板载元件焊接工艺，运用特殊制造技术（如填充工艺强化焊点），为电路板涂覆保护漆，并在极端条件下进行产品测试。 我们还提供配套服务完善产品体系，包括开发环境支持、软件开发服务，以及专为铁路技术设计的超长产品生命周期。正因如此，我们至今仍持续支持基于旧版 CompactPCI 标准的系统。
CompactPCI与CompactPCI Serial是否相同？需要考虑哪些因素？
CompactPCI 是当今常见的 CompactPCI Serial 标准的前身。两者最大的区别在于系统整体中各个组件通过背板相互通信所采用的技术。 CompactPCI 为此采用速度较慢的并行PCI总线技术，而 CompactPCI Serial 则完全采用高速串行点对点连接。这使得数据吞吐量显著提升，成为新一代列车高性能应用的关键要素，代表着当前技术前沿。然而，许多老旧列车仍安装着传统的 CompactPCI 系统。因此我们持续支持此类组件，以保障维护、升级和现代化改造的需求。
哪些操作系统适用于 duagon 的 CompactPCI Serial 系统？
duagon CPU 板卡标配支持Linux操作系统。我们的 G029M CPU 板卡已通过红帽企业版 Linux 9.2–9. x认证。部分 duagon 板卡亦适用于实时操作系统。
我们可根据需求提供 Windows 支持。
