PX7
PCIe Mini Card to M.2 Adapter
Main Features
- M.2 (NGFF) interface for LTE modems
- Possible integration of LTE-Advanced modems
- USB 3.2 Gen 1x1 support
- PCI Express Mini Card form factor
- Possible upgrade of existing PCI Express Mini Card slots
- Conduction cooling frame available
- -40 °C to +85 °C

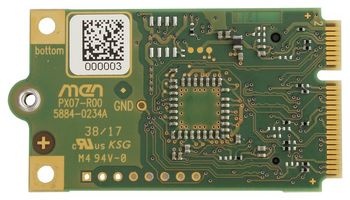

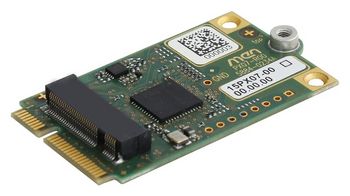

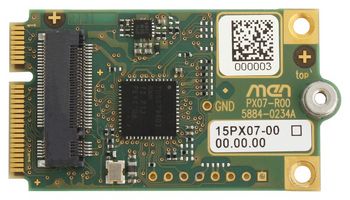

PCI Express Mini Card to M.2 Adapter
The PX7 is a PCI Express Mini Card designed for converting form factor PCI Express Mini to M.2. In addition, it converts PCIe x1 on the PCI Express Mini side into USB 3.2 Gen 1x1 featured on the M.2 side.
USB 3.2 Gen 1x1 Extension for Box PCs
Typically, box PCs from duagon are equipped with PCI Express Mini Card slots which support PCIe x1 and USB 2.0 but not USB 3.2 Gen 1x1. The PX7 extends the capability of the box PC families by enabling the use of USB 3.2 Gen 1x1 devices (i.e. LTE-Advanced Modem) in M.2 form factor. The PX7 also supports one SIM card integrated in the box PCs.
Fit for the Future
The PX7 is the ideal solution for LTE Advanced, as it supports transmission rates of up to 500 Mbit/s (Cat 11/Cat 12). Optionally, the PX7 is also available as a USB 2.0 solution for slower LTE modems (Cat 6).
Conduction Cooling Option
duagon also offers a conduction cooled version of the PX7 including an LTE modem for the use within box PCs.
- LTE, WLAN
- 1x M.2 Card slot
- M.2 3042 (LTE) socket 2 Key B; USB 2.0, USB 3.2 Gen 1x1
- Supply voltage
- +1.5 V (-5 % / +5 %)
- +3.3 V aux (-5 % / +9 %)
- Power consumption
- 1 W max., without M.2 module installed
- Dimensions: PCI Express Full-Mini Card
- Weight: 6 g approx.
- Cooling
- Air cooling, forced convection, airflow 1.0 m/s
- Conduction cooling possible (optional)
- Temperature range (operation): -40 °C to +85 °C, compliant with EN 50155:2007, class TX
- Temperature range (storage): -40 °C to +85 °C
- Relative humidity (operation): max. 95% non-condensing
- Relative humidity (storage): max. 95% non-condensing
- Altitude: -300 m to +3000 m
- Shock: EN 50155 (12.2.11) / EN 61373 category 1 class B body mounted
- Vibration: EN 50155 (12.2.11) / EN 61373 category 1 class B body mounted
- Electrical Safety: EN 62368-1 (former EN 60950-1)
- Flammability (PCBs): UL 94 V-0
- EN 55032, EN 50121-3-2 (radio disturbance)
- IEC 61000-4-2 (ESD)
- EN 55024, EN 50121-3-2 (electromagnetic field immunity)
- EN 55024, EN 50121-3-2 (burst)
- EN 55024 (surge)
- EN 55024, EN 50121-3-2 (conducted disturbances)
- Linux
- Windows
