Overview

10F001N60

VxWorks BSP (MEN) for A15, F1N, B11, A12, D3, SC13 and Kahlua Box

Licensing Information

duagon-Germany-general-licensing-conditions.pdf
(PDF, 263 KB)

Costs

Subject to costs | Contact Sales

Supported Products

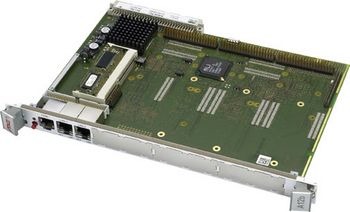

01A012BMPC8245 CPU Board (M-Modules)

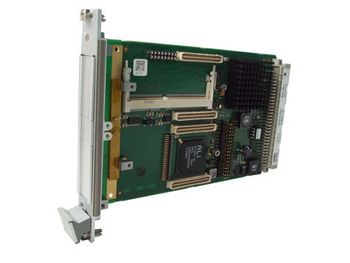

01B011-MPC8245 CPU Board

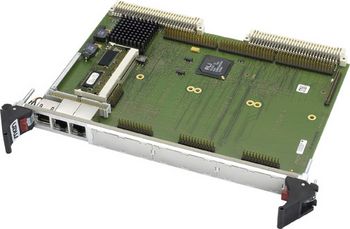

01A015BMPC8245 CPU Board (M-Modules)

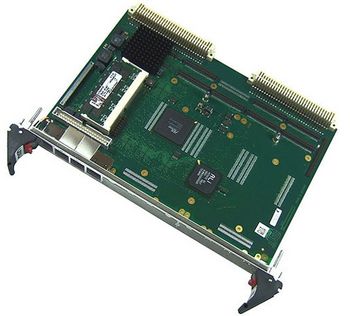

01A015CMPC8245 CPU Board (PMC Modules)

Specifications

Supported Operating System

• Tornado_2.2/VxWorks 5.5
• Workbench 2.3/VxWorks 6.1
• Workbench 2.4/VxWorks 6.2
• Workbench 2.5/VxWorks 6.3

Supported Hardware Features

• CPU
  • MPC8240/8245
  • MMU
• Memory
  • Cache
  • EEPROM
• Mass Storage
  • IDE hard disk
  • CompactFlash
• I/O
  • Two serial lines
  • Two 8245 UARTs (A12/D3/SC13/A15)
  • Ethernet (2 onboard/P12/P16)
• Bus Interface
  • PCI/CompactPCI
  • VMEbus
• Miscellaneous
  • Timer
  • Auxiliary clock
  • Timestamp
  • Real time clock
  • LM75
  • Watchdog

Unsupported Hardware Features

• Keyboard/mouse
• USB
• Boot Flash reprogramming

Included Documentation

HTML documentation

Main Software

10F001N60

VxWorks BSP (MEN) for A15, F1N, B11, A12, D3, SC13 and Kahlua Box

Available for download
