MC50I - DIN-Rail Computer with Intel Atom for Industrial Gateway Applications

Low Power CPU for IoT/Network Applications

The MC50I is a modular computer for embedded applications in industrial automation. The computing platform features an Intel Atom E3900 series CPU with low power dissipation and scalability in performance and memory.

The MC50I is the ideal basis for functions such as security gateway, predictive maintenance or CCTV, or to act as a diagnostics server.

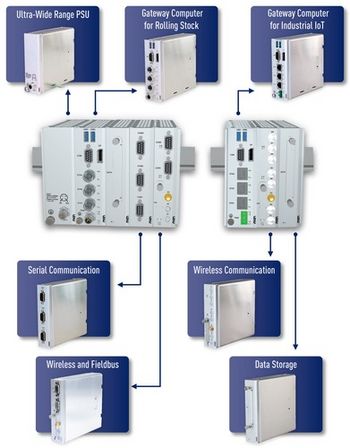

Modular System for Easy Configuration

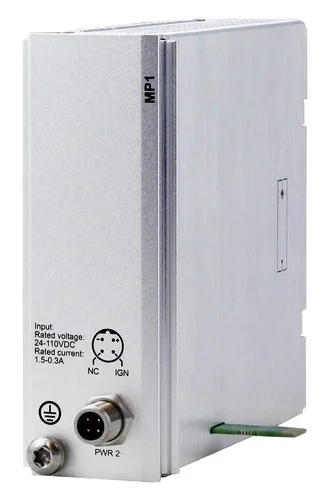

The MC50I can be a stand-alone product, but due to MEN's modular concept it offers flexible built-to-order configurations. The box can be easily combined with prefabricated extension modules, providing additional features and short delivery times.

In the modular system, the data transfer between the modules as well as the power distribution between the individual modules takes place via the extension connectors standardized by MEN.

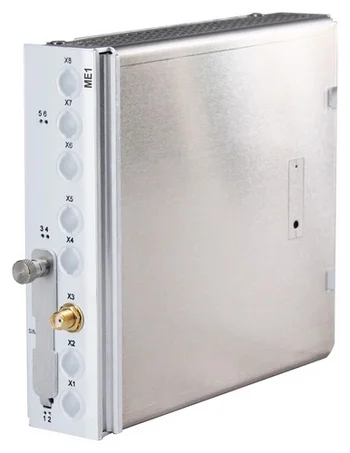

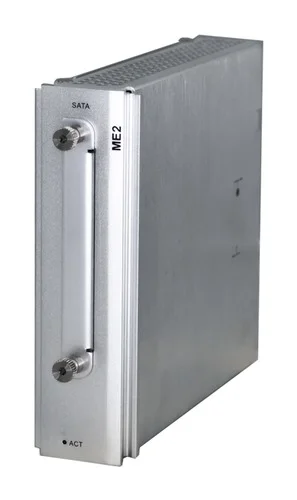

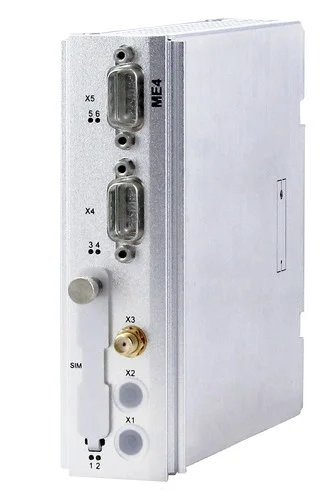

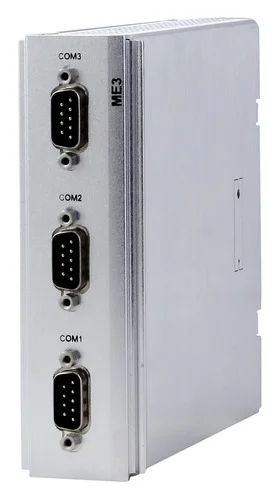

Extension modules can provide application-specific functions like wireless communication (LTE advanced, WLAN, GNSS), CAN bus, or other I/O. A removable storage shuttle can support the integration of a 2.5" SATA HDD/SSD.

Power Saving Design and Security Features

The board management controller provides enhanced reliability and reduced downtime. The Trusted Platform Module supports security and encryption features. With the ignition switch for remote control of booting and shutdown, the platform provides additional features for power saving.

Flexible System Installation

Various mounting options facilitate the integration of the box into an existing environment. The standard 35 mm DIN Rail mounting offers space saving mounting of all system modules on a single rail. Wall mounting and mounting in a 19" rack using adaption brackets are an option.

The aluminum housing with cooling fins allows fanless operation. MC50I has no moving parts, making it maintenance free.

Wayside Qualified and Long-Term Availability

The CPU module is qualified for wayside and information technology applications. Long term availability until 2027 minimizes life-cycle management by making the MC50I available at least for this period of time.

Features

  • Intel Atom E3900 series
  • Up to 8 GB DDR3 RAM with ECC
  • Trusted Platform Module
  • M.2 NVMe slot for storage
  • Gb Ethernet, USB 3.0, RS232, RS485/422, DisplayPort
  • DIN rail, wall or 19" rack mounting
  • Input voltage 24 V DC nom. with ignition
  • Full range power supply 16 V DC to 60 V DC
  • -40 °C to +70 °C, fanless

Specifications

CPU
The following CPU types are supported:
  • Intel Atom x5-E3930, 2 cores, 2 threads, 1.3 GHz, 1.8 GHz Turbo Boost, 6.5 W, 2 MB cache
  • Intel Atom x7-E3950, 4 cores, 4 threads, 1.6 GHz, 2.0 GHz Turbo Boost, 12 W, 2 MB cache
Memory
System RAM
  • Soldered DDR3, ECC
  • 8 GB max.
Security
Trusted Platform Module 2.0
Mass Storage
  • eMMC (soldered); 64 GB max.
  • The following mass storage devices can be assembled:
    • SSD M.2 (NVMe)
Graphics
  • Processor graphics
  • Maximum resolution: 4096 x 2160 pixels @ 60 Hz, 24 bpp
Interfaces
  • SSD/HDD slot
    • 1 × M.2 2242/2260/2280 socket 3 Key M; NVMe (PCIe x1); internally accessible
  • Video
    • 1 × DisplayPort 1.2, for service
  • USB
    • 2 × USB 3.0, Type A, for service
  • Ethernet
    • 3 × 10/100/1000BASE-T, RJ45
  • Serial
    • 1 × RS232 isolated, D-Sub, 9-pin, plug
    • 1 × RS422/RS485, isolated, D-Sub, 9-pin, plug
  • LED
    • Status: board status (BMC), power status
    • Ethernet: activity, link
    • User configurable: 2 ×
  • Power
    • 1 × power in, COMBICON, 3-pin, plug
    • Ignition input
  • Earthing connection
    • M4 screw
Supervision and Control
  • Board management controller
  • Temperature measurement
  • Watchdog timer
  • Real-time clock, buffered by supercapacitor (5 days)
Electrical Specifications
  • Supply voltage
    • 24 V DC nom.
    • 48 V DC nom.
  • Power consumption: 10 to 15 W typ. (depending on CPU type and CPU load), 40 W max. (including ME modules)
Mechanical Specifications
  • Dimensions: (W) 42 mm, (D) 144 mm, (H) 132 mm
  • Weight: 790 g approx.
  • Mounting
    • DIN rail
    • Wall-mount
    • Rack-mount in 19" cabinet
  • Cooling: Air cooling, natural convection, airflow 0.4 m/s
  • Protection rating: IP20
Product Compliance: Rail - Wayside Non-Safety Related
  • Operating temperature: -40 °C to +70 °C (EN 50125-3:2003, class T2, cubicle, with class T2 maximum extended by 5 °C)
  • Storage temperature: -40 °C (EN 60068-2-1:2007, Ab) to +85 °C (EN 60068-2-2:2007, Bb)
  • Altitude: +3000 m max. (EN 50125-3:2003, class AX)
  • Humidity: 100 % RH max. (EN 50125-2:2002, control cabinet, class T1/T2/TX)
  • Shock: 11 ms @ 20 m/s² (EN 50125-3:2003, in a switch cabinet 1 m to 3 m from the track)
  • Vibration: 2.3 m/s² (EN 50125-3:2003, in a switch cabinet 1 m to 3 m from the track)
  • Electrical safety
    • EN 50124-1:2017
    • EN 62368-1:2014 + AC:2015
  • EMC emission
    • EN 50121-4:2016
    • EN 61000-6-4:2007 + A1:2011
  • EMC immunity
    • EN 50121-4:2016
    • EN 61000-6-2:2005
Product Compliance: Road Vehicle
  • EMC emission: ECE R10 Rev.5
  • EMC immunity: ECE R10 Rev.5
Product Compliance: Information Technology Equipment
  • Operating temperature: 0 °C (EN 60068-2-1:2007, Ae, temperature value in compliance with 6.6 b) to +60 °C (EN 60068-2-2:2007, Be)
  • Storage temperature: -40 °C (EN 60068-2-1:2007, Ab) to +85 °C (EN 60068-2-2:2007, Bb)
  • Humidity: +55 °C and +25 °C, 90 % to 100 % RH (EN 60068-2-30:2005, Db)
  • Electrical safety: EN 62368-1:2014 + AC:2015
  • EMC emission: EN 55032:2015 (multimedia equipment), class A (industrial environments)
  • EMC immunity: EN 55024:2010 + A1:2015 (information technology equipment)
Reliability
400 000 h predicted @ 40 °C according to IEC/TR 62380 (RDF 2000)
BIOS/Boot Loader
AMI Aptio UEFI Firmware
