GP1
4-Port Gigabit Ethernet PHY Line Card with PoE
Main Features
- 4 Gigabit Ethernet on RJ45 connectors (M12 optional)
- Power over Ethernet (PoE+) PSE (all ports)
- LEDs for link and activity status
- -40 to +85°C with qualified components
- EN 50155 classTx (railways)
- PICMG CPCI-S.0 CompactPCI Serial peripheral card (limited mechanical compliance)
- IEEE 1588v2 support (optional)

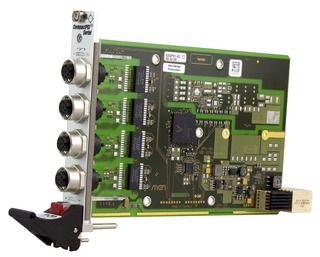

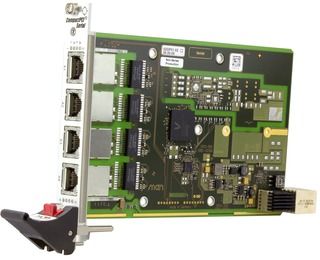

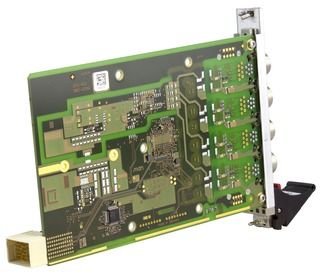

The GP1 is a 3U Gigabit Ethernet PHY line card, with optional PoE support, implemented as a CompactPCI Serial board. It occupies one peripheral slot using a 4 HP front panel with four Gigabit Ethernet ports on RJ45 connectors. Alternatively, the GP1 can be supplied with four M12 A-coded connectors on the front panel (X-coded variants in preparation).
The GP1 is designed to work in combination with the G101 CompactPCI Serial managed industrial Ethernet switch.
The GP1 features four connectors on the front panel, which can be used to create 4 ports of copper Gigabit Ethernet. In addition, the card can act as Power over Ethernet (PoE) Power Sourcing Equipment (PSE), supplying other devices on all ports with power. Each interface supports a data transfer rate of 1 Gbit/s, and provides two LEDs to indicate the link and activity status.
The GP1 operates with a primary voltage supply of +12 V, which is provided via the rear CompactPCI serial connector. All additional required voltages are generated onboard. It is fully compliant with the EN 50155 railway standard, qualified for a -40 to +85°C operation temperature and ready for coating.
Related Products
- Four 10/100/1000BASE-T ports at front panel (Electrical isolation: 1500 Vrms)
- One common isolation group when PoE PSE is installed
- Optional PoE(+) Power sourcing support
- IEEE 1588v2 optional
- IEEE 802.3 Standard
- Power over Ethernet support (IEEE 802.3 Section 2, Type 1 and 2 - classes 0, 1, 2, 3, 4)
- EEE (Energy Efficient Ethernet)
- PSE (Power Sourcing Equipment) function
- Supports supply classes 0 to 4
- Supplies up to four powered devices (up to 60 W total)
- Ethernet
- Four RJ45 or M12 A-coded connectors, 1000BASE-TX (1 Gbit/s)
- Power over Ethernet PSE
- Status LEDs
- Two LEDs per channel
- Signal link status
- Signal link activity
- Serial GPIO (SGPIO)
- Quad Serial Gigabit Interface (QSGMII)
- Peripheral slot with extensions (QSGMII)
- BITE Voltage Supervision
- PoE Voltage monitoring
- Supply voltages
- +12 V (±3%)
- Power consumption
- 5 W without PoE support, 85 W max. with 60 W PoE
- Dimensions: 3U, 4 HP
- Weight: 152 g
- Temperature range (operation):
- -40°C to +85°C
- Airflow 1.5m/s
- Temperature range (storage): -40°C to +85°C
- Relative humidity (operation): max. 95% non-condensing
- Relative humidity (storage): max. 95% non-condensing
- Altitude: -300 m to +2000 m
- Shock: 50 m/s², 30 ms
- Vibration (Function): 1 m/s², 5 Hz to 150 Hz (EN 61373)
- Vibration (Lifetime): 7.9 m/s², 5 Hz to 150 Hz (EN 61373)
- Flammability (PCBs)
- UL 94 V-0
- Electrical Safety
- EN 50155 (Insulation)
- EN 50155 (Voltage)
- EN 55022 (radio disturbance)
- EN 61000-4-2 (ESD Immunity)
- EN 61000-4-4 (burst)
