F603 - Side Card USB/COM

F603 side card configuration example (USB/COM)

F603 side card configuration example (USB/COM) mounted on a F14 equipped with a CompactFlash

F603 side card configuration example (USB/COM) mounted on a F14 equipped with a CompactFlash and an adapter with a second CompactFlash

F603 side card configuration example (USB/COM) mounted on a F14 equipped with a hard disk

F603 side card configuration example (USB/COM) mounted on a F14 equipped with a hard disk and a CompactFlash

The F603 is a 4HP mixed USB/COM extension card for 3U Intel based CompactPCI single-board computers. It can be used in combination with the F14 and compatible CPU boards.

Modern Intel based boards increasingly support USB interfaces as an exclusive universal connection of devices such as keyboard, mouse, CD-ROM, floppy etc. Especially in industrial applications however many existing systems still use legacy I/O.

Thus, the F603 provides one COM interface as well as two more USB 2.0 interfaces that extend the Single-Board Computer functionality to 4 USB ports at the front panel.

In addition an onboard 2.5" SATA hard-disk slot and a CompactFlash slot is available on the F603.

The F603 is directly plugged to the right side of the respective single-board computer. A robust connector makes for high mechanical stability. It is delivered with an 8HP front panel, replacing the 4HP front panel of a 3U single-board computer and thus resulting in a solid one-piece front panel.

4 HP extension for 3U Intel SBCs F14, F15, F17, F18, F19P, F21P
1 RS232
2 USB 2.0
2.5" SATA hard-disk slot
CompactFlash slot

I/O

USB
- Two USB 2.0 ports
- Type A connector at front panel
- UHCI implementation
- Data rates up to 480Mbit/s
- High current up to 1A
UART
- One RS232 at front panel
- Data rates 300bit/s..230kbit/s (up to 1 Mbit/s with shielded cable)
- FIFO receive and transmit buffers for high data throughput
- Handshake lines: full support

Mass Storage

Serial ATA (SATA)
- One port for onboard 2.5" hard-disk drive
- Transfer rates up to 150MB/s (depends on hard disk)
- RAID level 0/1 support (depends on CPU board)
CompactFlash card interface
- Via USB to PATA converter
- Type I
- True IDE mode
- Multiword DMA 2 and UDMA 4 support
Second CompactFlash card interface instead of SATA hard disk, via AD95 adapter (on request)
Please note that operating systems which cannot boot from removable data carriers (e.g. Windows XP) cannot boot from the CompactFlash over USB

Miscellaneous

CompactPCI J1 is assembled for increased mechanical stability and/or for power supply

Electrical Specifications

Supply voltage/power consumption:
- +5V (-3%/+5%), 50mA typ. (w/o hard disk)
- +3.3V (-3%/+5%), 95mA typ. (w/o hard disk)
MTBF: tbdh @ 40°C according to IEC/TR 62380 (RDF 2000)

Mechanical Specifications

Dimensions: conforming to CompactPCI specification for 3U boards
Mountable on right (standard) or left (option) side of the CPU
Weight: 130g (w/o hard disk and CompactFlash)

Environmental Specifications

Temperature range (operation):
- 0..+60°C up to -40..+85°C (depending on hard disk; please refer to the hard disk specifications for possible limits)
- Airflow: min. 10m³/h
Temperature range (storage): -40..+85°C
Relative humidity (operation): max. 95% non-condensing
Relative humidity (storage): max. 95% non-condensing
Altitude: -300m to + 3,000m
Shock: 15g/11ms
Bump: 10g/16ms
Vibration (sinusoidal): 2g/10..150Hz

Safety

PCB manufactured with a flammability rating of 94V-0 by UL recognized manufacturers

EMC

Tested according to EN 55022 (radio disturbance), IEC 61000-4-2 (ESD) and IEC 61000-4-4 (burst)

Software Support

Driver software can be found in the data sheet of the CPU board that you use.

F603 - Side Card USB/COM (Product Discontinued)

Features

F23PEmbedded Single Board Computer with Intel Core i3 / i5 / i7

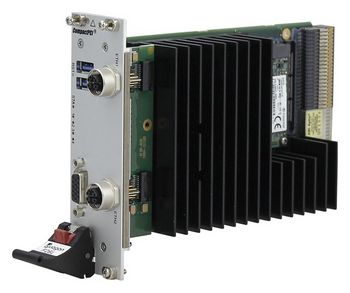

F26LEmbedded Single Board Computer with Intel Atom Processor E3900 Series
