G28I
Embedded Single Board Computer with 11th Generation Intel Xeon W-11000 Processors
Main Features
- 11th Gen Intel Xeon W Processor (Tiger Lake)
- Up to 64 GB soldered DDR4-3200 ECC RAM
- 120 GB NVMe on-board storage
- Dual 10G Ethernet (optional)
- Board Management Controller, TPM 2.0

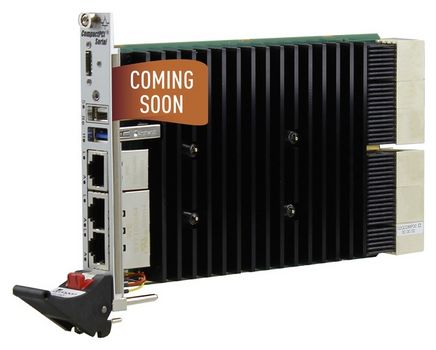

- Front I/O: 3× 1G Ethernet RJ45, 10Gbps USB-A & USB-C with DP Alt Mode

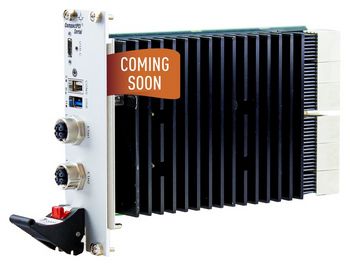

- Front I/O: 2× 1G Ethernet M12, 10Gbps USB-A & USB-C with DP Alt Mode
- Rear I/O: 1G Ethernet, PCIe, USB 10Gbps, SATA
- -5 °C to +60 °C operating temp. (system ambient)
- -40 °C to +70 °C operating temp. (system ambient)
- Long-term availability
High-End Embedded Computing

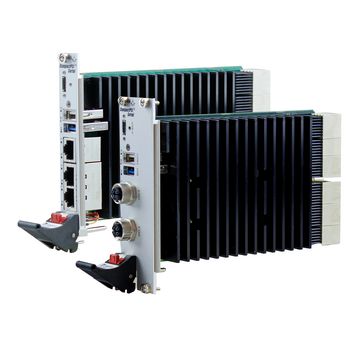

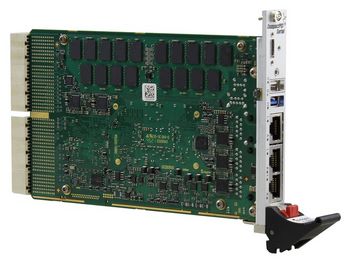

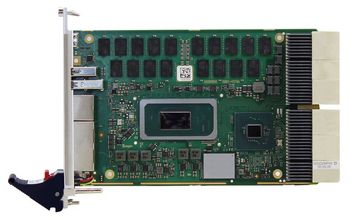

The duagon G28I is a 3U CompactPCI Serial CPU board featuring 11th Gen Intel Xeon W-11000E processors with up to 8 cores and up to 64 GB of soldered dual-channel DDR4-3200 ECC RAM. The G28I is perfect for wayside railway applications or for industrial applications. As part of a rail wayside server system, the single board computer can be used for condition monitoring. The G28I also offers reliable computing performance for medical applications, e.g., surgical robots as well as for factory automation, motion control and robotics in industrial automation.
Scalable and Rugged
CPU performance can be scaled from 25 W to 45 W TDP with configurations of 4 to 8 cores to perfectly suit operational needs even in harsh ambient temperatures of up to +60 °C. A custom solid block heat sink provides optimal heat dissipation without the use of moving parts. All components are soldered for protection against shock and vibration according to applicable DIN, EN or IEC industry standards. To make it even more enduring, coating and underfilling is available as an option. A fast 120 GB NVMe storage module is included on every G28I model.
Comprehensive Management
A versatile board management controller provides intelligent monitoring and supervision of all vital signals including supply and on-board voltages, temperatures and a watchdog for the OS. Additionally, the G28I supports Intel AMT remote out-of-band management and holds a discrete TPM module for hardware-based system security.
Flexible Front I/O

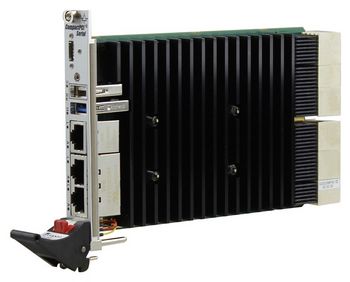

The G28I features three RJ45 Ethernet front connectors. Other front I/O include one USB 3.2 Gen 2x1 Type-A connector and one Type-C connector supporting up to USB 3.2 Gen 2x1 speed and DP Alternate Mode. An 8 HP board version with two 10G Ethernet interfaces for high data throughput and direct connection to the network backbone is available on request.
Future-safe with Certified Reliability
The G28I supports Linux and Windows environments as well as real-time operating systems. Long-term availability ensures an extended product life and future-safety. The G28I is backwards compatible to predecessors G25A (on request G28I with 10G Ethernet) and G23.
Related Products
- Intel Xeon W-11865MRE, 8 cores, 16 threads, 2.6 GHz, 45 W, -40 °C to +100 °C
- Intel Xeon W-11865MRE, 8 cores, 16 threads, 2.1 GHz, 35 W, -40 °C to +100 °C
- Intel Xeon W-11555MRE, 6 cores, 12 threads, 2.6 GHz, 45 W, -40 °C to +100 °C
- Intel Xeon W-11555MRE, 6 cores, 12 threads, 2.1 GHz, 35 W, -40 °C to +100 °C
- Intel Xeon W-11155MRE, 4 cores, 8 threads, 2.4 GHz, 45 W, -40 °C to +100 °C
- Intel Xeon W-11155MRE, 4 cores, 8 threads, 1.9 GHz, 35 W, -40 °C to +100 °C
- Intel Xeon W-11865MLE, 8 cores, 16 threads, 1.5 GHz, 25 W, 0 °C to +100 °C
- Intel Xeon W-11555MLE, 6 cores, 12 threads, 1.9 GHz, 25 W, 0 °C to +100 °C
- Intel Xeon W-11155MLE, 4 cores, 8 threads, 1.8 GHz, 25 W, 0 °C to +100 °C
- Other processor types are available on request
- System RAM
- Soldered DDR4, ECC
- 64 GB max.
- Non-volatile RAM (NVRAM): 64 kB FRAM
- SATA
- 4 × SATA Revision 3.x, backplane
- Video
- 1 × DisplayPort 1.4, USB Type-C, for service
- USB
- 1 × USB 3.2 Gen 2x1, Type-A, for service
- 1 × USB 3.2 Gen 2x1, Type-C, for service
- 4 × USB 3.2 Gen 2x1, backplane
- Ethernet
- 3 × 10/100/1000BASE-T, RJ45
- 2 × 10/100/1000BASE-T, backplane
- PCI Express
- 2 × PCIe 3.0, x8, backplane
- 1 × PCIe 3.0, x4, backplane
- 3 × PCIe 3.0, x4, backplane
- 2 × PCIe 3.0, x1, backplane
- Serial
- 1 × USB-to-UART, USB Type-A
- I2C
- 1 × backplane
- LED
- Status: board status (BMC)
- Ethernet: activity, link
- Hot-swap
- Board management controller
- Temperature measurement
- System watchdog (BMC)
- Real-time clock, buffered by supercapacitor or battery
- Trusted Platform Module 2.0
- Supply voltage: +12 V (9.5 V to 15.5 V)
- Power consumption: 76 W
- Dimensions: 3U, 4 HP
- Cooling: Air cooling, forced convection, airflow 1.5 m/s
- Operating temperature: -5 °C to +60 °C (EN 50125-3:2003, class T1, shelter N.T.C.), extended by +5 °C
- Storage temperature: -40 °C (EN 60068-2-1:2007, Ab) to +85 °C (EN 60068-2-2:2007, Bb)
- Altitude: +3000 m max. (EN 50125-3:2003, class AX)
- Humidity: 95 % RH max. (EN 50125-2:2002, building N.C.C., class T1)
- Pollution degree: EN 50124-1:2017, class PD2
- Shock: 11 ms @ 20 m/s² (EN 50125-3:2003, in a switch cabinet 1 m to 3 m from the track)
- Vibration: 2.3 m/s² (EN 50125-3:2003, in a switch cabinet 1 m to 3 m from the track)
- Electrical safety
- EN 50124-1:2017
- EN 62368-1:2014 + AC:2015
- EMC emission: EN 61000-6-4:2007 + A1:2011
- EMC immunity: EN 61000-6-2:2005
- Operating temperature: -5 °C to +60 °C (product model 02G028I00); 0 °C to +40 °C (product model 02G028I01)
- Electrical safety: EN 62368-1:2014 + AC:2015
- Flammability (PCBs): UL 94 V-0
- EMC emission
- EN 55032:2015 (multimedia equipment), class A (industrial environments)
- EN IEC 61000-6-4:2019 (generic standard, industrial environments)
- EMC immunity
- EN 55035:2017 (multimedia equipment)
- EN 61000-6-2:2005 (generic standard, industrial environments)
- Linux
- Tested with: Red Hat Enterprise Linux 9.2 - 9.x; Ubuntu 22.04 LTS
- Windows
- Windows 10 IoT Enterprise 64-bit
- Not all functions are supported
