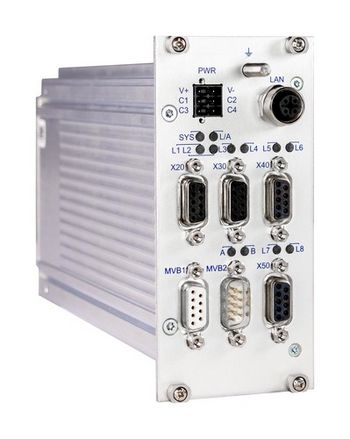

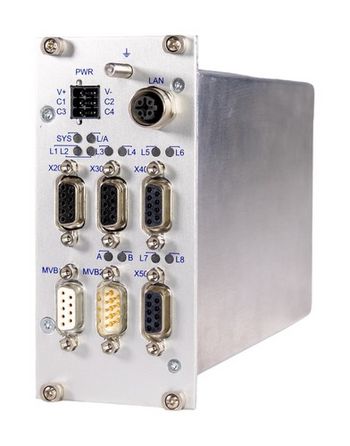

D532 - MVB to HDLC and CAN/CurrentLoop Gateway

The D532 is a multi-purpose gateway, which supports a set of communication interfaces, including MVB, RS485, RS422, CAN and Current Loop. The combination of field bus interfaces can be configured according to the application specific requirements. A powerful 32-bit CPU enables customerspecific communication protocols and applications.

The module supports line redundant EMD and ESD+ physical layer. The MVB interface complies to the TCN standard IEC 61375 and supports devices up-to class 4 including process and message data and can act as bus administrator.

The D532 provides up to four RS485 or up to two RS422 on female SUB-D connectors. Optionally the D532 can be equipped with two additional SUB-D connectors, which provide up to two CAN interfaces or up to four Current Loop interfaces. Four dedicated input pins allow "geographic addressing", i.e. all modules for one project are identical in stock but perform different functions on the vehicle.

Additionally, a command-line interface and an Ethernet interface are available for maintenance and diagnostic purposes. duagon offers  webserver to access basic diagnostic data and to configure the device remotely. Different module versions are intended to be used with nominal vehicle battery voltages  from 24V to 110V.

The D532 is designed for the harsh traction environment and conforms to the EN 50121, EN 50155, and IEC 61373 standards, e.g. by:

  • -40 °C to +70°C ambient temperature range
  • coating against humidity
  • enhanced EMI and vibration robustness

Features

  • duagons propriatery MVB controller
  • Supports MVB devices up to Class 4 including process data message data and bus administrator
  • Available for both ESD+ and EMD physical layer
  • Up to four RS485 or two RS422 interfaces
  • Optional extension board for two CurrentLoop or CAN interfaces
  • Fully compliant with IEEE 802.3, EN 50155, EN 50121, IEC 61373 and IEC 61375.

Specifications

Power consumption
<10 W Interruption voltage Class S2
Overall dimensions
128.5 × 60.6 × 171.5 mm
Weight
570g (may vary depending on the selected configuration)
Operating temperature
-40 to +70 °C, according to EN 50155; Class OT4
Storage temperature
-40 °C to +85 °C
Relative humidity
Yearly average ≤75%, 95% for 30 consecutive days max. (EN 50155)
Useful life
20 years, according to EN 50155 Class L4
