Overview

13Y003-60

VxWorks driver (MEN) for USB-to-UART bridges on F600, F601, F602, F603, F604 and F606

File Name: 13y003-60.zip| Released: 27. April, 2020

ZIP| 221 KB

SHA1 Checksum: 3703da98c07d8be95a812f95afde469ae263b244

Licensing Information

Various licenses (may contain open-source software)

Costs

This article is free of charge.

Supported Products

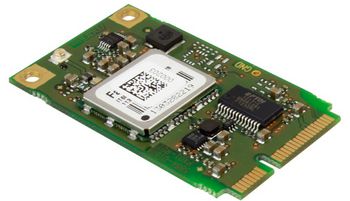

15PX01-GLONASS & GPS Interface

02F014-Intel Pentium M CPU Board

02F018-Intel Core 2 Duo CPU Board

Specifications

Supported Operating System

VxWorks 5.5.1, 6.1, 6.2, 6.3, 6.4, 6.5, 6.6

Supported Hardware Features

• TTY compliant interface (open, read, write and ioctl)
• USB-to-UART bridge (F600 with revision R00)
  • USB 2.0 compliant, full speed (12 Mbps)
  • Baud rate: 300 bit/s to 1 Mbit/s
  • Data bits: 5, 6, 7, 8
  • Stop bits: 1, 1.5, 2
  • Parity: ODD, EVEN, MARK, SPACE or NO
  • 576 bytes receive buffer, 640 bytes transmit buffer
  • Hardware/software handshaking
• USB-to-UART bridge (F600 with revision R01 and higher, F601, F602, F603, F604, F606)
  • Baud rate: 300 bit/s to 3 Mbit/s (RS485/RS433), 300 bit/s to 1 Mbit/s (RS232)
  • Data bits: 5,6, 7 or 8
  • Stop bits: 1 or 2
  • Parity: ODD, EVEN, MARK, SPACE or NO
  • Receive/transmit FIFO
  • Hardware/software handshaking
  • RS485/RS422 compatible

Included Documentation

HTML documentation
