Overview

13AD78-70

MDIS5 Windows driver (MEN) for PU2, PU3, PU4, PU5, PU6 and CCA Rack PSU controller on SMBus

File Name: 13ad78-70.zip| Released: 27. April, 2020

ZIP| 2 MB

SHA1 Checksum: 04d5c4fb3cc35eb085687b605b6ef2a2d690884a

Licensing Information

duagon-Germany-general-licensing-conditions.pdf
(PDF, 263 KB)

Costs

This article is free of charge.

Supported Products

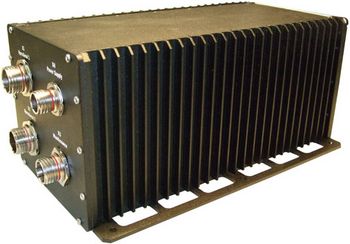

0701-0054Rackmount Enclosure, 3 Slots, 3U Cards with Conduction Cooling

17PU03-Power Supply Unit, 36 to 48 VDC, 35 W

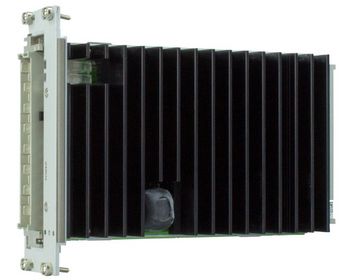

17PU04-Power Supply Unit, 72 to 110 VDC, 35 W

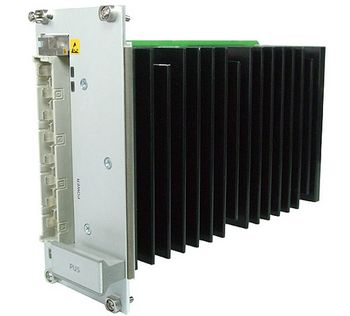

17PU05-Power Supply Unit, 110 VDC, 100 W

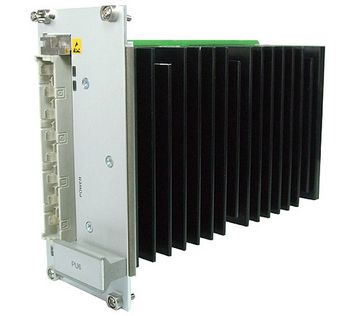

17PU06-Power Supply Unit, 24 VDC, 100 W

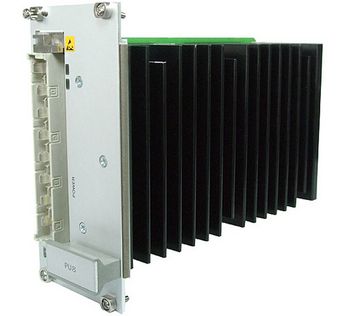

17PU08-Power Supply Unit, 36 VDC, 100 W

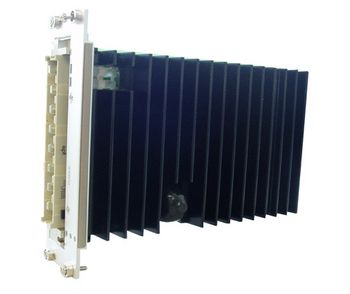

17PU02-Power Supply Unit, 24 VDC, 35 W

Specifications

Supported Operating System

• Windows XP
• Windows Vista 32-bit
• Windows Vista 64-bit
• Windows 7 32-bit
• Windows 7 64-bit

Content

Includes 13AD78-06 (source code)

Features

• Programmable Power Up Wake On Time
• Power Up/Down handshake
• Watchdog functionality
• GPIO support
• Temperature and voltage supervision

Included Documentation

HTML documentation included in ZIP file

Note

Requires MDIS5 system package with SMB2 support

Main Software

13AD78-70

MDIS5 Windows driver (MEN) for PU2, PU3, PU4, PU5, PU6 and CCA Rack PSU controller on SMBus

File Name: 13ad78-70.zip| Released: 27. April, 2020

ZIP| 2 MB

SHA1 Checksum: 04d5c4fb3cc35eb085687b605b6ef2a2d690884a
