10F019P60 - VxWorks 6.7 BSP (MEN) for F19P

VxWorks 6.7 BSP (MEN) for F19P

• Overview
• Specifications
• ...

• Specifications

Overview

10F019P60

VxWorks 6.7 BSP (MEN) for F19P

Licensing Information

duagon-Germany-general-licensing-conditions.pdf
(PDF, 263 KB)

Costs

Subject to costs | Contact Sales

Supported Products

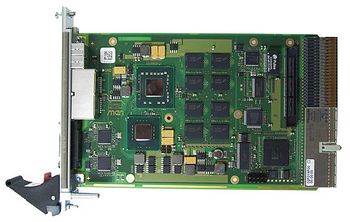

02F019PIntel Core 2 Duo CPU Board

Specifications

Supported Operating System

• VxWorks 6.7
• VxWorks 6.7 SMP

Supported Features

• CPU
  • Celeron and Core 2 Duo processor
• Memory
  • DDR3 SDRAM
• Graphics
  • VGA
  • DVI on side-card connector
• Mass Storage
  • SATA on side-card connector
  • CompactFlash via USB
• I/O
  • USB, 10 channels
  • USB keyboard
  • Ethernet: 3 Gigabit Ethernet
• PCI Express
• PCI Bus
• Real-time clock support
• Boot
  • On-board EEPROM for bootline storage
  • Boot via network, SATA disk or USB

Unsupported Software Features

Off-board interrupts and onboard USB EHCI interrupt under SMP with BIOS revisions <= 1.15

Included Documentation

target.ref documentation and readme in zip file

Main Software

10F019P60

VxWorks 6.7 BSP (MEN) for F19P

Available for download
Details

Main Software

10F019P60

VxWorks 6.7 BSP (MEN) for F19P
