G501 - SATA HDD/SSD Shuttle (Product Discontinued)

2.5" HDD or SSD

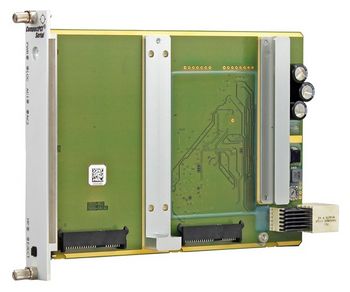

The G501 is a CompactPCI Serial hard disk drive carrier board. It is designed to carry a 2.5" SATA hard disk drive (RAID level depending on the CPU) or a solid state drive.

Front Panel Status LEDs

The unit's front panel features LEDs that signalize the board's SGPIO status while a fourth indicates the status of the internal controller's power supply.

Suitable for Railway Applications

Its compliance with the EN 50155 standard makes the board suitable for use in railway applications.


  • Hard disk drive or solid state drive shuttle
  • 2.5" SATA HDD/SSD slot
  • Four status LEDs
  • -40 °C to +85 °C
  • Compliant with EN 50155 (railways)
  • PICMG CPCI-S.0 CompactPCI Serial peripheral card
