DC2

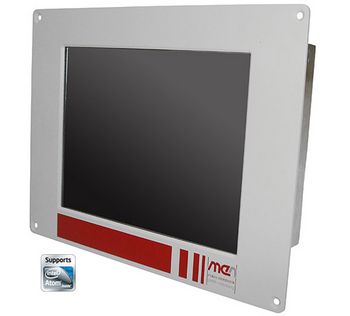

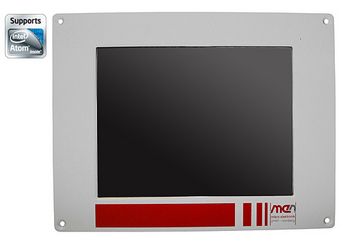

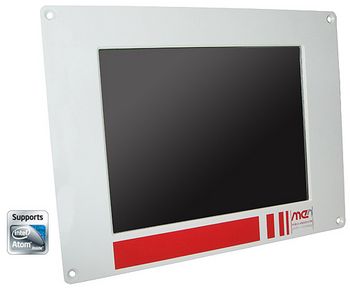

Rugged 10.4" Touch Panel PC
Main Features
- 10.4" 4:3 TFT LCD with capacitive touch panel
- 1024 x 768 pixels resolution
- Intel Atom processor
- 2 Fast Ethernet, 2 USB
- Wide-range PSU, 12/24 VDC nom.
- -40°C to +85°C operating temperature
- Fanless and maintenance-free design
- Compliant to ISO 7637-2 (E-mark for automotive), IP65 (front), IP20 (rear)
The panel PC DC2 is a rugged, fanless and maintenance-free human-machine interface (HMI) for interactive applications in transportation and industrial automation. It is designed for panel mounting and equipped with a 10.4" 4:3 LCD TFT display with a capacitive touch panel.
The DC2 is controlled by the Intel Atom XL Z520PT running at 1.33 GHz and comes with 1 GB of DDR2 SDRAM and a built-in 2-GB microSD card. The standard interfaces comprise 2 Fast Ethernet (via RJ45 connectors) and 2 USB ports as well as four binary inputs (via the 10-pin power supply connector).
The two Ethernet interfaces have switch functionality to provide Ethernet connection to subsequent intelligent displays. A temperature sensor is provided to monitor and controlthe display. All I/O signals are concentrated at the bottom of the unit.
The DC2 is equipped with an internal 10 V to 36 V (12 VDC nom. or 24 VDC nom.) wide-range power supply and able to operate in a -40°C to +70°C environment (+85°C for 10 minutes). It complies with the EN 50155, class Tx railway standard when used with an optional includable PSU suited for railway applications. All electronic components are soldered to withstand shock and vibration and prepared for conformal coating.
The unit's control electronics are directly attached to the back of the display, hence bigger screen sizes or other aspect ratios can be realized easily. Further options include other types of the Intel Atom XL processor, M12 connectors for the Ethernet interfaces, a serial interface or GPS adapter that can be added via an SA-Adapter, HD audio via a D-Sub connector and an antenna connector. A PCI Express Mini card slot (with a SIM card slot) in combination with an external antenna can be used to incorporate wireless functions like GPS, GLONASS, Wi-Fi, WIMAX, GSM/GPRS, UMTS, HSDPA and LTE.
- Intel Atom Z520PT
- 1.33 GHz processor core frequency
- 533 MHz system bus frequency
- Chipset
- Intel system controller hub US15W
- Screen size: 10.4"
- Resolution: 1024 x 768 (XGA) with aspect ratio 4:3
- Luminance: 350 cd/m²
- Contrast: 1200:1
- Response time: Ton+Toff average 25 ms
- Viewing angle: 176°(H)/176°(V)
- Backlight with brightness control
- Interface: LVDS
- Monitored and controlled by a board management controller (display is turned off at extreme temperatures)
- Capacitive touch panel
- USB-driven touch interface
- Anti-glare layer
- 1 GB DDR2 SDRAM system memory
- Soldered
- 533 MHz memory bus frequency
- microSD card slot
- 2 GB microSD card
- USB
- Two USB 2.0 host ports
- Accessible via Type A connectors
- UHCI implementation
- Data rates up to 480 Mbit/s
- Ethernet
- Two 10/100Base-T Ethernet channels
- Accessible via RJ45 connectors
- Switch functionality
- Binary inputs
- Four universal binary inputs via 10-pin power connector, e.g., for geographical addressing
- Input voltage supervision
- Temperature supervision via LM50 sensor
- Backlight control (turns off display at configurable temperatures)
- Buffer functionality for RTC and BIOS CMOS
- Reset of CPU board possible
- Wake on time
- Watchdog
- Accessible via SMBus
- Supply voltage: 12 V DC nom. or 24 V DC nom. (10 V to 36 V)
- Power consumption: 12 W typ.
- Dimensions: 267 mm x 187.7 mm x 85 mm (electronics), 310 mm x 235 mm (display frame)
- Weight: 2.3 kg
- Designed for panel mounting
- Front protected according to IP65
- Rear protected according to IP20
- Temperature range (operation):
- -20 °C to +70°C for the display panel (with automatic switch-off of the display at excess temperatures)
- -40 °C to +70°C, with up to +85°C for 10 minutes according to class TX (EN 50155) for the computer
- Display is turned off at extreme temperatures
- Conductive cooling
- Fanless operation
- Temperature range (storage): -40 °C to +85°C
- Relative humidity (operation): max. 95% non-condensing
- Relative humidity (storage): max. 95% non-condensing
- Altitude: -300 m to +3000 m
- Shock: according to EN 50155 (10.2.11)
- Vibration: according to EN 50155 (10.2.11)
- Conforming to EN 50155, EN 50121-3-2/EN 61000-4-5
- E1 certified by the German Federal Motor Transport Authority
