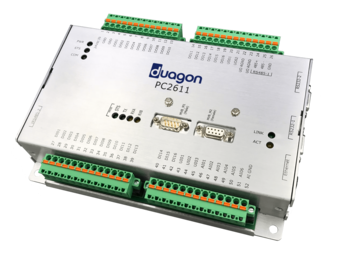

PC2611 - PC2 Configurable I/O Controller with MVB

The PC2611 has been proven to survive the rigors required for Railway Vehicles including:

Electrical surges and transients of EN 50155 / EN 50121-3-2.

Shock and vibration in accordance with EN 50155 / EN 61373.

Operating temperature range of -40°C to +70°C and relative humidity 5% to 95% non-condensing.


  • Six software configurable analogue inputs.
  • Sixteen software configurable digital inputs.
  • Sixteen low-side (sinking) digital outputs.
  • Three software configurable universal inputs (analogue or digital).
  • Two software configurable universal outputs (analogue or digital).
  • Two independent (isolated) MVB-EMD interfaces.
  • Remote I/O Expansion through isolated RS485 port.
  • 10/100 Mbps Wired Ethernet.
  • Two RS232 serial communications ports.
  • One 2-wire non-isolated RS485 serial communications port.
  • Connections for MVB-EMD via DB9.
  • MicroSD card interface.
  • Suitable for nominal battery voltages of 24VDC in accordance with EN 50155.
  • Operating temperature range: -40°C to +70°C (+85°C for 10 minutes).
  • Conformal Coating.
