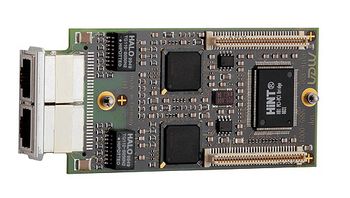

P16 - Dual 100Base-T Ethernet PC-MIP (Produkt eingestellt)

The mezzanine module P16 provides dual Ethernet functionality with a 1000 V isolation for telecom applications (e. g. routers) as well as for industrial applications (e. g. second Ethernet as fieldbus).

The P16 features two Intel 82559 Ethernet controllers, supporting 10/100Base-T via two RJ45 connectors at the front panel. The PC-MIP offers full-duplex support. The MAC address is stored in an onboard serial EEPROM.

The P16 is based on the PC-MIP ANSI mezzanine standard. It can be used as an I/O extension in any type of bus system, i.e. CPCI, VME or on any type of stand-alone SBC. Appropriate PC-MIP carrier cards in 3U, 6U and other formats are available from duagon or other manufacturers. Comparable with the larger foot print PMC mezzanine cards, PC-MIP boards also support PCI bus.

Merkmale

  • Dual 10/100Base-T Fast Ethernet
  • Dual Intel 82559 Controller
  • Dual RJ45 connector
  • Full duplex
  • Electrical isolation
  • -40 to +85°C screened versions
