10XM51-60 - VxWorks 6.8/6.9 BSP (duagon) for XM51

This VxWorks board support package (BSP) supports the hardware functions of the XM51 ESMexpress computer-on-module.

• Übersicht
• Spezifikationen
• ...

• Spezifikationen

Übersicht

10XM51-60

VxWorks BSP (duagon) for XM51

Lizenz-Informationen

duagon-Germany-general-licensing-conditions.pdf
(PDF, 263 KB)

Kosten

Kostenpflichtig |  Ansprechpartner Vertrieb

Unterstützte Produkte

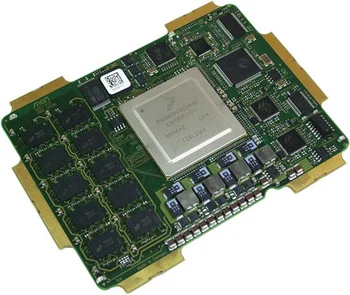

15XM51-ESMexpress COM with QorIQ P4080

Spezifikationen

Supported Operating System

• VxWorks 6.8
• VxWorks 6.9

Supported Hardware Features

• CPU
  • QorIQ P4080, P4040, P3041
  • Up to eight cores supported
• Memory
  • Up to 2 GB DDR3 SDRAM (32-bit support)
  • Boot Flash (only read access)
  • FRAM
  • EEPROM
• Mass Storage
  • SATA
• I/O
  • USB 2.0 host interfaces
  • UART-to-USB interface (default console)
  • 10/100/1000Base-T Ethernet
  • PCI Express
  • 3 GPIO lines (GPIO/user LED, wake and power button pins implemented as GPIOs)
• Miscellaneous
  • I2C interface to carrier board
  • Real-time clock, temperature sensor, power supervision and watchdog
  • Interrupt routing to eight processor cores

Included Documentation

• Readme file
• HTML documentation
