10EM09-60 - VxWorks 6.4/6.5 BSP (duagon) for A17, EK9, EM9, EM9A, F50C, F50P and XM50

VxWorks 6.4/6.5 BSP (duagon) for A17, EK9, EM9, EM9A, F50C, F50P and XM50

• Übersicht
• Spezifikationen
• Bestellinformationen
• Software
• ...

• Spezifikationen
• Bestellinformationen
• Software

Übersicht

10EM09-60

VxWorks 6.4/6.5 BSP (duagon) for A17, EK9, EM9, EM9A, F50C, F50P and XM50

Nicht zum Herunterladen verfügbar

Lizenz-Informationen

duagon-Germany-general-licensing-conditions.pdf
(PDF, 263 KB)

Kosten

Kostenpflichtig |  Ansprechpartner Vertrieb

Unterstützte Produkte

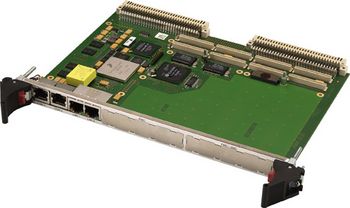

01A017-Embedded Single Board Computer with PowerPC MPC8548

02F050CPowerPC MPC8548 Conduction Cooled SBC

02F050PEmbedded Single Board Computer with QorIQ MPC8548

08EK09-ESM Starter Kit with EM9 / MPC8548 COM

15EM09-Embedded System Module COM with MPC8548

15EM09AESM COM with PowerPC MPC8548

15XM50-ESMexpress COM with PowerPC MPC8548

Spezifikationen

Supported Operating System

• VxWorks 6.4
• VxWorks 6.5

Supported Hardware Features

• CPU
  • MPC8543, MPC8548
  • MPC85xx on-chip units
  • L1 and L2 data caches
  • MMU
  • EPIC interrupt controller
• Memory
  • Up to 2GB DDR2 SDRAM
  • FRAM
  • EEPROM
• Mass Storage
  • Onboard NAND IDE 16Z070_IDEDISK
  • IDE/ATA: 16Z016_IDE and 16Z023_IDENHS
  • SiI3114 SATA (XM50/F50C/F50P)
• I/O
  • TSEC1/2/3/4 GBit Ethernet
  • MPC854x DUART
  • USB
  • WindML devices (with EK9): graphics: 16Z044_DISP in onboard FPGA; touch: 16Z031_TOUCH controller in onboard FPGA with ADS7873A touch controller; serial lines: 16Z125_UART
• Miscellaneous
  • PCI/PCIe
  • VMEbus TSI148 (A17)
  • I²C
  • Watchdog
  • Supervision circuit LM81
  • RTC

Included Documentation

• target.ref documentation
• HTML documentation

Haupt-Software

10EM09-60

VxWorks 6.4/6.5 BSP (duagon) for A17, EK9, EM9, EM9A, F50C, F50P and XM50

Zum Herunterladen verfügbar
Details

Haupt-Software

10EM09-60

VxWorks 6.4/6.5 BSP (duagon) for A17, EK9, EM9, EM9A, F50C, F50P and XM50

Nicht zum Herunterladen verfügbar

Zugehörige Software

16p599-00.zip

Nios PMC USM FPGA Development Package (MEN) Nicht zum Herunterladen verfügbar
Details
