10CB30C90 - Linux BSP (duagon) for CB30C and CB30

Linux BSP (duagon) for CB30/CB30C safe ultra-rugged computer-on-module

• Übersicht
• Spezifikationen
• Dokumentationen
• ...

• Spezifikationen
• Dokumentationen

Übersicht

10CB30C90

Linux BSP (duagon) for CB30 and CB30C (on request)

Lizenz-Informationen

Verschiedene Lizenzen (können Open-Source-Software enthalten)

Kosten

Dieser Artikel ist kostenlos

Unterstützte Produkte

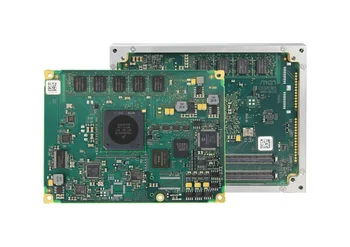

15CB30CVital Rugged COM Express Module with QorIQ P1022

Spezifikationen

Supported Operating System

• Linux 3.14
• Tested using Yocto Linux 1.7.3 (dizzy)

Content

• Prebuilt binaries (kernel, device tree, rootfs)
• meta-men layer
• 10CB30C90 layer

Supported Hardware Features

• CPU
  • NXP QorIQ P1013/P1022 processor
• Memory
  • Up to 2 GB DDR3 SDRAM soldered, ECC
  • 32 MB Boot Flash
  • FRAM
  • EEPROM
• Mass Storage
  • SATA
  • eMMC storage (SDHC)
• I/O
  • USB
  • Ethernet
  • PCI Express
  • UART
  • I2C
  • SPI
  • GPIO
• Supervision and Control
  • Board Management Controller
  • SUPV (watchdog, event log, status frame)
  • Temperature measurement
  • Real-time clock

Included Documentation

PDF user manual available as a separate download

Haupt-Software

10CB30C90

Linux BSP (duagon) for CB30 and CB30C (on request)

Dokumentation

Linux BSP for CB30C and CB30 User Manual
(PDF, 632 KB)
