Merkmale
- 16 powerless-switching relays
- 1 µA to 50 mA (max. 50 V), ±1.25 V, ±2.5 V
- One throw-over contact each
- No separate supply voltage
- Low heat development
- Optical isolation
- -40 °C to +85 °C
M56 - 16-Channel Analog Multiplexer (Produkt eingestellt)

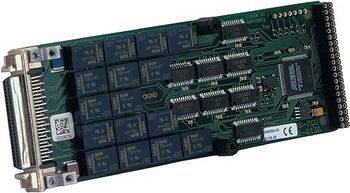

The mezzanine card M56 is an M-Module which has 16 relay channels with throw-over contacts. It is a switching matrix for measuring signals with different voltage levels and different ground references.
The powerless-switching relays offer great advantages: since there are no thermoelectric potentials, the M56 can "process" very small voltage and current.
The M56 is based on the M-Module ANSI mezzanine standard. It can be used as an I/O extension in any type of bus system, i.e. CPCI, VME or on any type of stand-alone SBC. Appropriate M-Module carrier cards in 3U, 6U and other formats are available from duagon or other manufacturers.
