U.3/U.2 PCIe 3.0 x4 Expansion Board
3U CompactPCI Serial
Neues Produkt
Hauptmerkmale
- U.3/U.2 NVMe (PCIe 3.0 x4)
- Easy-to-use drive swap, optional lock and key
- 5 programmable status LEDs, button
- Programmable temperature-dependent drive control
- -40 °C to +85 °C operating temperature (board-only)
- Compliant with EN 50155 (railways)
- Long-term availability
Beschreibung
For U.3 and U.2 NVMe Drives

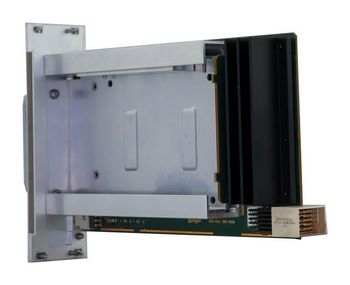

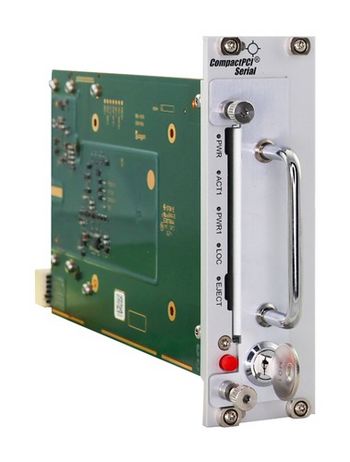

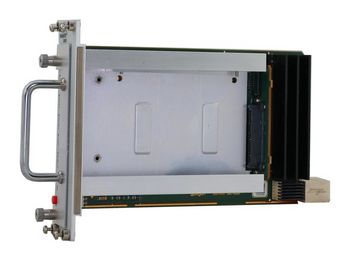

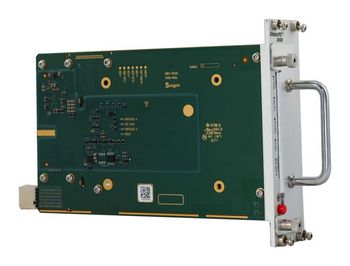

The G508 is a CompactPCI Serial storage expansion board able to carry a U.3 or U.2 NVMe drive with a 2.5” form factor and up to 15 mm in height. It features a PCIe 3.0 x4 backplane connection for transfer speeds of up to 3940 MB/s.
Thermal Monitoring and Control
Thermal sensors allow for flexibility with specific user applications and thermal conditions, e.g., to facilitate use of SSDs with limited temperature range, power sequencing and customized startup scenarios.
Front Panel Status LEDs

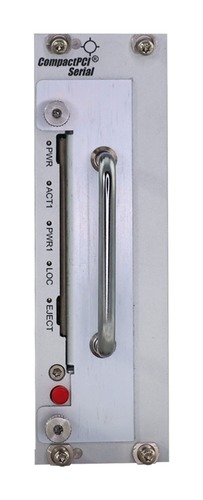

The front panel features a total of five LEDs: board power, configurable location and ejection status indicators as well as power and activity indicators for the installed drive.
Suitable for Railway Applications
The G508 complies with the EN 50155 standard for use in railway applications.
Interfaces
- SSD/HDD slot
- 1 × U.3/U.2 2.5"; NVMe (PCIe 3.0 x4)
- PCI Express: 1 × PCIe 3.0 x8, backplane
Supervision and Management
- Temperature measurement
- Drive control
Electrical Specifications
- Supply voltage: +12 V (-10 % / +10 %)
- Power consumption: 2 W (board-only), drive power 25 W max.
Mechanical Specifications
- Dimensions: 3U, 8 HP (3U, 6 HP on request)
- Cooling: Air cooling, forced convection, airflow 2.5 m/s
- Protection rating: IP20
- Weight: 319 g (no drive assembled)
Product Compliance: Standard
CompactPCI Serial: CompactPCI Serial PICMG CPCI-S.0 Specification R2.0
Product Compliance: Rail - Rolling Stock
- Compliance level: This product is prepared for use in EN 50155 systems. Some parameters are system-dependent and are specified on system level.
- Operating temperature: -40 °C to +85 °C (EN 50155:2021, Tmax/PCB = +85 °C; designed for use in OT4+ST1 systems) (board-only)
- Equipment location
- EN 50155:2021, location 1, closed electrical operating area
- EN 50155:2021, location 2, cabin and interiors
- Rapid temperature variations: EN 50155:2021, class H1, no requirements
- Storage temperature: -40 °C (EN 50155:2021) to +85 °C (EN 60068-2-2, Bb) (board-only)
- Altitude: +3000 m max. (EN 50125-1:2014, class AX)
- Pollution degree: EN 50124-1:2017, class PD2
- Humidity: +55 °C and +25 °C, 100 % RH max. (EN 50155:2021)
- Shock: 30 ms @ 50 m/s² (EN 61373:2010/AC:2017-09, vehicle body, cat. 1, class B)
- Vibration: 10 min @ 2.02 m/s² (functional) and 5 h @ 11.44 m/s² (long-life) (EN 61373:2010/AC:2017-09, vehicle body, cat. 1, class B, double acceleration)
- Electrical safety
- EN 50155:2021
- EN 50153:2014 + A1:2017 + A2:2020
- EN 50124-1:2017
- EN ISO 13732-1:2008
- Fire protection: EN 45545-2:2020, EL9, HL3
- EMC emission
- EN 50121-3-2:2016 + A1:2019
- Regelung Nr. EMV 06 :2019-05-09 (2.0), Anhang E: Messung an Ger�ten, Schutzklasse S1
- Regelwerk 50.02.01 :2021-12-01, 12.3.2. EMV - Funk, prequalified according to electronic equipment tests defined by Deutsche Bahn EMV 06 standard, class S1, for risk minimization in finished vehicle test
- EMC immunity: EN 50121-3-2:2016 + A1:2019
- Protective coatings: EN 50155:2021, class PC2 (Any PCB protected on both sides)
- Useful life: 20 years (EN 50155:2021, class L4)
Product Compliance: Rail - Wayside Non-Safety Related
- Operating temperature: -40 °C to +70 °C (EN 50125-3:2003, class T2, cubicle, with class T2 maximum extended by 5 °C) (board-only)
- Storage temperature: -40 °C (EN 60068-2-1:2007, Ab) to +85 °C (EN 60068-2-2:2007, Bb) (board-only)
- Altitude: +3000 m max. (EN 50125-3:2003, class AX)
- Pollution degree: EN 50124-1:2017, class PD2
- Humidity: 95 % RH max. (EN 50125-3:2003, building N.C.C., class T1/T2/TX)
- Humidity - Condensation: Non-condensing
- Shock: 11 ms @ 20 m/s² (EN 50125-3:2003, in a switch cabinet 1 m to 3 m from the track)
- Vibration: 2.3 m/s² (EN 50125-3:2003, in a switch cabinet 1 m to 3 m from the track)
- Electrical safety
- EN 50124-1:2017
- EN 62368-1:2014 + AC:2015
- EMC emission: EN 50121-4:2016+A1:2019
- EMC immunity: EN 50121-4:2016+A1:2019
Product Compliance: Information Technology Equipment
- Operating temperature: -40 °C (EN 60068-2-1:2007, Ae) to +85 °C (EN 60068-2-2:2007, Be) (board-only)
- Storage temperature: -40 °C (EN 60068-2-1:2007, Ab) to +85 °C (EN 60068-2-2:2007, Bb) (board-only)
- Altitude: +3000 m max. (EN 62368-1:2014 + AC:2015)
- Electrical safety: EN 62368-1:2014 + AC:2015
- Flammability (PCBs): UL 94 V-0
- EMC emission: EN 55032:2015+A11+A1:2020 (multimedia equipment), class A (industrial environments)
- EMC immunity: EN 55035:2017 + A11:2020 (information technology equipment)
Reliability
MTBF: 1 880 856 h predicted @ 40 °C according to IEC/TR 62380 (RDF 2000) (board-only)
Software Support
Linux
- Tested with: Ubuntu 24.04 LTS
Standard Models
02G508-00
3U CPCI Serial, 8HP, 1x U.3/U.2 PCIe 3.0 x4 expansion board, lockable, -40 °C to +85 °C, conformal coating
02G508-01
3U CPCI Serial, 8HP, 1x U.3/U.2 PCIe 3.0 x4 expansion board, -40 °C to +85 °C, conformal coating
