G212
Wireless Network Board for 2 PCIe and 2 SIM Cards
Hauptmerkmale
- Up to 2 PCI Express Mini Cards (full-size)
- ExpressCard/34 or 54 modules optional
- For cards with internal PCIe and USB interface
- For HF applications (WLAN, UMTS, GPS, GSM, HSDPA)
- -40 °C to +85 °C
- PICMG CPCI-S.0 CompactPCI Serial peripheral card

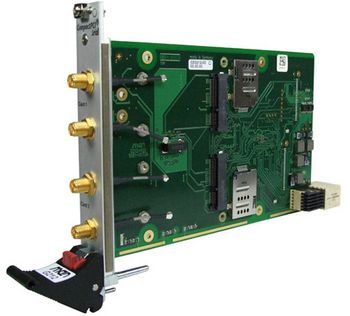

The G212 is a rugged single Eurocard CompactPCI Serial carrier board supporting the PCI Express Mini Card standard or, as an option, the ExpressCard standard. ExpressCard is the successor of the CardBus standard and offers different construction sizes aswell as connection via PCI Express or USB 2.0.

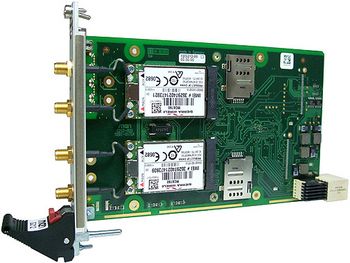

The standard version of the G212 offers two PCI Express Mini Card slots. It allows to use all types of cards for HF applications, for example GPS, WLAN, UMTS, GSM, or HSDPA. Each card is connected to two robust redundant external SMA antenna connectors at the front panel of the G212.
Using these standard cards that give access to the whole world of common notebook PC expansions is a fast and easy way to extend the functionality of a CompactPCI Serial system as well.
The G212 is designed for -40°C to +85°C operating temperature and prepared for conformal coating in order to be used also in harsh and mobile environments. The final environmental qualification depends on the respective cards used on the carrier.
