G201
Quad USB 3.0 Interface Board
Hauptmerkmale
- 4 USB 3.0 host interfaces
- Data rate up to 5 Gbit/s per direction per port
- -40 °C to +85 °C
- PICMG CPCI-S.0 CompactPCI Serial peripheral card

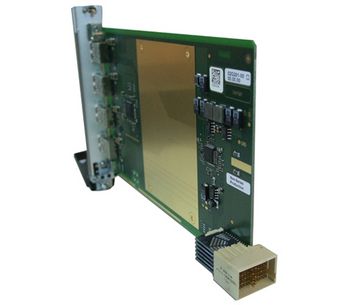

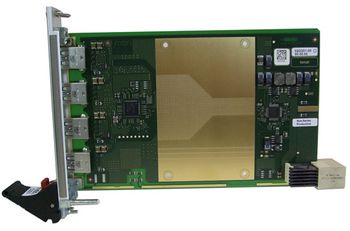

The G201 is a CompactPCI Serial peripheral board offering four USB 3.0 host interfaces with a data rate of up to 5 Gbit/s per direction per port (2.28 Gbit/s measured). It can be used in combination with a CompactPCI Serial or CompactPCI PlusIO CPU boardin a CompactPCI Serial or hybrid system. It is especially suited for connection of external data storage media or devices with high data transfer rate requirements, e.g. high-speed video cameras.

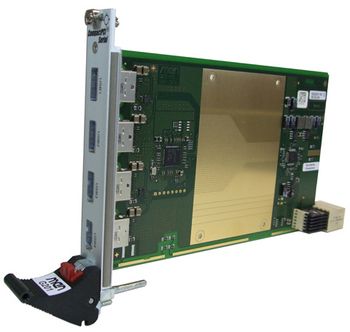

The 4HP single Eurocard provides four USB 3.0 Standard-A connectors at the front panel.The interfaces are controlled by an xHCI controller which is connected to the backplane via a PCI Express x1 link.
The G201 is screened for extended operating temperature and prepared for conformal coating for use in harsh and mobile environments.
- 4 × USB 3.0 host
- Standard-A connectors at front panel
- Data rate up to 5 Gbit/s per direction per port (2.28 Gbit/s measured)
- Compliance with CompactPCI Serial PICMG CPCI-S.0 Specification
- Peripheral slot
- Host connection: One PCI Express x1 link
- PCIe 2.1 support
- Data rate up to 500 MB/s in each direction (5 Gbit/s per lane)
- +12 V (-5%/+5%), 1 W typ., max. 1.8 W without external load, max. 28 W with 4x 1 A (25 W) load on 5 V USB ports
- Dimensions: conforming to CompactPCI Serial specification for 3U boards
- Front panel: 4 HP with ejector

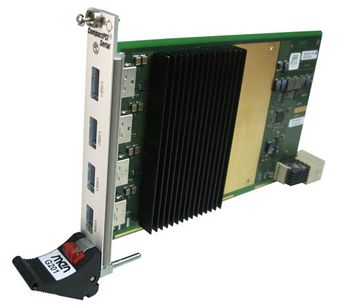

- Weight: 116 g (w/o heat sink)
- Cooling
- Air cooling, forced convection, airflow 1.0 m/s
- Conduction cooling (optional)
- Temperature range (operation):
- -40 °C to +85 °C
- Airflow: min. 1.0 m/s
- Temperature range (storage): -40 °C to +85 °C
- Relative humidity (operation): max. 95% non-condensing
- Relative humidity (storage): max. 95% non-condensing
- Altitude: -300 m to +3000 m
- Shock: 50 m/s², 30 ms (EN 61373)
- Vibration (function): 1 m/s², 5 Hz - 150 Hz (EN 61373)
- Vibration (lifetime): 7.9 m/s², 5 Hz - 150 Hz (EN 61373)
- Flammability (PCBs): UL 94 V-0
- Electrical Safety: EN 60950 (Information technology equipment)
- Windows
- Linux (kernel versions > 2.6.32)
