F608 - Side Card for RAID Systems

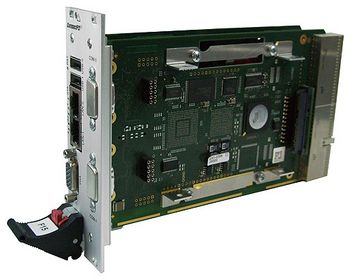

F608 3U CompactPCI Side Card for RAID Systems

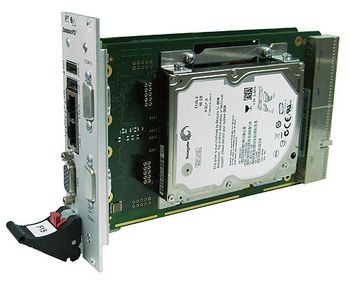

F608 configuration example with hard disk

The F608 is a 4HP SATA extension card for 3U Intel based CompactPCI single-board computers. It can be used in combination with the F14 and compatible CPU boards.

It offers four SATA interfaces over a SATA port multiplier via PCI Express as well as one SATA slot on-board (from the chipset). Two individually configurable UARTs are accessible via D-Sub connector at the front. Two USB and two PCI Express links are available via rear I/O. As an option, the F608 also offers the possibility to realize two optical Ethernet interfaces via SFP.

The F608 is directly plugged to the right side of the respective single-board computer. A robust connector makes for high mechanical stability. It is delivered with an 8HP front panel, replacing the 4HP front panel of a 3U single-board computer and thus resulting in a solid one-piece front panel. The operating temperature range is 0..60°C.

4/8 HP extension for 3U Intel SBCs F14, F15, F17, F18, F19P, F21P
4 SATA ports via J2 rear I/O
RAID 0, 1 and 5 support
CompactPCI PlusIO compliant
1 SATA hard-disk slot 2.5" on board
2 COMs via SA-Adapters
Optical isolation depending on SA-Adapter
Two optical Gigabit Ethernet interfaces via SFP as an option

Mass Storage

One serial ATA (SATA) port for onboard 2.5" hard-disk drive
- Transfer rates up to 150MB/s (depends on hard disk)
- RAID level 0/1 support (depends on CPU board)
Four serial ATA (SATA) ports via rear I/O
- Onboard SATA controller via one PCI Express lane from the chipset
- Port multiplier
- Transfer rates up to 150MB/s
- RAID level 0/1/5 support

UART

Two at front panel
Physical interface using SA-Adapter via 10-pin connector
RS232..RS422, isolated or not
Only full duplex operation for RS422
Data rates up to 230.4kbit/s
FIFO receive and transmit buffers for high data throughput
Handshake lines: full support; lines depend on SA-Adapters

USB

Two 2.0 host ports via rear I/O
Data rates up to 480Mbit/s

PCI Express

Two x1 links via rear I/O
Data rate 250MB/s in each direction (2.5 Gbit/s per lane)

Miscellaneous

CompactPCI J1 is assembled for increased mechanical stability and/or for power supply
CompactPCI J2 is used for rear I/O

Electrical Specifications

Supply voltage/power consumption:

+5V (-3%/+5%), 3.8A
+3.3V (-3%/+5%),0.8A

Mechanical Specifications

Dimensions: conforming to CompactPCI specification for 3U boards
Mountable on right side of the CPU
Weight: 150g (w/o hard disk and SA-Adapters)

Environmental Specifications

Temperature range (operation):
- 0..+60°C
- Airflow: 1.0m/s
Temperature range (storage): -40..+85°C
Relative humidity (operation): max. 95% non-condensing
Relative humidity (storage): max. 95% non-condensing
Altitude: -300m to + 3,000m
Shock: 15g/11ms
Bump: 10g/16ms
Vibration (sinusoidal): 1g/10..150Hz

MTBF

1,944,987h @ 40°C according to IEC/TR 62380 (RDF 2000)

Safety

PCB manufactured with a flammability rating of 94V-0 by UL recognized manufacturers

EMC

Conforming to EN 55022 (radio disturbance), IEC 61000-4-2 (ESD) and IEC 61000-4-4 (burst)

Software Support

Driver software can be found in the data sheet of the CPU board that you use.
