F605
Side Card XMC/PMC
3U CompactPCI
Eingestelltes Produkt
Hauptmerkmale
- 4 HP extension for 3U Intel SBCs F15, F17, F18, F19P
- 1 XMC slot (PCIe 1 x4 link or 2 x1 links)
- or 1 PMC slot (32/64 bits, 33/66/133MHz, PCI-X)
- PMC rear I/O support via J2 (only in 32-bit backplane)
- -40°C to +85°C with qualified components
Beschreibung

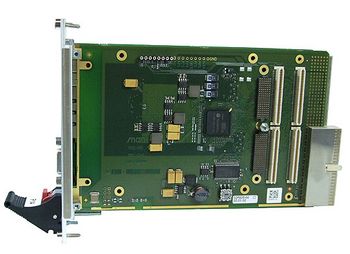

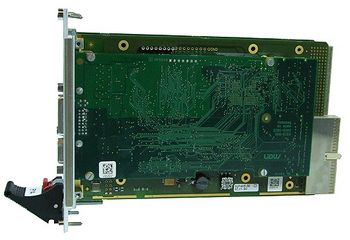

The F605 is a 4HP XMC or alternatively PMC extension card for 3U Intel based CompactPCI single-board computers F15, F17, F18 and F19P.
The XMC slot supports either one PCI Express link with 4 lanes on one XMC connector or 1 link with one lane on each ofthe two XMC connectors . The PMC slot can be used for 32/64 bit and 33/66 MHz PMC cards and supports up to 133 MHz PCI-X. The board detects automatically whether an XMC or a PMC is plugged.

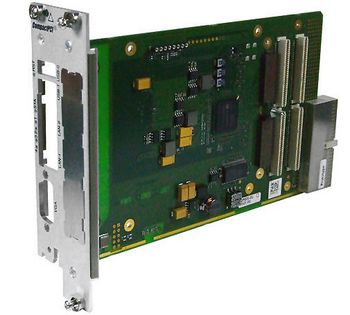

The F605 is directly plugged to the right side of the respective single-board computer. A robust connector makes for high mechanical stability. It is delivered with an 8HP front panel, replacing the 4HP front panel of a 3U single-board computer and thus resulting in a solid one-piece front panel.
XMC Slot
- Via one PCI Express link with four lanes from the side-card connector
- Compliant with XMC standard VITA 42.3-2006
- Two configurations adjustable via hex switch
- One PCI Express link with four lanes on J15 or
- Two links with one lane each on J15 and J16
PMC Slot
- Via PCI Express to PCI-X Bridge
- Support of PCI-X or PCI local bus specification 2.2
- Support of one PCI Express link with up to four lanes
- 32/64-bit, 33/66MHz
- PCI-X, 133MHz
Electrical Specifications
- Supply voltage/power consumption:
- +12V (-5%/+5%) for XMC and PMC
- +5V (-5%/+5%) for PMC
- +3.3V (-5%/+5%) for XMC and PMC
- -12V (-10%/+10%), 100mA (generated onboard for XMC and PMC)
- Power supply must be provided from the backplane via the CompactPCI J1 connector
- MTBF: 982,267h @ 40°C according to IEC/TR 62380 (RDF 2000)
Mechanical Specifications
- Dimensions: conforming to CompactPCI specification for 3U boards
- Mountable on right side of the CPU
- Weight: 144g (without XMC/PMC)
Environmental Specifications
- Temperature range (operation):
- -40..+85°C
- Airflow: min. 10m³/h
- Temperature range (storage): -40..+85°C
- Relative humidity (operation): max. 95% non-condensing
- Relative humidity (storage): max. 95% non-condensing
- Altitude: -300m to + 3,000m
- Shock: 15g/11ms
- Bump: 10g/16ms
- Vibration (sinusoidal): 1g/10..150Hz
Safety
PCB manufactured with a flammability rating of 94V-0 by UL recognized manufacturers
EMC
Tested according to EN 55022 (radio disturbance), IEC 61000-4-2 (ESD) and IEC 61000-4-4 (burst)
Software Support
XMC and PMC drivers as supported
