F604
Side Card FireWire
Hauptmerkmale
- 4 HP extension for 3U Intel SBCs F14, F15, F17, F18, F19P, F21P
- 1 IEEE 1394 interface
- 1 DVI-D Single Link
- 1 HD Audio (in or out)
- 1 or 2 RS232
- 2.5" SATA hard-disk slot

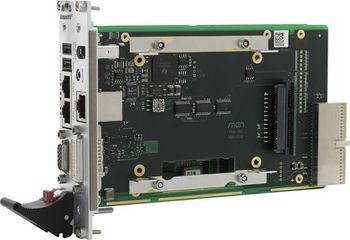

The F604 is a 4HP FireWire and multimedia extension card for 3U Intel based CompactPCI single-board computers. It can be used in combination with the F14 and compatible CPU boards. The IEEE 1394 high-speed serial bus is often used in combination with modern high-end digital camera equipment instead of USB. Thus, the F604 side-card extends the standard features of a powerful multi-core or Pentium M CPU board by one 400 MBit/s FireWire interface connected via PCI Express links. It further provides a DVI-D single link port, an HD audio - in or out - port as well as one, optionally two COM interfaces.
In addition an onboard 2.5" SATA hard-disk slot is available on the F604.
The F604 is directly plugged to the right side of the respective single-board computer. A robust connector makes for high mechanical stability. It is delivered with an 8HP front panel, replacing the 4HP front panel of a 3U single-board computer and thus resulting in a solid one-piece front panel.
- FireWire
- One FireWire connector at front panel
- According to IEEE 1394
- Full 400 Mbit/s via PCI Express
- Remote feeding 12V/1.5A (power class 1)
- For connection of FireWire devices (F604 has no GUID)
- DVI
- One DVI-D connector at front panel
- Single link
- SDVO PanelLink transmitter
- Maximum resolution: 1600 x 1200 pixels
- 60Hz refresh rate
- Audio
- One HD (high definition) audio codec at front panel
- Symmetric stereo output (two 185mW mono amplifiers)
- Switchable to stereo input
- UART
- One RS232 via adapter cable (see Accessories)
- Two RS232 via customized adapter cable (optional)
- One RJ45 connector at front panel
- Data rates 300bit/s..230kbit/s (up to 1 Mbit/s with shielded cable)
- FIFO receive and transmit buffers for high data throughput
- Handshake lines: CTS, RTS for first COM
- One port for onboard 2.5" hard-disk drive
- Transfer rates up to 150MB/s (depends on hard disk)
- RAID level 0/1 support (depends on CPU board)
- Supply voltage/power consumption:
- +5V (-3%/+5%), 440mA typ. (w/o hard disk)
- +3.3V (-3%/+5%), 390mA typ. (w/o hard disk)
- MTBF: 947,377h @ 40°C according to IEC/TR 62380 (RDF 2000)
- Dimensions: conforming to CompactPCI specification for 3U boards
- Mountable on right (standard) or left (option) side of the CPU
- Weight: 146g (w/o hard disk)
- Temperature range (operation):
- 0..+60°C up to -40..+85°C (depending on hard disk; please refer to the hard disk specifications for possible limits)
- Airflow: min. 10m³/h
- Temperature range (storage): -40..+85°C
- Relative humidity (operation): max. 95% non-condensing
- Relative humidity (storage): max. 95% non-condensing
- Altitude: -300m to + 3,000m
- Shock: 15g/11ms
- Bump: 10g/16ms
- Vibration (sinusoidal): 2g/10..150Hz
- Driver software for the UART interface and the FireWire interface for Windows, Linux (to be verified), VxWorks (to be verified), QNX (on request)
- For more information on supported operating system versions and drivers see Software.
- Further information can be found in the data sheet of the CPU board that you use.
