F213
PMC Carrier Board for 1 Mezzanine Card
3U CompactPCI
Eingestelltes Produkt
Hauptmerkmale
- 4 HP 32-bit/33-MHz CompactPCI
- 1 32-bit/33-MHz or 66-MHz PMC slot
- Optional Mini PCI card slot
- -40 °C to +85 °C
Beschreibung

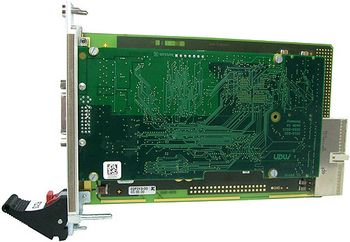

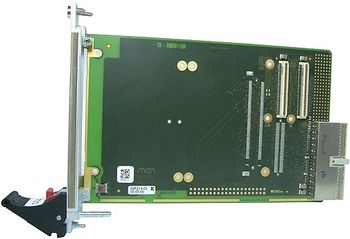

The F213 is a rugged single Eurocard CompactPCI carrier board supporting the PMC mezzanine standard or, as an option, the Mini PCI card standard.
The standard version of the F213 offers one PMC slot with a 32-bit and 33-MHz or 66-MHz data transfer rate. Using mezzanine carrier cards like the F213 is a fast and easy way to extend the functionality of any CompactPCI system based on the huge offer of PMC modules available on the market.
The F213 is designed for -40°C to +85°C operation temperature using qualified components and prepared for conformal coating in order to be used also in harsh and mobile environments. The final environmental qualification depends on the respective cards used on the carrier.
Mezzanine Slots
- One PMC slot
- 32-bit, 33MHz or 66MHz

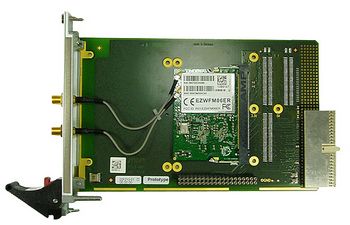

- Or one Mini PCI card slot
- Type III (A and B)
- 32-bit/33MHz
CompactPCI Bus
- Compliance with CompactPCI Core Specification PICMG 2.0 R3.0
- Peripheral slot
- 32-bit/33-MHz PCI-to-PCI adapter
- V(I/O): +3.3V (or +5V adjustable via CompactPCI key)
Electrical Specifications
- Supply voltage/power consumption:
- +5V (±3% typ.), depending on mezzanine
- +3.3V (±3% typ.)
- +12V (-5%/+5%) for PMC
- -12V (-5%/+5%) for PMC
- MTBF: 4,888,478h @ 40°C according to IEC/TR 62380 (RDF 2000)
Mechanical Specifications
- Dimensions: conforming to CompactPCI specification for 3U boards
- Front panel: 4HP with ejector
- Weight: 124g (without PMC or Mini PCI card)
Environmental Specifications
- Temperature range (operation):
- -40..+85°C
- Airflow: depending on mezzanine
- Conduction cooling (on request)
- Temperature range (storage): -40..+85°C
- Relative humidity (operation): max. 95% non-condensing
- Relative humidity (storage): max. 95% non-condensing
- Altitude: -300m to + 3,000m
- Shock: according to EN 50155; EN61373 category 1; class B
- Bump: 10g/16ms
- Vibration (sinusoidal): 2g/10..150Hz
Safety
PCB manufactured with a flammability rating of 94V-0 by UL recognized manufacturers
EMC
Tested according to EN55011 Class A, EN50121-3-2 (radio disturbance); EN 50155, EN50121-3-2, EN61000-4-2 (ESD); EN 50121-3-2, EN 61000-4-5 (surge), EN 50155, EN50121-3-2, EN61000-4-4 (burst)
