F212U
Triple USB 2.0 Interface Board
3U CompactPCI
Eingestelltes Produkt
Hauptmerkmale
- 3 USB 2.0 interfaces
- 32-bit/33-MHz CompactPCI
- -40 °C to 85 °C
Beschreibung

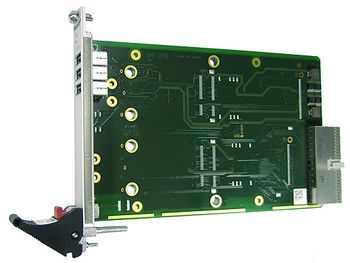

The F212U is a rugged single Eurocard CompactPCI board with three USB 2.0 interfaces at the front. The interfaces support OHCI and EHCI.
The F212U is designed for -40°C to +85°C operation temperature (screened) and prepared for conformal coating in order to be used also in harsh and mobile environments.
It is an ideal extension of a CompactPCI Intel or Power PC system if the USB interfaces provided by the CPU board or the side card are not sufficient.
USB
- Three USB 2.0 host ports
- Type A connectors at front panel
- OHCI implementation
- Data rates up to 480Mbit/s
- No booting support
CompactPCI Bus
- Compliance with CompactPCI Core Specification PICMG 2.0 R3.0
- Peripheral slot
- 32-bit/33-MHz PCI-to-USB bridge
- V(I/O): +3.3V (+5V tolerant)
Electrical Specifications
Supply voltage/power consumption:
- +5V (-3%/+5%), depending on plugged USB devices, max. current without USB devices: 25mA
- +3.3V supply voltage for board is generated onboard
Mechanical Specifications
- Dimensions: conforming to CompactPCI specification for 3U boards
- Front panel: 4HP with ejector
- Weight: 110g
Environmental Specifications
- Temperature range (operation):
- -40..+85°C
- Airflow: min. 1.0m/s
- Conduction cooling (on request)
- Temperature range (storage): -40..+85°C
- Relative humidity (operation): max. 95% non-condensing
- Relative humidity (storage): max. 95% non-condensing
- Altitude: -300m to + 3,000m
- Shock: 15g/11ms
- Bump: 10g/16ms
- Vibration (sinusoidal): 1g/10..150Hz
MTBF
tbd @ 40°C according to IEC/TR 62380 (RDF 2000)
Safety
PCB manufactured with a flammability rating of 94V-0 by UL recognized manufacturers
EMC
Conforming to EN 55022 (radio disturbance), IEC 61000-4-2 (ESD) and IEC 61000-4-4 (burst)
Software Support
Support of standard USB devices under Windows, VxWorks
Standard Models
02F212U00
3x USB 2.0 at front, -40..+85°C screened
