F211

Quad Fast Ethernet Interface Board

3U CompactPCI

Eingestelltes Produkt

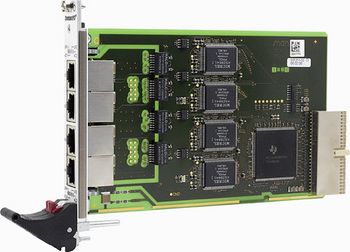

Configuration example: F211 with four RJ45 connectors

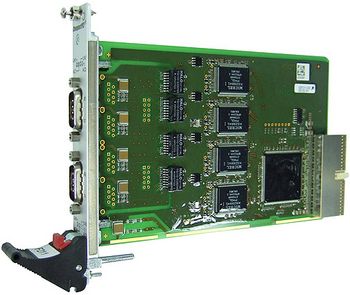

Configuration example: F211 with two D-Sub connectors

Hauptmerkmale

4 HP 32-bit/33-MHz CompactPCI
4 full-duplex or half-duplex channels
10BASE-T and 100BASE-TX physical layer
Fully integrated to comply with IEEE802.3u
1500 V isolation voltage
-40 °C to +85 °C

Beschreibung

The F211 is a single Eurocard CompactPCI networking controller that needs only one slot on the CompactPCI bus.

The four Fast Ethernet channels on one card occupy four individual MAC/IP addresses. They support full-duplex or half-duplex with 10Base-T and100Base-TX physical layers for distances up to 100 m. Featuring auto-negotiation, collision and link detection the maximum data transfer rate per channel is 200 Mbit/s with full-duplex operation.
The Ethernet channels on the F211 can be used individually as well as in redundant mode for high-availability systems by using some of the Ethernet ports in parallel.

The F211 has been designed for rugged and mobile applications with demand for multiple network controllers such as firewalls, gateways, routers,or as a fieldbus data concentrator based on industrial Ethernet.
The F211 is qualified for extended operation temperature and prepared for conformal coating for use in harsh and mobile environments.

Ethernet Interfaces

Four 10/100Base-TX interfaces
Four Micrel KSZ8841 controllers
IEEE802.3x support
- Full-duplex flow control
- Half-duplex back pressure collision flow control
Internal 8KB RX/TX FIFO buffers
Auto-negotiation and auto MDIX crossover
LinkMD cable diagnostics to determine cable length, cable faults and distance to fault
Media Access Control (MAC) addresses stored in onboard serial EEPROMs
4x2 status LEDs to signal link status, activity, speed and collision

Front Connections

4 Ethernet channels on four 8-pin RJ45 receptacle connectors
4 Ethernet channels on four D-Sub connectors, 2-slot front panel (8 HP) (on request)
4 Ethernet channels on two D-Sub connectors (shared), 1-slot front panel (4 HP) (on request)
4 Ethernet channels on four M12 receptacle connectors, 2-slot front panel (8 HP) (on request)

CompactPCI Bus

Compliance with CompactPCI Core Specification PICMG 2.0 R3.0
Peripheral slot
32-bit/33-MHz PCI-to-PCI bridge
V(I/O): +3.3V or +5V (Universal Board)

Electrical Specifications

Isolation voltage: 1000V between Ethernet links and 1500V between Ethernet links and shield or ground
Supply voltage/power consumption:
- +3.3V (-3%/+5%), 1A max.
MTBF: 875,481h @ 40°C according to IEC/TR 62380 (RDF 2000)

Mechanical Specifications

Dimensions: conforming to CompactPCI specification for 3U boards
Weight: 115g (standard version)

Environmental Specifications

Temperature range (operation):
- -40..+85°C
- Airflow: min. 10m³/h
- Conduction cooling (on request)
Temperature range (storage): -40..+85°C
Relative humidity (operation): max. 95% non-condensing
Relative humidity (storage): max. 95% non-condensing
Altitude: -300m to + 3,000m
Shock: 15g/11ms
Bump: 10g/16ms
Vibration (sinusoidal): 2g/10..150Hz

Safety

PCB manufactured with a flammability rating of 94V-0 by UL recognized manufacturers

EMC

Tested according to EN 55022 (radio disturbance), IEC 61000-4-2 (ESD) and IEC 61000-4-4 (burst)

Software Support

Drivers for Linux and Windows from Micrel
Driver for QNX from QNX
For more information on supported operating system versions and drivers see Software.
