F207
PCI-104 Carrier Board for 4 PCI-104 COMs
Hauptmerkmale
- 1 PCI-104 slot
- For stacking of up to 4 PCI-104 modules
- 8 HP CompactPCI with one PCI-104 module
- PCI-to-PCI bridge
- -40 °C to +85 °C

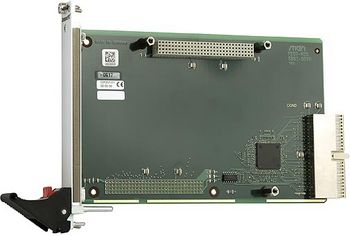

The F207 is a 3U CompactPCI bus card which provides a PCI-104 interface supporting up to four PCI-104 extension boards. An on-board PCI-to-PCI bridge provides a 32-bit PCI interface at the PCI-104 connector and a 32-bit/33-MHz interface to the CompactPCIbus. V(I/O) voltage is 3.3V on the local bus (5V on request) and 3.3V or 5V on CompactPCI.
Two different versions of the F207 offer two different connector positions where a PCI-104 module can be placed. The standard version supports the typical stacking method of PCI-104 devices and needs more than one slot of space in a CompactPCI system. Another version allows face-to-face assembly.
The F207 is fully compliant with railway standard EN 50155. For example, all components are specified for an operation temperature of -40°C to +85°C.
- One slot for PCI-104
- Up to four stacked PCI-104 modules
- 8HP solution with one PCI-104 module mounted
- Second front panel as needed (filler panel or with connector cut-outs)
- 32-bit/33-MHz, 3.3V or 5V (on request) V(I/O)
- Compliant with PCI Specification 2.2
- Compliance with CompactPCI Core Specification PICMG 2.0 R3.0
- Peripheral slot
- Only one slot required on 3U CompactPCI bus
- PCI2050 PCI-to-PCI bridge
- Max. clock frequency 33MHz
- 32-bit/33-MHz PCI-to-PCI bridge
- V(I/O): +3.3V or +5V (Universal Board)
- +5V (-3%/+5%), 40mA max. (without PCI-104 module)
- +3.3V (-3%/+5%), 60mA max. (without PCI-104 module)
- Dimensions: conforming to CompactPCI specification for 3U boards
- Front panel: aluminum with 1 handle
- Weight: 170g
- Temperature range (operation):
- -40..+85°C
- Airflow: min. 10m³/h
- Temperature range (storage): -40..+85°C
- Relative humidity (operation): max. 95% non-condensing
- Relative humidity (storage): max. 95% non-condensing
- Altitude: -300m to + 3,000m
- Shock: 15g/11ms
- Bump: 10g/16ms
- Vibration (sinusoidal): 2g/10..150Hz
