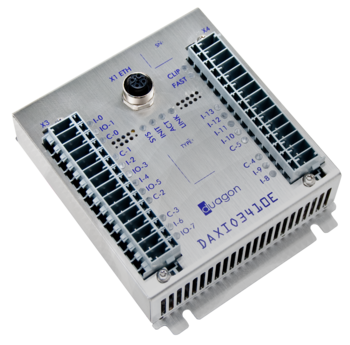

DAXIO3410E
Ethernet Remote I/O Module
Digital/Analog I/O Module with Multi-Protocol Ethernet Interface
Eingestelltes Produkt
Hauptmerkmale
- 10 digital inputs, 4 digital inputs/outputs
- 3 analog inputs
- Support for real-time Ethernet protocols e.g. EtherNet/IP – CIP, IPTCom, PROFINET, TRDP
- Coding pins for optional geographical addressing
- duagon web server for remote firmware updates
- Directly powered from the vehicle battery; supporting voltages ranges from 24 V up to 110 V
- -40 °C to +70 °C (+85 °C for 10 minutes) operating temperature
Beschreibung
The DAXIO3410E contains a versatile set of I/O channels and a Ethernet interface with different communcation stacks:
32 bit controller
4 digital in/out channels
16 digital input channels (6 digital inputs optionally used as code inputs)
analog inputs for voltage or resistive measurements.
All digital channels have LED status indicators.
Different module versions support nominal vehicle battery voltages from 24Vdc to 110Vdc.
It is designed for the harsh traction environment (-40°C to 70°C) and tested against EN 50155 / EN 50121.
Ethernet Interface Functionality
- General network support: IPv4
- Protocols: Interface 0: TCP/IP with UDP Sockets, IPTCom, EtherNet/IP - CIP, PROFINET, TRDP
- Web Maintenance: duagon Web Maintenance
- User configuration interfaces
- Command line interface (CLI)
- HTTP
- SSH
- FTP
- Telnet
Interfaces
- Code inputs: 8 × WAGO X-COM series, 15-pin, plug
- Ethernet: 1 × 10BASE-T/100BASE-TX, M12, D-coded, receptacle
- Digital I/O
- 10 × digital input, isolated, WAGO X-COM series, 15-pin, plug
- 4 × digital input or output, isolated, WAGO X-COM series, 15-pin, plug
- LED
- Status: initialization, system status
- Ethernet: activity, link
Analog Input Characteristics
- Input voltage range: 0 to 1 V DC or 0 to 10 V DC
- Channels: 3
- Analog input resolution: 24-bit (normal), 16-bit (fast)
Electrical Specifications
- Supply voltage
- 24 V DC to 36 V DC nom. (EN 50155)
- 48 V DC to 110 V DC nom. (EN 50155)
- Power consumption: 7 W max.
Mechanical Specifications
- Dimensions: (W) 127 mm, (D) 100 mm, (H) 51 mm
- Weight: 405 g
Product Compliance: Functions
Ethernet
- Ethernet: IEEE 802.3-2012
- Fast Ethernet (FE): IEEE 802.3u
- Port-based network access control: IEEE 802.1X
- Link Aggregation Control Protocol (LACP): IEEE 802.3ad
Product Compliance: Rail - Rolling Stock
- Operating temperature: -40 °C to +70 °C; 10 min @ +85 °C (EN 50155:2007, class TX, control cabinet)
- Storage temperature: -40 °C (EN 50155:2007) to +85 °C (EN 60068-2-2, Bb)
- Altitude: +1800 m max.
- Humidity: 75 % RH max. typ. yearly average, 95 % RH max. for 30 consecutive days/year (EN 60068-2-30)
- Shock: 50 m/s² / 30 ms (EN 61373:2010, vehicle body, cat. 1, class B)
- Vibration: 10 min @ 1.01 m/s² and 5 h @ 5.72 m/s² (EN 61373:2010, vehicle body, cat. 1, class B)
- Fire protection: EN 45545-2:2013 + A1:2015, HL3
- Useful life: 20 years (EN 50155:2007, class L4)
