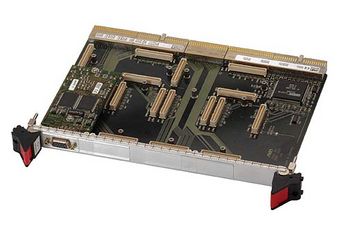

D202
PC-MIP Carrier Board
6U CompactPCI
Eingestelltes Produkt
Hauptmerkmale
- 1 CompactPCI bus slot
- 6 PC-MIP slots
Beschreibung
The D202 is a 6U PC-MIP carrier board for universal I/O on the CompactPCI bus. You can install up to six PC-MIPs on the D202, with four Type I/II and two Type I PC-MIPs.
All PC-MIPs provide I/O via the J3/J4/J5 CompactPCI connectors of the D202, while the four Type II modules are also accessible at the front panel.
Even equipped with six PC-MIPs, the D202 needs only one slot on the CompactPCI bus.
PC-MIPs are an ideal solution for flexible and fast CPU-related applications, which take advantage out ofthe internal PCI bus of the PC-MIPs.
CompactPCI Bus
- Compliance with CompactPCI Specification 2.0 R2.1
- Only one slot required on the 6U CompactPCI bus
- DECchip 21150 PCI-to-PCI bridge
- Target and/or initiator on PCI bus
- Max. clock frequency 33MHz
- Power supply 5V and 3.3V
- Compliance with PCI Specification 2.1
- 32-bit PCI data bus
- V(I/O): +3.3V or +5V (Universal Board)
PC-MIPs
- Up to six PC-MIP modules on one board
- Support of 2 Type I and 4 Type II modules
- Local 32-bit PCI bus
Peripheral Connections
- Via front panel
- Via CompactPCI J3/J4/J5
Electrical Specifications
- Supply voltage/power consumption:
- +5V (4.85V..5.25V), 5mA typ.
- +3.3V (3.2V..3.5V), 150mA typ.
- MTBF: 225,000h @ 50°C (derived from MIL-HDBK-217F)
Mechanical Specifications
- Dimensions: conforming to CompactPCI specification for 6U boards
- Front panel: aluminum with 2 handles
- Weight: 320g
Environmental Specifications
- Temperature range (operation):
- 0..+60°C
- Industrial temperature range on request
- Airflow: min. 10m³/h
- Temperature range (storage): -40..+85°C
- Relative humidity range (operation): max. 95% non-condensing
- Relative humidity range (storage): max. 95% non-condensing
- Altitude: -300m to + 3,000m
- Shock: 15g/11ms
- Bump: 10g/16ms
- Vibration (sinusoidal): 2g/10..150Hz
Safety
PCB manufactured with a flammability rating of 94V-0 by UL recognized manufacturers
EMC
Tested according to EN 55022 (radio disturbance), IEC 61000-4-2 (ESD) and IEC 61000-4-4 (burst)
Software Support
PC-MIP drivers for Windows, VxWorks, Linux, QNX, OS-9 as supported
