B202S
M-Module Carrier Board
3U VMEbus
Eingestelltes Produkt
Hauptmerkmale
- 2 M-Module slots
- 1 VMEbus slot
Beschreibung

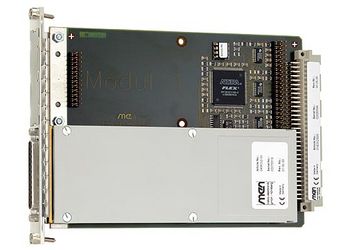

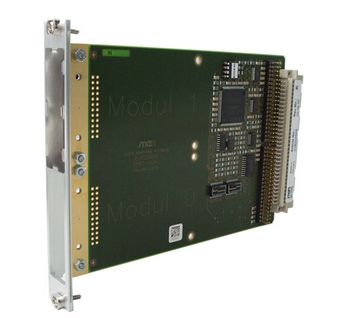

The B202S is an M-Module carrier board for universal peripheral input/output applications on the VMEbus. M-Modules are screwed tightly on the carrier board, but the board needs only one slot on the VMEbus. duagon's B202S offers VMEbus developers instant access to more than 70 different M-Modules for I/O in fields such as process I/O, measurement, instrumentation, motion control, communication, and development.
VMEbus
- Only one slot required on the VMEbus
- A24, A16, D16, D08 (E/O) slave
- D08(O) interrupter
M-Modules
- Two M-Module slots on the board
- M-Module characteristics: D08, D16, A08, INTA, INTC
Compatibility
- Full compatibility with A201S (4 M-Module slots)
- Functional compatibility with B201, B202 (2 M-Module slots) and A201N (4 M-Module slots)
Peripheral Connections
Via front panel
Electrical Specifications
- Supply voltage/power consumption: +5V (+5%, -0%), 320mA typ. (without M-Modules)
- MTBF: 580,000h @ 50°C (derived from MIL-HDBK-217F)
Mechanical Specifications
- Dimensions: 110mm x 155mm
- Front panel: aluminum without handles, cut-outs for front connectors of 2 M-Modules
- Weight: 102g (without M-Modules)
Environmental Specifications
- Temperature range (operation):
- 0..+60°C or -40..+85°C
- Airflow: min. 10m³/h
- Temperature range (storage): -40..+85°C
- Relative humidity range (operation): max. 95% non-condensing
- Relative humidity range (storage): max. 95% non-condensing
- Altitude: -300m to + 3,000m
- Shock: 15g/11ms
- Bump: 10g/16ms
- Vibration (sinusoidal): 2g/10..150Hz
Safety
PCB manufactured with a flammability rating of 94V-0 by UL recognized manufacturers
EMC
Tested according to EN 55022 (radio disturbance), IEC 61000-4-2 (ESD) and IEC 61000-4-4 (burst)
Software Support
- M-Module drivers for Windows, VxWorks, Linux, QNX, OS-9 as supported
- Basic board driver included in MDIS system package for the respective operating system
Accessories - Miscellaneous
05M000-15
Front-panel cover for M-Module cut-outs at front panels, snap-in, 10 pcs
05M000-17
25 mounting screw sets to fix M-Modules on carrier boards (3 different screw types, 50 pieces each)
