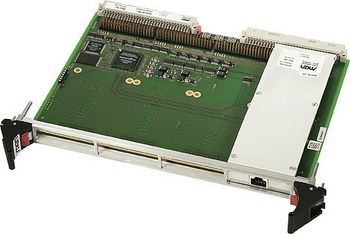

A203N
M-Module Carrier Board for 4 Mezzanine Cards
6U VME64
Eingestelltes Produkt
Hauptmerkmale
- 4 M-Module slots
- 1 VME64 slave slot
- 7-level interrupter
- -40 °C to +85 °C
Beschreibung
The A203N is an M-Module carrier board for universal I/O on the VMEbus, allowing high flexibility in applications such as process and motion control, measurement and instrumentation, communication or special-purpose tasks. The M-Modules are screwed tightly on the carrier board, and the board needs only one slot on the VMEbus.
The A203N is a VME64 slave card and supports four D16/D32 M-Modules with the signals either at the front or via rear I/O. An interrupt controller handles the M-Modules individually.
For rugged requirements the A203N is equipped with a stiffener front panel, allows a standard -40 °C to +85 °C operation temperature and is prepared for conformal coating.
Additionally, the A203N is prepared for DMA transfer support.
Mezzanine Slots
- Four M-Module slots
- Compliant with M-Module standard
- Characteristics: D08, D16, D32, A08, A24, INTA, INTC, TRIGO, TRIGI
- Prepared for DMA16, DMA32
- Prepared for D16 burst, D32 burst
Interrupt Controller
Interrupt handling individually for each M-Module
Peripheral Connections
- Via front panel
- Via 160-pin P2 connector (rear I/O)
VMEbus
- Only one slot required on the VMEbus
- Slave
- D08(EO):D16:D32:A16:A24:A32;BLT, prepared for D16BLT and D32BLT
- Interrupter D08(O):I(7-1)
Electrical Specifications
- Supply voltage/power consumption: +5 V (-3%/+5%), typ. 140 mA (without M-Modules)
- MTBF: 274 000 h @ 40 °C (derived from MIL-HDBK-217F)
Mechanical Specifications
- Dimensions: standard double Eurocard, 233.3 mm x 160 mm
- Front panel: stiffener panel, aluminum with 2 handles, cut-outs for front connectors of 4 M-Modules
- Weight: 350 g
Environmental Specifications
- Temperature range (operation):
- -40 °C to +85 °C
- Airflow: min. 10 m³/h
- Temperature range (storage): -40 °C to +85 °C
- Relative humidity range (operation): max. 95% without condensation
- Relative humidity range (storage): max. 95% without condensation
- Altitude: -300 m to +3000 m
- Shock: 15 g / 11 ms
- Bump: 10 g / 16 ms
- Vibration (sinusoidal): 2 g / 10 Hz to 150Hz
Safety
Flammability (PCBs): UL 94 V-0
EMC
Tested according to EN 55022 (radio disturbance), IEC 61000-4-2 (ESD) and IEC 61000-4-4 (burst)
Software Support
- M-Module drivers for Windows, VxWorks, Linux, QNX as supported
- Basic board driver included in MDIS system package for the respective operating system
Standard Models
01A203N00
M-Module carrier board, -40...+85°C with qualified components
Accessories - Miscellaneous
05M000-15
Front-panel cover for M-Module cut-outs at front panels, snap-in, 10 pcs
05M000-17
25 mounting screw sets to fix M-Modules on carrier boards (3 different screw types, 50 pieces each)
