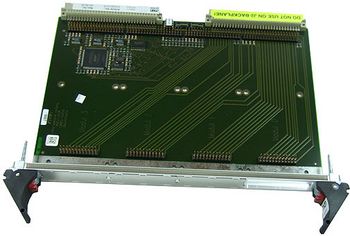

A201S
M-Module Carrier Board for 4 Mezzanine Cards
6U VMEbus
Eingestelltes Produkt
Hauptmerkmale
- 4 M-Module slots
- 1 VMEbus slot
- VMEbus slave A16/A24/D16, interrupter
- -40 °C to +85 °C (depending on model)
Beschreibung
The A201S is an M-Module carrier board for universal I/O on the VMEbus, allowing high flexibility in applications such as process and motion control, measuring and instrumentation, communication or special-purpose tasks.
The M-Modules are screwed tightly on the carrier board, but the board needs only one slot on the VMEbus. Please note that since all three rows of the P2 connector are used for user I/O, board models with this connector are not compatible with VME64 backplanes.
An interrupt controller handles the M-Modules individually. In VMEbus D16 systems the I/O signals of the M-Modules can be accessed from P2/J2 inside the rack.
Mezzanine Slots
- Four M-Module slots
- Compliant with M-Module standard
- Characteristics: D08, D16, A08, INTA, INTC
Interrupt Controller
- Interrupt handling individually for each M-Module
- Functional compatibility with A201N
Peripheral Connections
- Via front panel
- Via 96-pin P2 connector (rear I/O)
VMEbus
- Only one slot required on the VMEbus
- Models with P2 connector not compatible with VME64 backplanes (row B of the P2 connector is used for user I/O)
- Slave D08(EO):D16:A16:A24
- Interrupter D08(O)
Electrical Specifications
Supply voltage/power consumption: +5 V (-3%/+5%), 320 mA typ. (without M-Modules)
Mechanical Specifications
- Dimensions: standard double Eurocard, 233.3 mm x 160 mm
- Front panel: aluminum with 2 handles, cut-outs for front connectors of 4 M-Modules
- Weight: 220 g
Environmental Specifications
- Temperature range (operation):
- 0 °C to +60 °C or -40 °C to +85 °C
- Airflow: min. 10 m³/h
- Temperature range (storage): -40 °C to +85 °C
- Relative humidity range (operation): max. 95% without condensation
- Relative humidity range (storage): max. 95% without condensation
- Altitude: -300 m to + 3000 m
- Shock: 15 g / 11 ms
- Bump: 10 g / 16 ms
- Vibration (sinusoidal): 2 g / 10 Hz to 150 Hz
MTBF
430 000 h @ 50 °C (derived from MIL-HDBK-217F)
Safety
Flammability (PCBs): UL 94 V-0
EMC
Tested according to EN 55022 (radio disturbance), IEC 61000-4-2 (ESD) and IEC 61000-4-4 (burst)
Software Support
- M-Module drivers for Windows, VxWorks, Linux, QNX as supported
- Basic board driver included in MDIS system package for the respective operating system
Standard Models
01A201S09
M-Module carrier board, on-board 16MHz-supply, with P2, -40..+85°C
01A201S11
M-Module carrier board, on-board 16MHz-supply, without P2, -40..+85°C screened
01A201S18
M-Module carrier board, on-board 16MHz-supply, ELMA ejectors, without P2, 0..+60°C
Accessories - Miscellaneous
05M000-15
Front-panel cover for M-Module cut-outs at front panels, snap-in, 10 pcs
05M000-17
25 mounting screw sets to fix M-Modules on carrier boards (3 different screw types, 50 pieces each)
