0701-0093

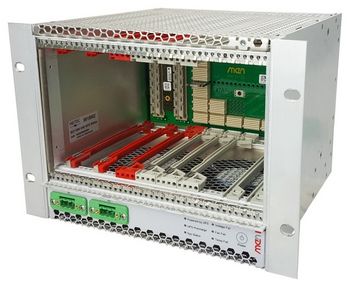

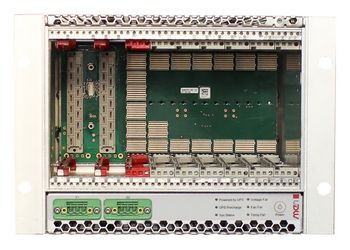

Serial Rackmount Enclosure, 7 Slots, with Fan/Shelf Controller
CompactPCI Enclosure
Eingestelltes Produkt
Hauptmerkmale
- Rack-mountable system
- 3U cards vertical
- IEEE 1101.10 compliance
- 4U / 40 HP system (incl. 1U fan tray)
- 7-slot CPCI-S.0 backplane
- 2 PSU slots
- CompactPCI Serial system slot
- 6 CompactPCI Serial (PICMG CPCI-S.0) peripheral slots to the right
- For duagon CompactPCI Serial SBCs
Beschreibung
40 HP Hybrid System
This compact 4U rack-mount enclosure is a basic 40 HP rack for CompactPCI Serial cards. It contains a 7-slot backplane with one CompactPCI Serial system slot and six peripheral slots.
Flexible Configuration
The rack is designed for use with MEN CompactPCI Serial system-slot SBCs and is equipped with a shelf controller offering basic management functionality such as system startup, shutdown, temperature and power supply monitoring or fan control.
Harsh Environments
The enclosure meets EMC requirements, making it a perfect choice for embedded applications in harsh environments. Ask us for completely configured, wired and tested systems!
General System Characteristics
- 2 slots for PSUs
- 1 CompactPCI Serial slot for CPU board
- 6 CompactPCI Serial peripheral slots
- Compliance with IEC 60297-3, IEC 60297-4
Shelf Controller
- PSU monitoring
- Shelf controller status monitoring
- Temperature monitoring
- Fan control
- Power button
- Status LEDs
- For more information see the AF2 data sheet
Mechanical Specifications
- Dimensions
- 4U, 40HP system
- 3U card vertical
- 210 mm x 175 mm x 225 mm max. without brackets and connectors
- Mounting
- Wall/flat surface
- Rack in 19" cabinet
- Two systems side-by-side to build a single 19" chassis
- Cooling Possibilities
- Natural convection
- Fan tray at system bottom (2 fans with an airflow of 1.5 m/s)
- Air Flow
- If bottom and top not covered, air flow from bottom to top outlets
- If bottom and top covered, air flow from bottom front to top front outlets (fan tray required)
- Protective coatings: backplane PCB conformally coated
Environmental Specifications
- Temperature range (operation): -40 °C to +85 °C according to EN 60068-2-1, EN 60068-2-2
- Temperature range (storage): -40 °C to +85 °C according to EN 60068-2-1, EN 60068-2-2
- Relative humidity (operation): according to EN 60068-2-30, non-condensing
- Relative humidity (storage): according to EN 60068-2-30
- Altitude: -300 m to +3000 m
- Shock: according to EN 61373 category 1 class B
- Vibration: according to EN 61373 category 1 class B
EMC Conformity
- EN 55022 class B (radiated and conducted emissions)
- EN 55024 (immunity)
Suited for duagon CPU Boards...
Accessories - Miscellaneous
0711-0022
Bonding kit to couple two half 19" racks to one 19" rack
0711-0023
Mechanical extension kit to integrate a half 19" system into a 19" rack
