Rackmount Enclosure, 7 Slots, without Fan/Shelf Controller
Hauptmerkmale
- Rack-mountable system
- 3U cards vertical
- IEEE 1101.10/11 compliance
- 4U / 40 HP system
- 7-slot hybrid backplane
- 1 PSU slot
- CompactPCI PlusIO system slot
- 4 CompactPCI Serial (PICMG CPCI-S.0) peripheral slots to the right
- 2 CompactPCI peripheral slots to the left
- For duagon CompactPCI PlusIO SBCs

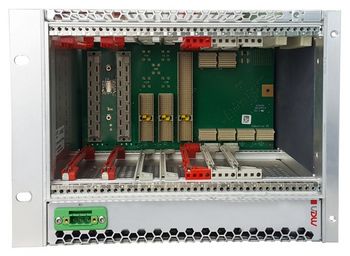

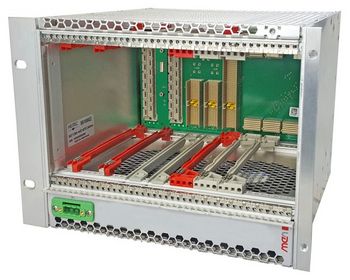

40 HP Hybrid System
This compact 4U rack-mount enclosure is a basic 40 HP system that allows the configuration with both CompactPCI Serial and CompactPCI cards. Being a hybrid system, it offers an uncomplicated and cost-effective migration solution from parallel 3U CompactPCI to serial CompactPCI Serial via the CompactPCI PlusIO standard.
The 7-slot hybrid backplane in this configuration does not need a bridge or an active logic. The three slots on the left are designed for 32-bit CompactPCI and rear I/O on P2. The four slots on the right are reserved for CompactPCI Serial. The CompactPCI PlusIO system slot is the third slot from the left. This hybrid system is designed for use with duagon CompactPCI PlusIO system slot SBCs.
Flexible Configuration
That way, the two CompactPCI peripheral slots and two CompactPCI Serial peripheral slots as well as 2 PCI or PCI Express slots can accommodate a large range of functions. If the 2 PCI or PCI Express slots are not required, two additional CompactPCI Serial peripheral slots are available.
The system supports the effortless integration of standard PCI or PCI Express cards via an adapter. The choice of modules is therefore not limited to CompactPCI cards.
Harsh Environments
The enclosure meets EMC requirements, making it a perfect choice for embedded applications in harsh environments. Ask us for completely configured, wired and tested systems!
- 1 slot for PSU
- 1 CompactPCI PlusIO slot for CPU board
- 2 CompactPCI peripheral slots
- 4 CompactPCI Serial peripheral slots or
- 2 CompactPCI Serial peripheral slots and 2 PCI/PCIe slots
- Compliance with IEC 60 297-3, IEC 60 297-4
- Half length PCI or PCI Express card
- Configurable: yes
- Possible in CompactPCI Serial peripheral slot: 8, 9
- Possible Configurations
- Universal 32-bit PCI card (3.3V/5V)
- PCI Express 2.0 card
- Dimensions
- 4U, 40HP system
- 3U card vertical
- max. 210 mm x 175 mm x 225 mm without brackets and connectors
- Mounting Possibilities
- Wall/flat surface
- Rack in 19" cabinet
- Two systems side-by-side to build a single 19" chassis
- Cooling Possibilities
- Natural convection
- Fan tray at system bottom
- Air Flow
- If bottom and top not covered, air flow from bottom to top outlets
- If bottom and top covered, air flow from bottom front to top front outlets (fan tray required)
- Temperature range (operation): 0°C to +50°C according to EN 60068-2-1, EN 60068-2-2
- Temperature range (storage): -40°C to +85°C according to EN 60068-2-1, EN 60068-2-2
- Relative humidity (operation): according to EN 60068-2-30, non-condensing
- Relative humidity (storage): according to EN 60068-2-30
- Altitude: -300 m to +3000 m
- Shock: according to EN 61373 category 1 class B
- Vibration: according to EN 61373 category 1 class B
- EN 55022 class B (radiated and conducted emissions)
- EN 55024 (immunity)
