D503 - Ethernet-to-MVB Gateway

Ethernet-to-MVB Gateway

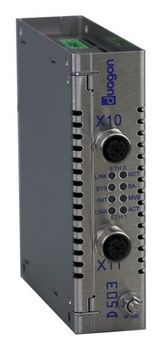

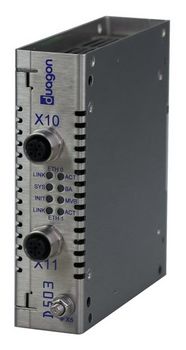

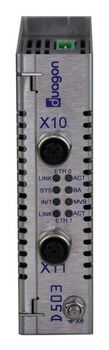

The D503 is an easy to configure Ethernet-to-MVB gateway. It provides a line redundant MVB interface as well as up to two 10/100 Mb/s Ethernet interfaces (ETH0 / ETH1). The Ethernet connectors comply with IEC 61076-2-101 (D-coded; female).

The Ethernet interfaces comply with IEEE 802.3 supporting 10BASE-T or 100BASE-TX, full duplex mode, auto-negotiation and auto MDI-X. Furthermore, the internal logic supports the "Ethernet on traction vehicles" standard IEC 61375-3-4.

Variety of Product Options

The optional second Ethernet interface ETH1 is intended to be used as a redundant line or as a separate channel for remote diagnostic and maintenance purposes.

The MVB interface complies with the TCN standard IEC 61375 and supports devices up to class 4 including process and message data. Optionally, the device may act as a bus administrator.

duagon's gateways are available with two variants – as platform to build a customer-specific application or as gateway with a standard configurable gateway application. The platform variant is accompanied by a development library that enables fast and efficient design of customer-specific applications.

The gateway is integrated in a stainless-steel housing that can be mounted on a DIN rail or using M4 screws. The device can be powered directly from the vehicle battery or by Power over Ethernet (PoE).

For Rolling Stock Environments

The D503 is designed for harsh rolling stock environment and complies with the EN 50155, EN 50121, and IEC 61373 standards: it withstands -40 °C to +70 °C ambient temperatures, complies with interruption voltage supply class S2, is coated against humidity and provides enhanced EMI and vibration robustness.

Merkmale

  • Proprietary high-performance Ethernet communication stack; optimised for cyclic process data.
  • Support for most common real-time Ethernet protocols including TRDP, IPTCom and EtherNet/IP – CIP.
  • Optional redundant Ethernet interface.
  • Support for MVB devices up to class 4, including bus administrator functionality, process and message data.
  • duagon web server for remote diagnostics and firmware updates; possibility to implement customer-specific web pages. Standard C development library to design customer-specific gateway application.
