G40A

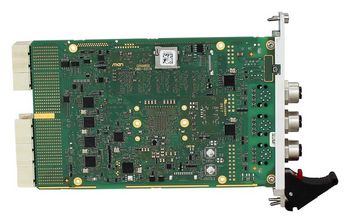

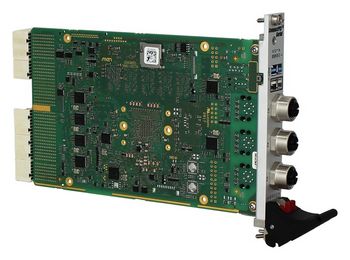

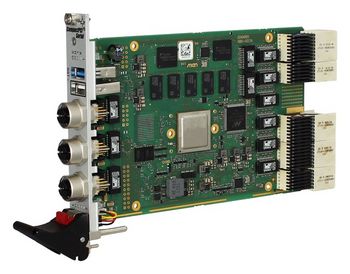

Embedded Single Board Computer with ARM Cortex A72
Hauptmerkmale
- NXP QorIQ, 4 cores
- Up to 8 GB DDR4 DRAM soldered, ECC
- Non-volatile SRAM
- Standard front I/O: 3 Gb Ethernet, 1 USB 3.2 Gen 1x1 host, 1 USB configuration port (RS232)
- Standard rear I/O: 2 PCIe lanes, 4 USB 2.0, 1 SATA, 8 Gb Ethernet
- PICMG CPCI-S.0 CompactPCI Serial
- -40°C to +85°C operating temperature
- Fanless operation possible
- Virtualization-ready
The G40A is only available within a project context and cannot be ordered as a single standard product.It will require adaptation to the final solution. Please contact duagon's sales team for assistance in your project.
Virtualization-Ready
The G40A is a high-performance 3U CompactPCI Serial multicore CPU platform equipped with the NXP ARM Cortex A72 LS1046A processor.
Featuring ARM core technologies and NXP data processing accelerators and I/O interfaces, G40A secures your application for the future by being full-virtualization ready - memory and I/O sub-systems can be virtualized - and available for 15 years from product introduction.
Wide Range of I/O, Network Connectivity
The G40A provides modern serial interface technologies such as PCI Express generation 3.0 (up to 8 Gbit/s), USB 3.2 Gen 1x1, SATA generation 3 (up to 6 Gbit/s). It is network connection ready by providing front Ethernet interfaces and an Ethernet switch. Nevertheless, compatibility with legacy interfaces is ensured with communications interfaces such as UART, I2C, SPI, etc.
Board Supervision and Management
The G40A is monitored using a duagon proprietary board management controller (BMC) which controls parameters such as voltages, temperature and provides a user configurable watchdog, making it ready for applications where functional safety is required. It supports low-power mode to enable Wake-on-LAN when the board's power supply is off.
Extensive Memory
The memory configuration of the G40A includes a fast DDR4 DRAM with ECC soldered to the board to guarantee optimum shock and vibration resistance. A non-volatile SRAM, an eMMC NAND Flash device and a microSD card can also be assembled offering space for user applications or usable as a local boot medium.
Perfect for Harsh Environments
With small 3U dimensions, G40A is perfectly suited for use in harsh environments, making it an ideal solution where space is limited but high processing capabilities are needed, e.g. in data collection applications on board trains. The board can be ordered in a version which enables fanless operation.
The G40A comes with a tailored heat sink. All components are soldered for protection against shock and vibration according to applicable railway standards. The G40A is also coated so that it can be used in humid and dusty environments.
- NXP ARM Cortex A72 LS1046A, 4 cores, 1.2 GHz
- NXP ARM Cortex A72 LS1046A, 4 cores, 1.4 GHz
- NXP ARM Cortex A72 LS1046A, 4 cores, 1.6 GHz
- System RAM
- Soldered DDR4, ECC support
- 1 GB
- 2 GB
- 4 GB
- 8 GB
- Boot Flash
- 32 MB
- Non-volatile SRAM
- 2 MB
- eMMC (soldered)
- microSD card
- SATA
- 1x SATA Revision 3.x, backplane
- USB
- 1x USB 3.2 Gen 1x1, Type A
- 1x USB-to-UART, Type A
- 4x USB 2.0, backplane
- PCI Express
- 2x PCIe 2.0, x1, backplane
- Ethernet
- 3x 1000BASE-T, M12, X-coded, receptacle
- 8x 1000BASE-T, backplane
- Serial
- 1x UART, backplane
- I2C
- 1x, up to 400 kbit/s
- SPI
- 1x, with two chip selects
- GPIO
- 10x, from processor
- 9x, from I/O expander
- Reset signals
- Carrier board reset output
- System reset input
- LED
- Status: board status
- Ethernet: link, activity
- CPCI hot-plug
- Board management controller
- Watchdog timer
- Temperature measurement
- Real-time clock with supercapacitor backup
- Compliance with CompactPCI Serial PICMG CPCI-S.0 Specification
- System slot
- +12 V (-5%/+5%)
- 3U, 4 HP
- Temperature range (operation)
- -40°C to +85°C, compliant with EN 50155:2007, class TX
- Temperature range (storage): -50°C to +85°C, compliant with EN 60068-2-1 - Ab, EN 60068-2-2 - Bb
- Cooling concept
- Depending on heat sink design
- Air-cooled, airflow 1.5 m/s min.
- Fanless operation, natural convection (on request, with special heat sink)
- Humidity: EN 50155:2007 (+25/+55 °C, 90-100 %)
- Shock: EN61373:2010
- Location: Vehicle body (Cat. 1; Class B)
- Vibration: EN61373: 2010
- Location: Vehicle body (Cat. 1; Class B)
- Electrical Safety
- EN 50155:2007
- EN 50153:2014
- EN 50124-1:2001 + A1:2003 + A2:2005
- Fire Protection
- EN 45545-2, hazard level HL3
- Radiated Emission
- EN 50121-3-2:2015
- Conducted Emission
- EN 50121-3-2:2015
- Immunity
- EN 50121-3-2:2015
