F403 - Railway I/O Board for Digital I/O

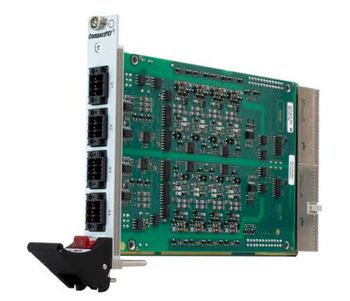

F403 3U CompactPCI Digital I/O Card for Railways

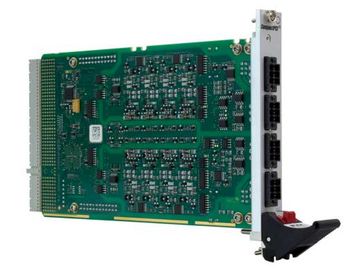

F403 3U CompactPCI Binary I/O card - back view

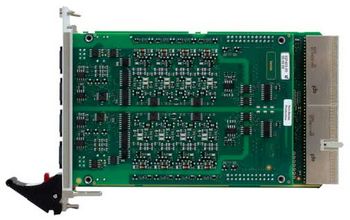

F403 3U CompactPCI Binary I/O card - side view

Digital I/O for Railway

The F403 is a digital I/O CompactPCI board especially designed for railway applications. The card is used for input/output of digital signals with different voltage levels and ground references. It supports 16 bidirectional binary input/output channels, which are separated into four optically isolated groups.

EN 50155 Compliance

Its voltage range from 14.4 VDC to 154 VDC and its current output of 1 A at 24 V complies with EN 50155, which makes the board ready for immediate use in train applications.

Safety Measures for Mobile Environments

The four front connectors are implemented by using spring cage terminal blocks causing only low wiring outlay and supporting fast installation.

The digital railway I/O supports all safety measures necessary for mobile environments like trains including voltage and temperature supervision and readback of outputs.

4HP 32-bit/33-MHz CompactPCI
16 bidirectional digital I/Os
Organized in 4 optically isolated groups
Connected via spring cage terminal blocks
Reduced wiring for fast installation
I/O voltage range 14.4 VDC to 154 VDC
Current output 1 A at 24 V
Driver support for all common operating systems
-40 °C to +85 °C
Conformal coating
EN 50155 compliant

Digital I/O

16 digital signals
- 4 optically isolated groups
- 4 channels for each group
The following I/O configurations are possible:
- 16 inputs/16 outputs
- Each channel is runtime configurable as input or output
Individual edge-triggered interrupts
High-side output switches
High output current: max. 1 A per channel at 24 V
Temperature and voltage supervision

Output Characteristics

Output voltage range
- Limits continuous: 0 VDC to +138 VDC
- Limits (duration <1s): 0 VDC to +154 VDC
Switching time for output change: min. 400 µs (rise time)/min. 600 µs (fall time)

Input Characteristics

Input voltage range
- Limits continuous: -0.7 VDC to +138 VDC
- Limits (duration <1s): -0.7 VDC to +154 VDC
Input voltage of external supply voltage
- Can be configured individually for each group
- Nominal: +24 VDC to +110 VDC
- Limits continuous: +16.8 VDC to +138 VDC
- Limits (duration <1s): +14.4 VDC to +154 VDC
Switching threshold: 40% (+15%/-15%) of external supply voltage

Front Interfaces

4 spring cage terminal blocks

CompactPCI Bus

Compliance with CompactPCI Core Specification PICMG 2.0 R3.0
Peripheral slot
32-bit/33-MHz PCI Bus, or
32-bit/66-MHz PCI Bus
V(I/O): +3.3 V
J2 connector with geographical addressing for distinguishing boards in a system with several boards

Electrical Specifications

Isolation voltage:
- 1500 VAC between isolated side and digital side
- 1500 VAC between the channels
Supply voltage/power consumption from CompactPCI:
- +5V (+5%/-5%), 130 mA typ.

Mechanical Specifications

Dimensions: 3U, 4 HP
Weight: 292 g
Cooling
- Air cooling, airflow 1.0 m/s

Product Compliance: Rail - Rolling Stock

Compliance level: This product is prepared for use in EN 50155 systems. Some parameters are system-dependent and are specified on system level.
Operating temperature: -40 °C to +85 °C (EN 50155:2021, Tmax/PCB = +85 °C; designed for use in OT4+ST2 systems)
Equipment location
- EN 50155:2021, location 1, closed electrical operating area
- EN 50155:2021, location 2, cabin and interiors
Rapid temperature variations: EN 50155:2021, class H1, no requirements
Storage temperature: -40 °C (EN 50155:2021) to +85 °C (EN 60068-2-2, Bb)
Altitude: +2000 m max. (EN 50125-1:2014, class AX)
Pollution degree: EN 50124-1:2017, class PD2
Shock: 30 ms @ 50 m/s² (EN 61373:2010/AC:2017-09, vehicle body, cat. 1, class B)
Vibration: 10 min @ 1.01 m/s² (functional) and 5 h @ 5.72 m/s² (long-life) (EN 61373:2010/AC:2017-09, vehicle body, cat. 1, class B)
Power supply: General compliance with power supply requirements of EN 50155:2021
Electrical safety
- EN 50155:2021
- EN 62368-1:2016
Fire protection: EN 45545-2:2020, EL9, HL3
EMC emission: EN 50121-3-2:2016 + A1:2019
EMC immunity: EN 50121-3-2:2016 + A1:2019
Protective coatings: EN 50155:2021, class PC2 (Any PCB protected on both sides)
Useful life: 10 years (EN 50155:2021, class L2)

Reliability

MTBF: 418 612 h predicted @ 40 °C according to IEC/TR 62380 (RDF 2000)

Software Support

The F403 is supported by standard OS UART drivers
A demo application for Linux, Windows and VxWorks is available under Downloads.
