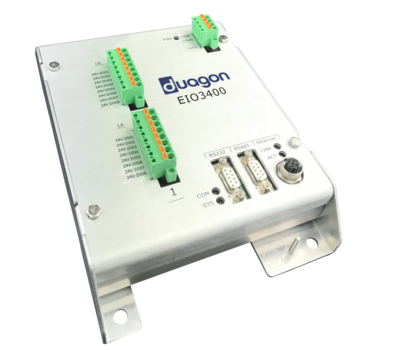

EIO3400 - EIO I/O Expansion Module

The EIO3400 has been designed using PC3 Series modules that have been proven to survive the rigors required for Railway Vehicles including:

  • Electrical surges and transients of EN 50155 / EN 50121-3-2.

  • Shock and vibration in accordance with EN 50155 / EN 61373.

  • Operating temperature range of -40°C to +70°C and relative humidity 5% to 95% non-condensing.

Features

  • 10/100 Mbps Wired Ethernet in accordance with IEEE 802.3 via M12 D-Code connector.
  • One RS232 serial communications port.
  • One isolated RS485 serial communications port.
  • 8 Digital Inputs 5mA @ 24VDC.
  • 8 Digital Outputs 1A @ 24VDC.
  • Suitable for nominal battery voltages of 24VDC in accordance with EN 50155.
  • Operating temperature range: -40°C to +70°C (+85°C for 10 minutes).
  • Connections for RS232 and RS485 via DB9 female connectors.
  • Connections via cage clamp plug socket connectors.
  • Conformal Coating.
  • EN 50155 Compliant.
